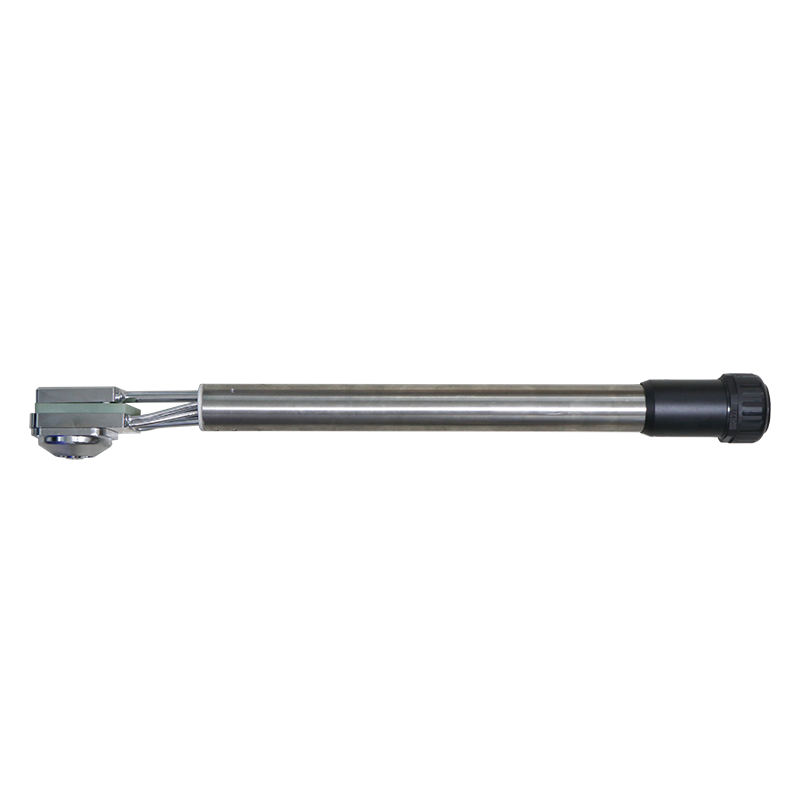

Plasma Bore Welding Torch DNPT50019-HQ

500A plasma bore welding torch is a professional welding tool designed for high-precision, high-strength welding applications, suitable for all kinds of metal material bore, narrow space and complex structural welding operations. The torch adopts advanced plasma arc welding technology with extremely high energy density and heat control capability, which can ensure the strength and denseness of the weld while significantly reducing heat input and avoiding deformation of the workpiece.500A plasma bore torch is widely used in the aerospace, military, energy equipment, chemical containers, automotive manufacturing and precision machinery industries, which is the ideal choice for high-quality welding tasks.

Send email to us

Product Detail

Product Tags

Product Advantages

Plasma Bore Welding Torch DNPT50019-HQ 3

The 500A plasma bore welding torch has the advantages of high current output, compact structure and precise plasma arc control, which can efficiently complete high-quality welding of thick-walled workpieces and small-diameter bores. Its modular design is easy to maintain and quick to replace parts, and it supports both air and water cooling to meet the needs of long-time operation. The torch is highly compatible and can be flexibly integrated into a variety of automation systems, making it an ideal solution for complex structures and precision welding scenarios.

Product Parameter

500A Plasma Bore Welding Torch
Product Parameters and Models	DNPT50019-HQ
Tungsten pole	8.0mm
Current range	100-450A
Copper nozzle cooling method	Direct water cooling
Ionized gas	2.0-5.0L/min
Protective gas	10-20L/min
Powder feed gas	2-6L/min
Copper nozzle powder runner	Two way
Powder feeding capacity	0-4KG/h
Welding torch return water flow	5.0L/Min
Granularity	100-270 mesh

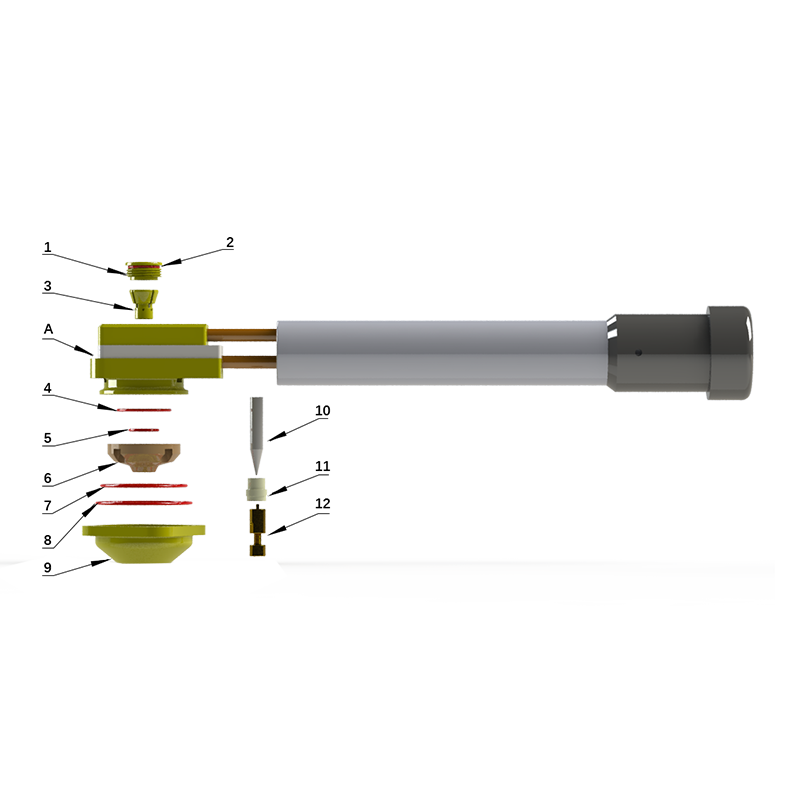

Product Structure

Plasma Bore Welding Torch DNPT50019-HQ 4

Serial Number	Product Name	Material Code	Product Dimension
A	500A plasma bore welding torch (model 19)	D2110000	/
1	500A Bore Copper Rear Cap	D2110500	23*11
2	500A Bore Rear Cap Rubber Ring	D2110510	22*2
3	500A Bore Tungsten Clamp	D2110300	18*18
4	500A bore copper nozzle large rubber ring	D2100700	34*1.9
5	500A bore copper nozzle small rubber ring	D2100800	19*1.9
6	500A bore copper nozzle	D2110110	45*17.5
7	500A bore protector small rubber ring	D2110900	54*1.9
8	500A bore protector large rubber ring	D2111000	60*1.9
9	500A bore protection cover	D2110600	62*24
10	500A bore tungsten needle	D2110400	8*48
11	500A Bore Centering Ring	D2110200	13*14
12	Tungsten pole calibrator (universal)	D2000100	10*32
