Quick answer: PDC drill bit laser cladding is a controlled surface-repair process used to restore worn gauge pads, blade areas, and other wear zones on PDC bit bodies. A focused laser melts the substrate and a wear-resistant alloy powder together to form a metallurgically bonded overlay with low dilution and tightly controlled heat input. This makes it particularly useful where dimensional accuracy and thermal control matter, including zones near PDC cutter pockets. For larger, less heat-sensitive wear areas, PTA hardfacing can be a more productive alternative.

Why PDC Drill Bit Bodies Fail Before the Cutters Do

PDC (polycrystalline diamond compact) bits are valued for high penetration rates in shale, limestone, and sandstone formations. Some PDC bits are pulled and scrapped before the diamond cutters reach the end of their useful life, because the steel or matrix body has lost gauge, or the blades have suffered excessive erosion, to the point where the bit can no longer hold hole diameter or protect the cutters from impact loading.

Common PDC bit body wear and damage modes in the field:

•  Gauge wear — the outer diameter of the gauge pads erodes from continuous contact with the borehole wall, leading to under-gauge holes and directional control problems.
•  Erosive wear from drilling fluid — high-velocity mud loaded with cuttings abrades blade faces, nozzle areas, and junk slots, especially at high flow rates or in sand-laden applications.
•  Localized wear near cutter pockets — the zone immediately surrounding each PDC cutter can become a critical area where erosion progressively reduces the material supporting the cutter pocket, sometimes while the cutter itself is still serviceable.

Once body geometry is compromised, the bit is no longer repairable even if most of the diamond cutters are still serviceable — a costly outcome given the sunk cost in a single PDC bit. This is the core economic reason bit manufacturers and rebuild shops invest in hardfacing rather than scrapping worn bodies.

PDC Bit Wear Problems at a Glance

PDC Bit Problem	Hardfacing Objective	Main Process Consideration
Gauge wear	Restore/maintain gauge diameter	Laser for localized/tight-tolerance restoration; PTA for larger-area buildup where heat sensitivity is lower
Blade top erosion	Restore wear-resistant profile	PTA usually more efficient over full blade length
Cutter-pocket surrounding wear	Protect cutter support without disturbing the braze bond	Laser preferred — heat control is the deciding factor
Shirttail wash	Restore wear surface, junk slot geometry	PTA often suitable, less heat-sensitive
Localized erosion pockets	Precise, small-volume material replacement	Laser cladding
Under-gauge, structurally sound body	Full gauge restoration to spec	Laser or PTA depending on required buildup thickness

Hardfacing vs. Cladding vs. Coating vs. Overlay: What's the Difference for PDC Bits?

These terms get used loosely in the field, and mixing them up can lead to the wrong process being specified. For PDC bit repair work, the distinctions matter:

Term	What It Means	Relevance to PDC Bits
Hardfacing	A broad term used for wear-resistant surface deposition; in PDC bit repair, it commonly refers to fused hardfacing processes such as PTA or laser cladding	The general term applied to work on gauge pads, blades, and shirttail
Cladding	A hardfacing deposit that forms a full metallurgical bond with the base metal	What both PTA and laser processes produce — the layer is fused, not just mechanically attached
Weld overlay	Another term for the same metallurgically bonded deposit, more common in pressure-vessel and pipe contexts	Functionally the same as cladding for PDC bit purposes; the term is more common outside drilling
Thermal spray coating	A sprayed metallic or ceramic layer with a largely mechanical, not metallurgical, bond	Rarely used on PDC bit wear surfaces — the bond strength typically isn't sufficient for the impact loading a bit experiences downhole
PTA / laser cladding	Specific heat sources used to produce a cladding layer	The process choice within cladding — see the comparison above

The practical takeaway: in PDC bit repair, "hardfacing," "cladding," and "weld overlay" are often used to describe closely related, metallurgically bonded wear-resistant deposits, although the terms can carry different meanings in other industries or formal specifications. If a spec mentions thermal spray or a coating without a fusion bond, that's a different (and generally less suitable) approach for the impact and abrasive loading a PDC bit body sees in service.

Why Laser Cladding Is Well Suited to PDC Bit Hardfacing

This section covers the underlying technical reason laser cladding fits PDC bit repair; the next section covers the practical question of when to choose it over PTA for a given zone.

Hardfacing (also called cladding or surfacing) is the deposition of a hard, wear-resistant alloy layer onto a base component using a welding-based process. For PDC bits, it is applied to:

1.Gauge pads — to maintain hole diameter over the working life of the bit
2.Blade tops and leading edges — to resist erosion from cuttings-laden fluid
3.Cutter-pocket surrounds — the highest-value zone to protect, since damage here undermines cutter support directly
4.Shirttail and junk slot areas — to protect against abrasive wash and impact

Laser cladding's defining advantage is heat input control, and that happens to line up closely with what PDC bit geometry actually needs. The diamond table and the braze joint holding each PDC cutter in its pocket are thermally sensitive — excessive heat during a repair can degrade the braze bond or, in more severe cases, affect the diamond table itself. A laser's tightly focused energy input and small heat-affected zone can allow deposition much closer to cutter-pocket boundaries under properly controlled process conditions, reducing thermal exposure to the surrounding braze interface compared with a higher-heat-input arc process.

Beyond thermal control, laser cladding also offers:

•  Very low dilution — minimal mixing between the alloy overlay and the base metal, which keeps the deposited alloy closer to its intended composition and hardness
•  Fine dimensional control — thin, precise layers that hold tight gauge tolerances without requiring heavy post-clad machining
•  Ability to clad complex, curved geometry — gauge pad contours and blade profiles that are difficult to reach evenly with a wider arc process

This combination — low heat input near sensitive cutter interfaces, low dilution, and precision on complex geometry — is why laser cladding can be particularly attractive for high-value zones where thermal control and dimensional precision are critical, even though it is not the only process used in a full rebuild. Which zones actually warrant it still depends on the specific bit's body material, existing damage, braze system, and required buildup thickness — not a blanket rule.

When Laser Cladding Is the Right Choice — and When PTA Cladding Makes More Sense

With the technical rationale established, this section is about the procurement and process-selection question: which zones on a given bit actually call for laser versus PTA. Choosing between the two isn't about which process is "more advanced." It comes down to how close the work is to the diamond cutters, how tight the dimensional tolerance needs to be, and how many bits need to go through the process.

Laser cladding fits best when:

• The zone being clad is close to a cutter pocket or brazed interface, where heat input must be minimized
• Dimensional accuracy is critical and heavy post-clad machining should be avoided
• The overlay needs to be thin and precisely controlled, rather than a thick, high-volume deposit
• The component is high-value enough to justify the higher per-part processing cost

PTA (Plasma Transferred Arc) cladding is worth considering when:

• The wear area is large — full gauge pad OD, full blade tops, shirttail — and deposition rate matters more than fine precision
• The deposition zone has enough clearance from cutter pockets to tolerate higher heat input
• Production throughput across many bits is the priority, and powder economy matters at volume

In practice, many rebuild operations use both processes on the same bit: laser cladding for the precision zones around cutter pockets and gauge edges, PTA cladding for the larger, less heat-sensitive areas like full blade tops and shirttail.

For the general engineering framework behind this decision — independent of PDC bits specifically — see our guide on PTA hardfacing vs. laser cladding.

Steel-Body vs. Matrix-Body PDC Bits: Does the Cladding Strategy Change?

The two body types are not interchangeable when it comes to hardfacing strategy, and this matters even more for laser cladding, where heat input near the substrate interface is part of the process's whole value proposition.

Steel-body bits are machined from alloy steel. Gauge wear, blade erosion, and shirttail wash are the dominant issues. Steel substrates generally provide a more conventional metallurgical basis for welding-based repair, although the actual process window still needs to be established for the specific bit material and geometry. Steel-body bits are often more straightforward candidates for repeat welding-based repair, while matrix-body repairs require more case-specific evaluation.

Matrix-body bits are made from a tungsten carbide matrix infiltrated with a binder alloy, offering higher inherent erosion resistance but a fundamentally different metallurgy. Laser cladding onto matrix material still requires care: the matrix has different thermal expansion behavior than the overlay alloy, and depending on the specific bit design, cutter attachment and pocket construction may differ from steel-body designs in ways that affect how heat and stress are managed near the interface. The bond between clad layer and matrix substrate needs to be evaluated differently than a steel-to-steel bond — even with laser cladding's inherently lower heat input. Repairability of matrix-body bits is generally more limited, and cladding decisions should be made case-by-case rather than as a routine rebuild step. The feasibility of repair should therefore be established from the actual matrix composition, damaged geometry, cutter attachment method, and a qualified repair procedure — rather than from body type alone.

Alloy Selection: Match the Overlay to the Wear Mechanism, Not the Formation Alone

Alloy selection should start from the dominant wear mechanism on the specific bit and zone, not from a blanket assumption that "harder is always better."

Wear condition	Preferred overlay direction
Severe abrasive wear (sand, cuttings, hard formation particles)	Tungsten carbide-reinforced composite, fine particle size for laser deposition
Zones immediately adjacent to cutter pockets	Fine-particle overlay with tightly controlled, minimal heat input
High-temperature exposure (turbine-driven or geothermal applications)	Cobalt-based alloy systems
Corrosive drilling environment (H2S, CO2, saline formation fluids)	Nickel-based, corrosion-resistant alloy
Large, less heat-sensitive wear areas (full blade tops, shirttail)	Coarser carbide composite, often better suited to PTA deposition rate

One point worth emphasizing for anyone specifying an overlay: do not default to the hardest, most carbide-loaded overlay simply because the formation is abrasive. Excessive carbide loading increases the brittleness of the deposit, which can make it less tolerant of the impact and thermal cycling a PDC bit actually experiences downhole. The right overlay balances wear resistance against toughness for the specific combination of abrasion and impact the bit will see — not abrasion resistance alone.

Dilution matters here too, and it's one of laser cladding's genuine strengths: because the process runs with a small, controlled melt pool, less base-metal iron mixes into the deposit than with higher heat-input processes. That keeps the resulting alloy chemistry and hardness closer to what was specified — but it doesn't remove the need for parameter discipline (laser power, powder feed rate, travel speed), since dilution and bond quality still depend on those being correctly matched to the alloy and geometry.

For the broader framework behind matching overlay alloy to failure mode — not specific to PDC bits — see Select the Right Hardfacing Alloy for Wear Protection.

PDC Bit Laser Cladding Process: Step by Step

The sequence that holds up in practice is inspect → identify the wear mechanism → assess body geometry and construction → select the alloy → select the process — not the other way around. Picking laser or PTA before inspection, and then forcing the repair to fit that choice, is one of the more common ways a rebuild goes wrong.

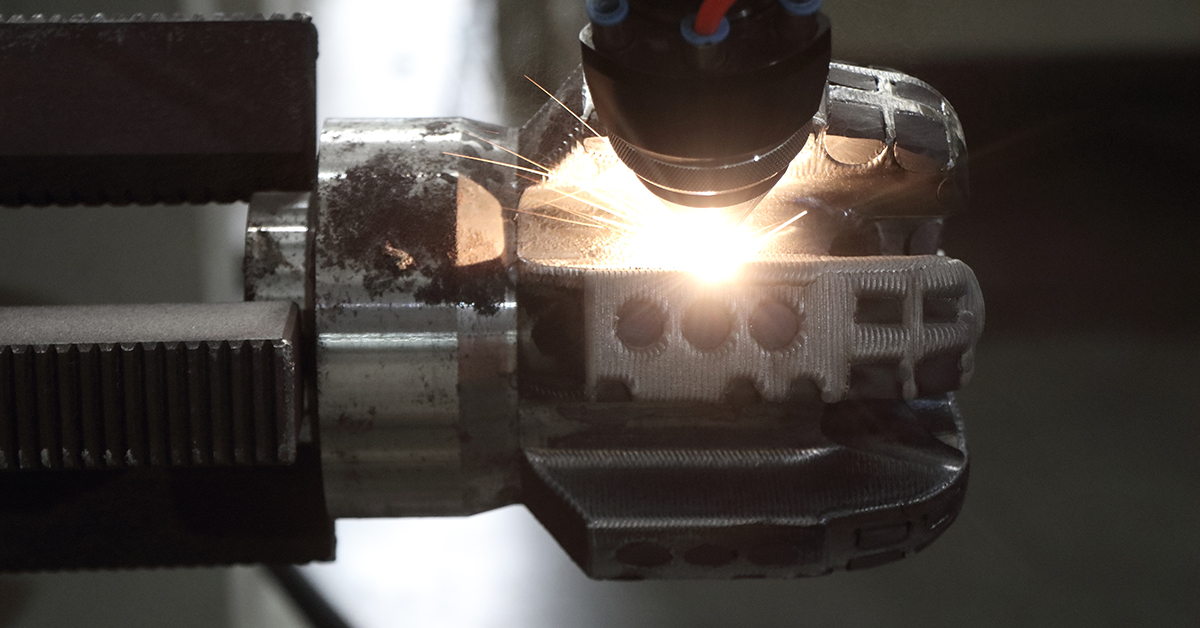

1.Inspection and failure analysis — identify which zones (gauge, blade top, cutter surrounds, shirttail) show wear and to what depth, and confirm cutter pockets are still structurally sound before committing to a rebuild.
2.Body type and geometry check — confirm steel-body vs. matrix-body construction, and map blade, gauge, and cutter-pocket geometry against the wear found in step 1.
3.Surface preparation — clean and, where needed, machine the worn area to a uniform profile so the cladding layer bonds consistently.
4.Alloy selection — match overlay chemistry and powder particle size to the dominant wear mechanism and to the precision requirements of the specific zone.
5.Process selection — decide which zones need laser cladding's precision versus which can be handled with a higher-deposition-rate process like PTA, based on the geometry and alloy chosen above.
6.Thermal boundary planning around cutters — even with laser cladding's low heat input, define a controlled thermal boundary near PDC cutter pockets and brazed interfaces before deposition begins. This step is an important part of protecting the braze bond from excessive thermal exposure, and it's the one most likely to be skipped in a rushed rebuild.

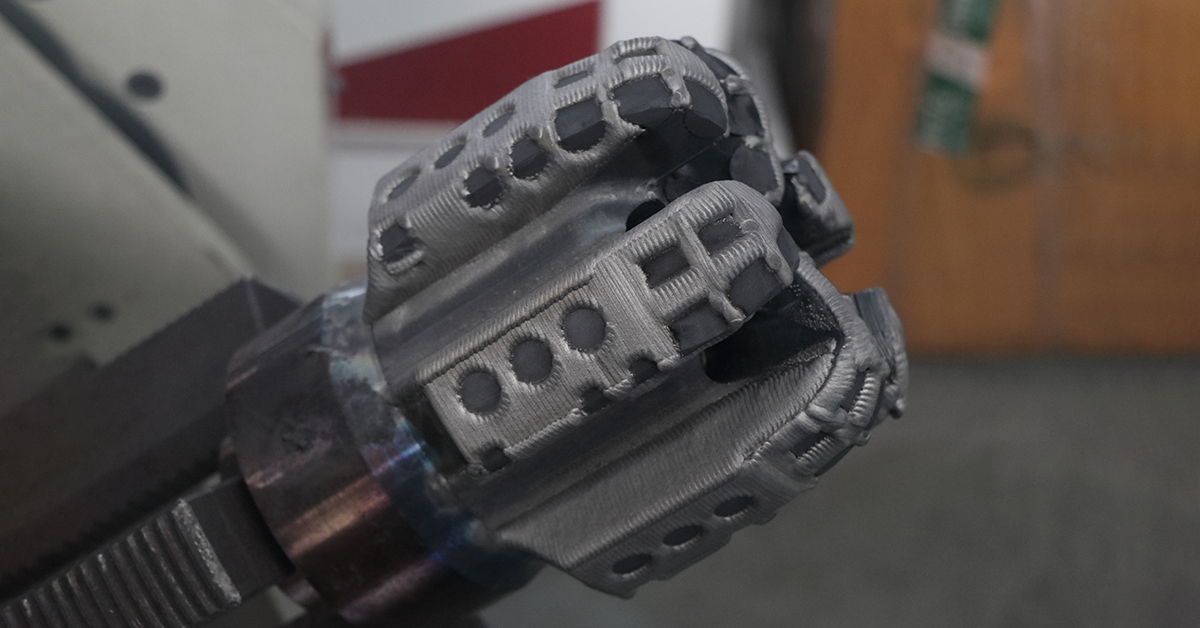

7.Cladding deposition — apply the alloy layer in controlled passes, monitoring dilution and layer thickness against target hardness and dimensional tolerance for the intended formation.
