Hardfacing Alloy Selection Should Begin With Failure Analysis
Selecting a hardfacing alloy is not a material comparison exercise.
In practical wear applications, the most expensive mistakes usually occur before welding begins — when the failure mechanism is incorrectly identified.
A component rarely fails because the deposited layer simply lacks hardness. More often, the selected alloy does not match the actual combination of:
• Wear mechanism
• Mechanical loading
• Operating temperature
• Corrosive environment
• Base material condition
• Required service interval
During wear failure evaluations, one recurring selection error is choosing an alloy based on a single property, such as maximum hardness, while ignoring the complete operating condition.
For example:
A carbide-rich alloy may perform exceptionally well in severe abrasion, but the same material may crack prematurely when exposed to repeated impact loading.
A corrosion-resistant alloy may protect against chemical attack, but may not provide sufficient resistance against aggressive particle erosion.

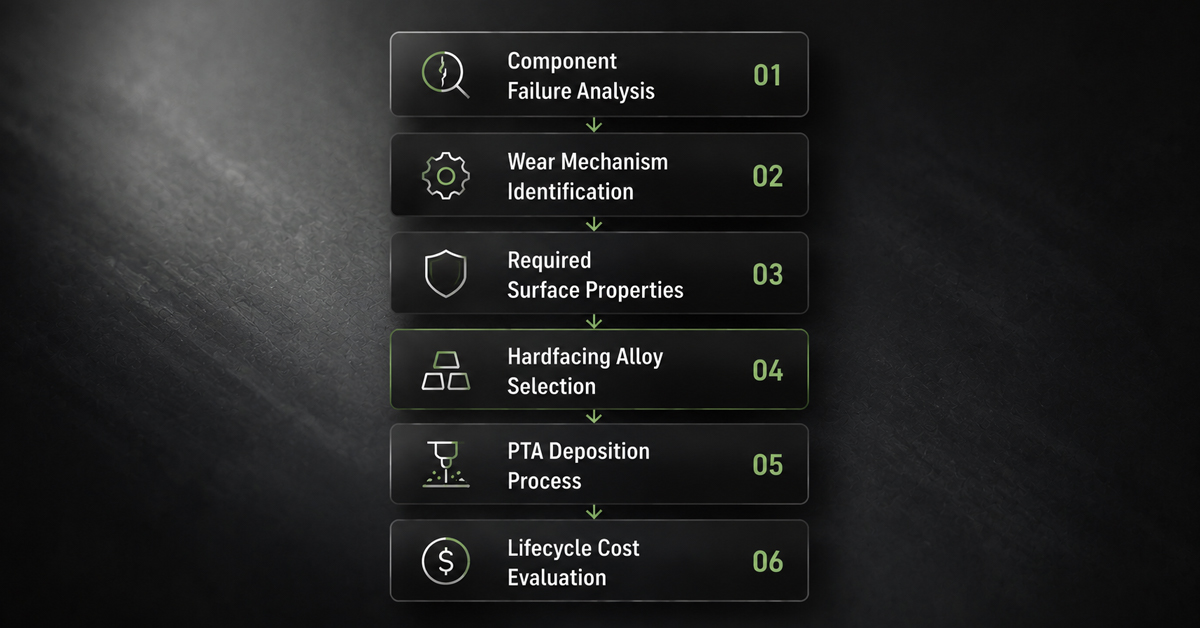

The correct engineering approach is:
The objective is not selecting the hardest available alloy.
The objective is selecting the alloy that provides the most reliable performance under actual service conditions.

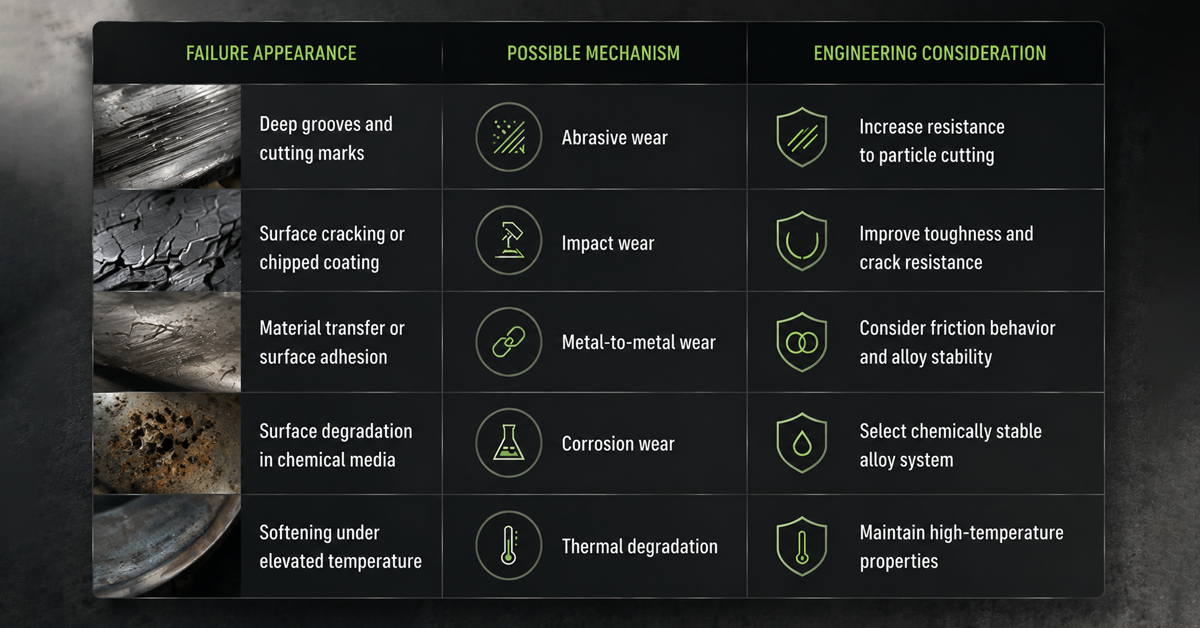

Understanding the Real Cause of Wear Failure
The Same Component Can Fail for Different Reasons
Two components with similar appearance may require completely different hardfacing solutions.
A worn surface should be evaluated based on failure characteristics rather than visual inspection alone.
The key engineering question is:
What mechanism is removing material from the surface?
The answer determines the required alloy characteristics.
How to Choose the Right Hardfacing Process for Different Wear Mechanisms?
Hardness vs Toughness: Why the Hardest Alloy Is Not Always the Best Choice
Wear Resistance Requires the Right Property Balance
Hardness is an important indicator, but it does not represent complete wear performance.
A coating must withstand the actual forces acting on the component.
The relationship can be summarized as:
|
Operating Condition |
Required Property |
Risk of Wrong Selection |
|
Severe abrasion |
Hard phases and wear resistance |
Rapid material loss |
|
Heavy impact |
Toughness and crack resistance |
Coating fracture |
|
Corrosion environment |
Chemical stability |
Surface degradation |
|
High temperature |
Thermal stability |
Loss of mechanical properties |
|
Combined wear |
Balanced properties |
Short service life |
During alloy selection, engineers often face a trade-off:
Higher hardness
↓
Better abrasion resistance
but
Lower toughness
↓
Higher cracking sensitivity
The correct solution depends on which failure mechanism dominates.
Hardfacing Alloy Selection by Industrial Application
Different components experience different operating conditions.
The alloy selection should follow the component function and failure mode.
|
Component Application |
Dominant Wear Condition |
Typical Alloy Direction |
|
Screw flights and screw conveyors |
Abrasion from bulk materials |
Tungsten carbide reinforced alloy |
|
Valve seats |
Erosion, corrosion, repeated contact |
Nickel-based or cobalt-based alloy |
|
Pump components |
Corrosion combined with wear |
Nickel-based alloy systems |
|
Crusher components |
Impact plus abrasion |
Tough wear-resistant alloy |
|
High-temperature components |
Heat exposure and wear |
Nickel-chromium alloy |
This application-based approach avoids selecting materials only from laboratory hardness values.
Selecting Alloys for Abrasive Wear Applications
When Particle Cutting Is the Main Failure Mechanism
Severe abrasive environments are common in:
• Mining equipment
• Cement processing
• Bulk material handling
• Screw conveying systems
Typical surface damage includes:
• Cutting grooves
• Material removal
• Loss of component geometry
The engineering priority is usually:
• High wear resistance
• Stable hard phases
• Strong metallurgical support from the matrix
Tungsten carbide reinforced hardfacing alloys are widely considered for these applications because carbide phases provide strong resistance against abrasive particles.
However, carbide selection must consider operating conditions.
If the component also experiences repeated impact, excessive carbide content may increase brittleness and create cracking risk.
Selecting Alloys for Impact and Combined Wear Conditions
Why Toughness Becomes the Limiting Factor
Impact wear creates a different failure environment.
Typical examples:
• Crusher parts
• Heavy equipment components
• High-load industrial machinery
The coating must absorb mechanical energy without:
• Cracking
• Spalling
• Detachment from the base material
In these applications, a slightly lower hardness alloy with better toughness may outperform a harder but more brittle material.
The engineering decision is not:
"Which alloy is harder?"
The correct question is:
"Which alloy survives the actual loading condition?"
Nickel-Based, Cobalt-Based and Carbide-Reinforced Alloy Selection
Nickel-Based Hardfacing Alloys
Nickel-based alloy systems are commonly selected where wear resistance must be combined with corrosion resistance.
Typical considerations:
• Chemical exposure
• Moderate wear conditions
• Surface sealing requirements
Applications include:
• Valves
• Pumps
• Chemical equipment
Cobalt-Based Hardfacing Alloys
Cobalt-based alloys are often considered where the component requires:
• High-temperature wear resistance
• Metal-to-metal wear resistance
• Surface stability under repeated contact
Applications include:
• Valve sealing surfaces
• High-temperature components
Tungsten Carbide Reinforced Alloys
Carbide-reinforced systems are commonly selected for severe abrasion.
Typical applications:
• Screw conveyors
• Mining equipment
• Wear-resistant surfaces exposed to hard particles
The limitation is that extreme abrasion resistance does not automatically mean resistance to impact failure.

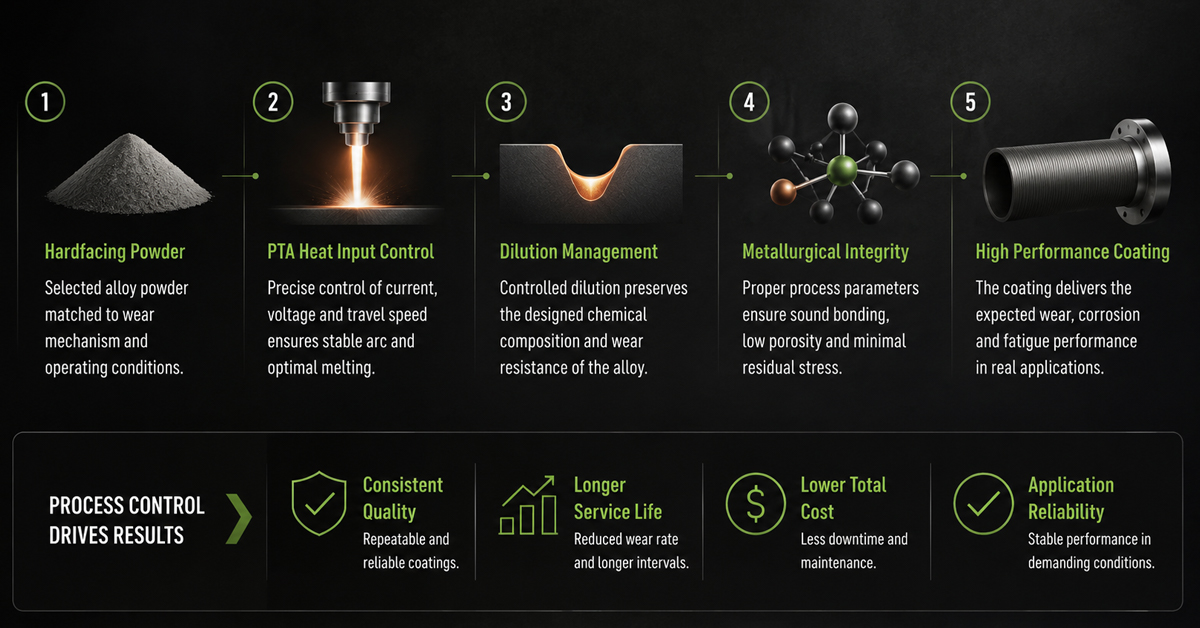

Why Alloy Selection Must Match PTA Hardfacing Capability
Material Performance Depends on Deposition Control
Selecting the correct alloy is only the first engineering decision.
The final coating performance depends heavily on how the alloy is deposited.
High-performance powders can be affected by:
• Dilution rate
• Heat input
• Powder feeding stability
• Layer thickness
• Metallurgical bonding
For PTA hardfacing applications, process control is critical because the deposited layer must maintain the intended alloy characteristics.
Important factors include:
Dilution Control
Excessive dilution can change the deposited chemical composition and reduce wear performance.
Heat Input Management
Incorrect heat input may influence:
• Base material properties
• Residual stress
• Coating structure
Process Repeatability
For production applications, consistent coating quality is essential.
A suitable alloy combined with an unsuitable deposition process may not achieve the expected service performance.
Common Hardfacing Alloy Selection Mistakes
Selecting Maximum Hardness Without Failure Analysis
Problem:
The alloy performs well in abrasion testing but fails under real impact conditions.
Decision:
Match hardness with toughness requirements.
Selecting Alloy Before Understanding the Operating Environment
Problem:
The material solves the wrong failure mechanism.
Decision:
Analyze:
• Wear type
• Temperature
• Chemical exposure
• Loading condition
Ignoring Base Material Compatibility
Problem:
The coating may develop bonding problems or excessive stress.
Decision:
Evaluate:
• Base steel composition
• Heat sensitivity
• Repair requirements
Comparing Powder Price Instead of Lifecycle Cost
Problem:
Lower initial cost may create higher maintenance expense.
Decision:
Evaluate cost per operating hour.
Lifecycle Cost Analysis for Hardfacing Alloy Selection
The real value of a hardfacing alloy is determined by the operating life it provides.
A practical cost evaluation includes:
Total Lifecycle Cost
=
Material Cost
+
Processing Cost
+
Maintenance Frequency
+
Downtime Cost
+
Replacement Cost
For production-critical components, reducing maintenance interruption is often more important than minimizing initial material cost.
A successful alloy selection should improve:
• Component availability
• Maintenance planning
• Production stability
How to Improve PTA Hardfacing Efficiency in Production?
Engineering Information Required Before Selecting a Hardfacing Alloy
Before recommending an alloy or PTA hardfacing solution, engineers should evaluate:
Component Information
• Component drawing
• Base material
• Existing surface condition
• Repair history
Operating Conditions
• Wear mechanism
• Temperature
• Load type
• Working environment
Production Requirements
• Repair or new manufacturing
• Required coating thickness
• Production volume
• Maintenance interval target
The quality of the final recommendation depends directly on the quality of the engineering input.
FAQ
Why does a harder hardfacing alloy sometimes fail faster?
Because hardness alone does not determine service life. Under impact loading, excessive hardness may reduce toughness and increase cracking risk.
How do engineers choose between nickel-based and cobalt-based hardfacing alloys?
The decision depends on operating conditions. Nickel-based alloys are often selected where corrosion resistance is important, while cobalt-based alloys are commonly considered for high-temperature wear and metal-to-metal contact.
Is tungsten carbide always the best solution for abrasive wear?
No. Tungsten carbide performs well in severe abrasion, but impact conditions, component loading and base material compatibility must also be evaluated.
What information is needed before selecting a PTA hardfacing alloy?
Engineers typically evaluate the component material, wear mechanism, operating environment, coating requirements and production conditions before recommending an alloy system.
