Selecting the Right Process Starts With the Component—Not the Equipment
Choosing between PTA hardfacing and laser cladding is not simply a comparison of which technology is more advanced. In industrial surface engineering, the most appropriate hardfacing process is determined by the service conditions of the component, the dominant wear mechanism and the performance requirements of the finished wear-resistant coating.
Experienced engineers rarely begin by comparing welding equipment or reviewing process specifications. Instead, they first identify why the component failed and what the repaired surface must achieve throughout its service life.
Typical engineering questions include:
• Why did the component fail?
• Which wear mechanism is responsible for material loss?
• What coating properties are required?
• How much material must be restored?
• How important are dimensional accuracy and distortion control?
• Will the component require repeated repair during its service life?
Only after these questions have been answered does selecting the appropriate PTA hardfacing process or laser cladding process become meaningful.
Choosing equipment first and defining engineering requirements later often increases manufacturing cost, shortens component life and may ultimately result in selecting an unsuitable repair solution.
Engineering Decisions Begin With Failure Analysis
Surface engineering is not simply a welding operation. It is an engineering strategy for extending component life, improving reliability and reducing lifecycle cost through properly designed wear-resistant overlays.
Although two components may have the same name, they may require completely different repair solutions because their operating environments and failure mechanisms are different.
For example:
• A shaft operating in severe abrasive contamination may require a thick carbide-reinforced overlay capable of resisting continuous material loss.
• A precision sealing surface may require minimal heat input, excellent dimensional control and very little post-machining.
• A valve component operating in corrosive media may require corrosion resistance rather than maximum hardness.

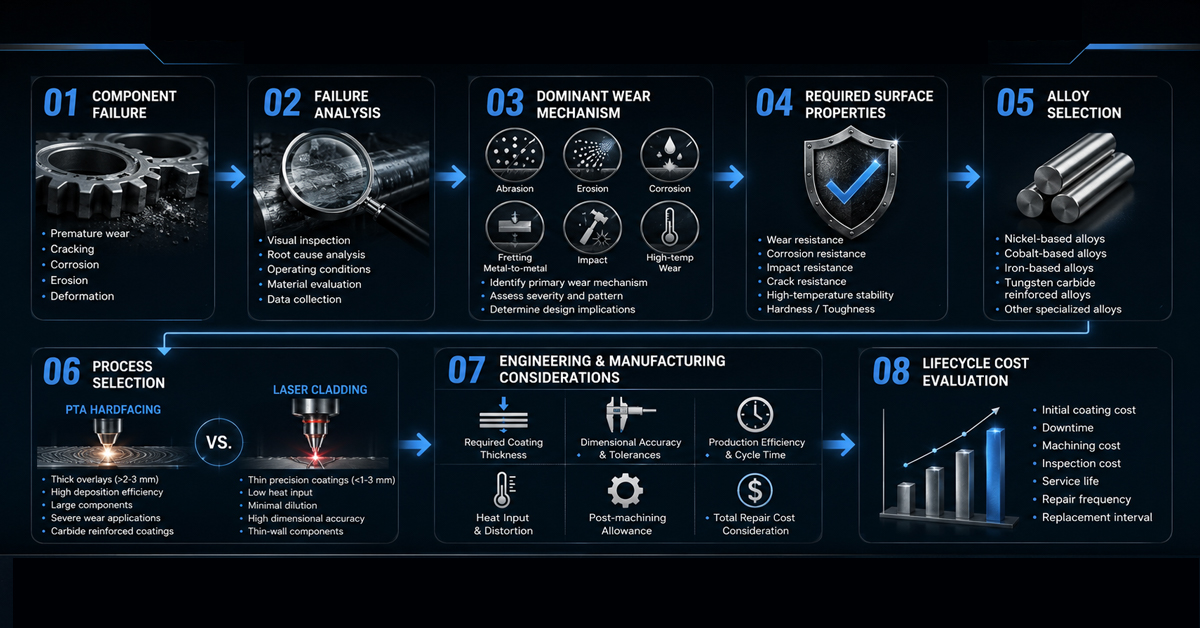

A systematic engineering evaluation generally follows this sequence:
Component Failure
↓
Failure Analysis
↓
Dominant Wear Mechanism
↓
Required Surface Properties
↓
Alloy Selection
↓
Process Selection
↓
Lifecycle Cost Evaluation
This engineering workflow ensures that the selected hardfacing process addresses the actual service conditions instead of simply matching the equipment available in the workshop.
Understanding Wear Mechanisms Before Selecting a Hardfacing Process
One of the most common mistakes in industrial component repair is treating every wear problem as if it were the same.
In reality, different wear mechanisms require different coating materials and may also influence whether PTA welding or laser cladding provides the better engineering solution.
| Dominant Wear Mechanism | Typical Engineering Requirement |
| Low-stress abrasion | High carbide content with a thick wear-resistant overlay |
| High-stress abrasion | Tough matrix with controlled carbide distribution |
| Metal-to-metal wear | High hardness with excellent anti-galling performance |
| Corrosion | Chemically stable nickel-based wear-resistant coating |
| Erosion | Dense overlay with strong metallurgical bonding |
The wear mechanism determines the required coating properties.
The coating properties determine the alloy.
The selected alloy then influences which hardfacing process can consistently produce the required performance.
Successful industrial wear protection therefore begins with understanding the failure mechanism—not comparing welding technologies.

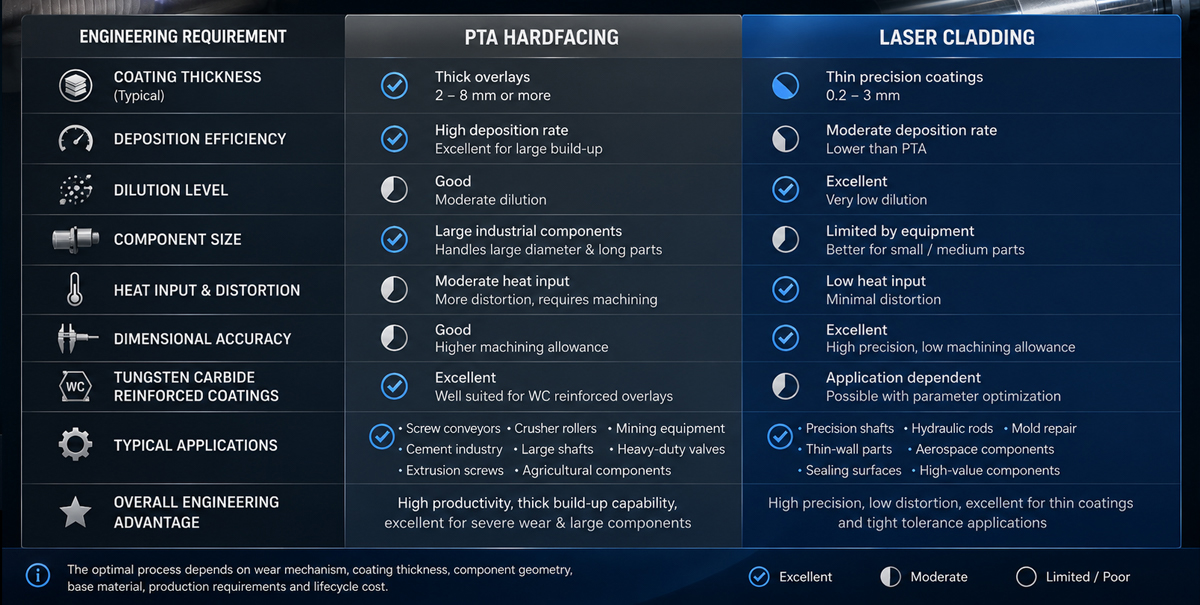

PTA Hardfacing vs. Laser Cladding Process: Engineering Comparison
Neither PTA hardfacing nor laser cladding is universally superior.
Each process has been developed to solve different engineering challenges.
| Engineering Requirement | PTA Hardfacing | Laser Cladding |
| Thick overlays (typically 2–8 mm or more) | Excellent | Limited |
| Thin precision coatings | Moderate | Excellent |
| High deposition efficiency | Excellent | Moderate |
| Low dilution | Good | Excellent |
| Large industrial components | Excellent | Limited |
| Thin-wall components | Moderate | Excellent |
| Tungsten carbide reinforced coatings | Excellent | Application dependent |
| Distortion control | Moderate | Excellent |
| Dimensional accuracy | Good | Excellent |
Rather than asking "Which technology is better?", engineers should ask:
"Which process can consistently produce the coating performance required by this application?"
That question usually leads to a far more reliable engineering decision than comparing equipment specifications alone.
Component Requirements Determine Process Selection
The name of a component should never determine the repair method.
Two shafts, two rollers or two screw conveyors may require completely different component rebuilding strategies because their operating environments are different.
| Application Condition | Recommended Process | Engineering Reason |
| Localized shaft repair with strict dimensional tolerance | Laser Cladding | Precise material deposition with minimal heat input |
| Large shaft rebuilding after severe abrasive wear | PTA Hardfacing | Efficient deposition of thick wear-resistant overlays |
| Precision sealing surface restoration | Laser Cladding | Reduced distortion and lower machining allowance |
| Heavy-duty mining equipment rebuilding | PTA Hardfacing | High deposition efficiency and excellent rebuilding capability |
For example, two screw conveyors may appear almost identical.
However, one transporting abrasive minerals may require a carbide-reinforced hardfacing process, while another conveying corrosive chemicals may benefit more from a nickel-based wear-resistant coating designed primarily for corrosion resistance.
Experienced engineers therefore evaluate the complete operating environment instead of selecting a process solely because of the component name.
Engineering Selection Matrix: Which Process Should You Choose?
The following matrix provides a practical starting point when selecting between PTA hardfacing and laser cladding.
| Application Requirement | Preferred Process |
| Heavy material rebuilding | PTA Hardfacing |
| Severe abrasive wear | PTA Hardfacing |
| Tungsten carbide reinforced overlay | PTA Hardfacing |
| Large industrial components | PTA Hardfacing |
| Precision shaft repair | Laser Cladding |
| Thin wear-resistant coating | Laser Cladding |
| Minimal distortion requirement | Laser Cladding |
| High dimensional accuracy | Laser Cladding |
| Corrosion-resistant repair | Depends on alloy and geometry |
This matrix should not replace engineering analysis.
Instead, it provides an initial selection guide before evaluating component geometry, base material, production requirements and expected service conditions.
Coating Requirements Should Drive Process Selection
The purpose of a hardfacing process is not simply to deposit additional metal.
Its objective is to create a wear-resistant coating capable of delivering the required mechanical and chemical performance throughout the component's service life.
Typical engineering considerations include:
• Required coating thickness
• Abrasion resistance
• Corrosion resistance
• Crack resistance
• Impact resistance
• Heat input tolerance
• Dimensional accuracy
• Machining allowance
• Production efficiency
• Expected service life
Different industries prioritize these requirements differently.
Mining equipment typically emphasizes abrasion resistance, coating thickness and deposition efficiency, while hydraulic cylinders, precision shafts and sealing surfaces place greater importance on dimensional accuracy, surface finish and distortion control.
For this reason, coating requirements—not equipment preference—should determine the most suitable hardfacing process or laser cladding process.
Material Selection Is Often More Important Than Process Selection
Engineers sometimes compare deposition technologies before selecting the coating material. In practice, the opposite approach often produces better engineering results.
The selected alloy has a greater influence on service performance than the deposition method itself. It determines wear resistance, corrosion resistance, high-temperature performance, crack sensitivity and deposition behavior.
Typical alloy systems used in PTA hardfacing, laser cladding and other overlay welding applications include:
| Alloy System | PTA Hardfacing | Laser Cladding | Typical Applications |
| Nickel-based alloys | ✓ | ✓ | Corrosion-resistant and wear-resistant coatings |
| Cobalt-based alloys | ✓ | ✓ | High-temperature wear and metal-to-metal contact |
| Iron-based alloys | ✓ | ✓ | General industrial wear protection |
| Tungsten carbide reinforced alloys | ✓ Recommended | △ Application dependent | Severe abrasive wear and component rebuilding |
For tungsten carbide reinforced coatings, heat input becomes particularly important. Excessive thermal exposure may increase carbide dissolution, reducing the retained carbide content and ultimately affecting long-term wear resistance.
For this reason, engineers normally select the alloy first and then determine which hardfacing process can consistently deliver the required coating quality.
Coating Thickness Frequently Determines Process Selection
Required overlay thickness is often one of the earliest engineering constraints when planning industrial component repair or shaft rebuilding.
Overlay thickness directly affects:
• Deposition efficiency
• Heat accumulation
• Machining allowance
• Repair time
• Manufacturing cost
• Overall repair strategy
|
Required Overlay Thickness |
Typical Process Direction |
|
Below 1 mm |
Laser cladding is often preferred |
|
1–3 mm |
Depends on alloy, geometry and tolerance requirements |
|
Above 3 mm |
PTA hardfacing is generally more efficient |
A thin precision coating and a heavy rebuilding operation are fundamentally different engineering tasks.
Using a precision process for heavy rebuilding—or a high-deposition process for precision coating—often increases manufacturing complexity without improving component performance.

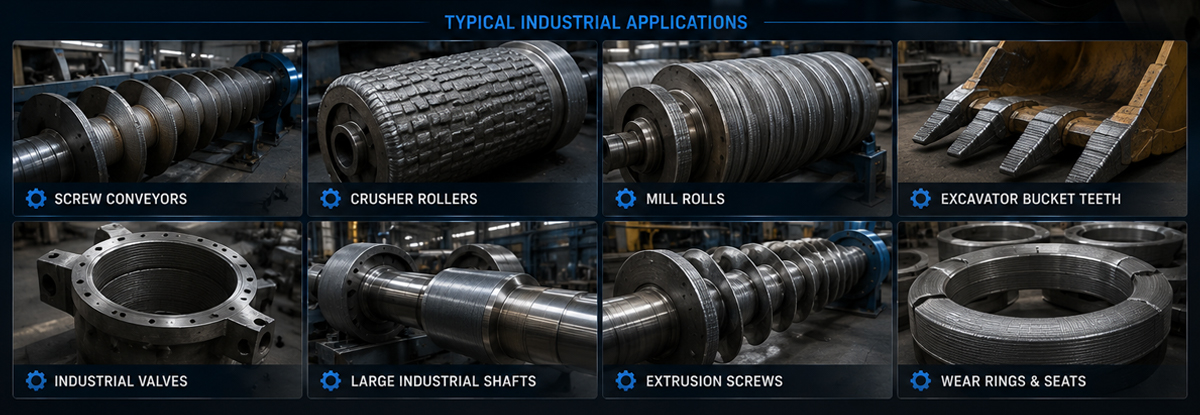

When PTA Hardfacing Is the Better Choice
PTA hardfacing is generally selected when applications require efficient component rebuilding, thick wear-resistant overlays and reliable protection against severe wear.
Typical applications include:
• Screw conveyors
• Crusher rollers
• Mining equipment
• Cement industry components
• Large industrial shafts
• Extrusion screws
• Heavy-duty valves
• Agricultural wear parts
These applications typically require large deposition volumes and long service life under severe abrasive wear.
Compared with thinner precision coating processes, PTA welding can restore large amounts of material more efficiently while maintaining excellent metallurgical bonding.
For components repaired repeatedly throughout their service life, deposition consistency and repeatable coating quality often become just as important as alloy selection.
When Laser Cladding Is the Better Choice
Laser cladding is generally preferred when coating precision is the primary engineering objective.
Typical applications include:
• Precision shaft repair
• Hydraulic rods
• Mold repair
• Thin-wall components
• Aerospace components
• High-value mechanical parts
• Precision sealing surfaces
The relatively low heat input associated with the laser cladding process helps minimize distortion and preserve component geometry.
This makes laser cladding particularly suitable for applications where dimensional accuracy, surface finish and reduced machining allowance are critical.
However, higher precision should not automatically be interpreted as better wear resistance.
When applications require thick overlays, extensive shaft rebuilding or high deposition efficiency, PTA hardfacing may provide the more practical engineering solution.
Low Dilution Is Only One Engineering Consideration
Low dilution is frequently presented as one of the major advantages of laser cladding.
Although dilution influences final alloy chemistry, experienced engineers rarely use it as the only selection criterion.
Instead, they evaluate the complete coating system, including:
• Metallurgical bonding
• Coating thickness
• Wear resistance
• Crack resistance
• Residual stress
• Repair repeatability
• Manufacturing efficiency
• Lifecycle cost
For heavy-duty industrial wear protection, a slightly higher dilution may be acceptable if the coating delivers greater durability, more efficient rebuilding and longer service life.
The engineering objective is application performance—not the optimization of a single process parameter.
Deposition Rate Does Not Always Mean Higher Productivity
Deposition efficiency represents only one stage of the complete repair process.
A typical industrial component repair workflow includes:
Surface Preparation
↓
Deposition
↓
Heat Management
↓
Machining
↓
Inspection
↓
Return to Service
For large industrial components, PTA hardfacing often reduces total repair time because thick wear-resistant overlays can be deposited efficiently.
For precision shaft repair, laser cladding may shorten the overall manufacturing cycle by minimizing distortion and reducing post-machining requirements.
Engineers therefore evaluate total repair time rather than deposition rate alone.

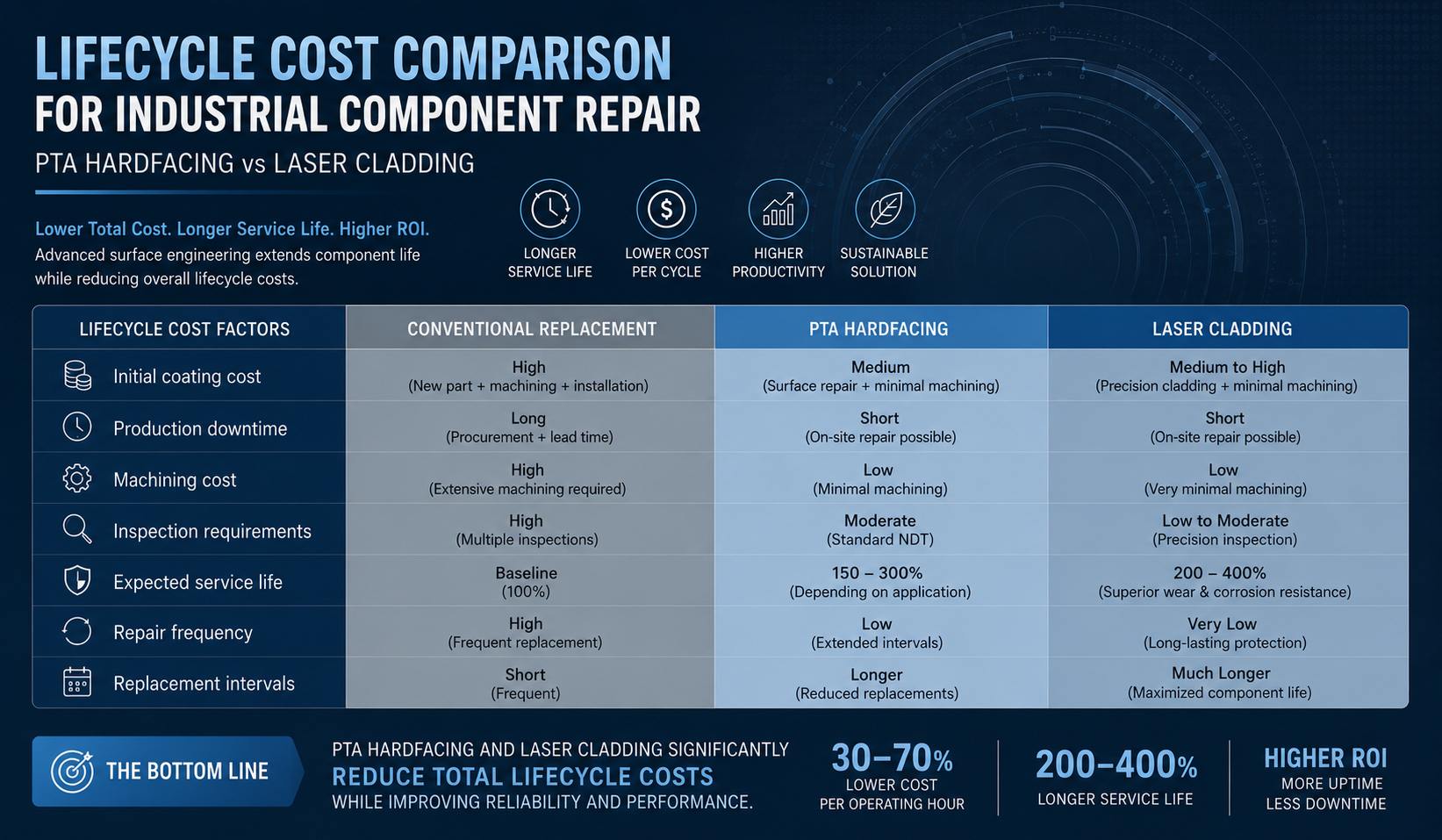

Lifecycle Cost Matters More Than Initial Repair Cost
The lowest repair cost is not always the most economical engineering solution.
A complete lifecycle evaluation normally considers:
• Initial coating cost
• Production downtime
• Machining cost
• Inspection requirements
• Expected service life
• Repair frequency
• Replacement intervals
A process with a higher initial repair cost may ultimately reduce total operating costs if it extends component life, decreases unplanned downtime and reduces the frequency of future repairs.
For this reason, experienced engineers focus on total lifecycle cost instead of evaluating deposition speed or equipment investment in isolation.
Frequently Asked Questions
Is PTA hardfacing better than laser cladding?
Neither process is universally better.
PTA hardfacing is generally preferred for thick overlays, severe abrasive wear and large-scale component rebuilding, while laser cladding is often selected for precision coating, minimal distortion and tight dimensional tolerances.
The better choice depends on the component, operating conditions and required coating performance.
Which process is better for shaft repair?
Both processes are widely used for shaft repair.
Laser cladding is typically preferred for localized repair with strict dimensional tolerances, while PTA hardfacing is usually more suitable for rebuilding heavily worn shafts requiring thicker overlays.
Can laser cladding replace hardfacing?
Not entirely.
Laser cladding is an excellent solution for many precision applications, but it does not replace every hardfacing process.
Applications involving severe abrasive wear, carbide-reinforced overlays or heavy component rebuilding often continue to benefit from PTA hardfacing.
Can both PTA hardfacing and laser cladding use nickel-based alloys?
Yes.
Both processes are compatible with nickel-based alloys.
The preferred process depends on coating thickness, component geometry, production requirements and service conditions rather than alloy type alone.
What information should be prepared before selecting a hardfacing process?
Engineers typically evaluate:
• Component drawings
• Base material
• Dominant wear mechanism
• Operating temperature
• Required coating thickness
• Dimensional tolerance
• Production volume
• Whether the component is new or requires repair
Providing complete engineering information at the beginning of a project significantly improves process selection and coating performance.
Conclusion
Selecting between PTA hardfacing and laser cladding is not a technology competition—it is an engineering decision based on component performance.
Successful surface engineering projects rarely begin with choosing welding equipment. They begin with understanding why the original component failed, identifying the dominant wear mechanism and defining the properties that the replacement wear-resistant coating must deliver throughout its service life.
Once the wear mechanism, coating requirements, alloy system and production objectives have been clearly established, selecting the appropriate hardfacing process becomes a logical engineering outcome rather than a matter of equipment preference.
Whether the objective is shaft repair, component rebuilding, corrosion protection or severe abrasive wear resistance, the most reliable solution is the one that consistently meets the engineering requirements while delivering the lowest practical lifecycle cost.
Need Help Selecting the Right Hardfacing or Laser Cladding Process?
Every wear application is different.
Selecting the optimal PTA hardfacing or laser cladding process requires a clear understanding of the component's operating conditions, wear mechanism, base material and performance objectives.
If you are evaluating a new industrial wear protection project or looking to improve an existing component repair process, providing complete engineering information at the beginning of the evaluation will lead to a more accurate process recommendation, more reliable coating performance and lower long-term operating costs.
Contact Our engineering team can assist with process selection, alloy recommendations and application-specific surface engineering solutions for a wide range of industrial wear and corrosion challenges.
Post time: Jul-31-2026
