How to Repair a Worn Shaft Without Replacing It

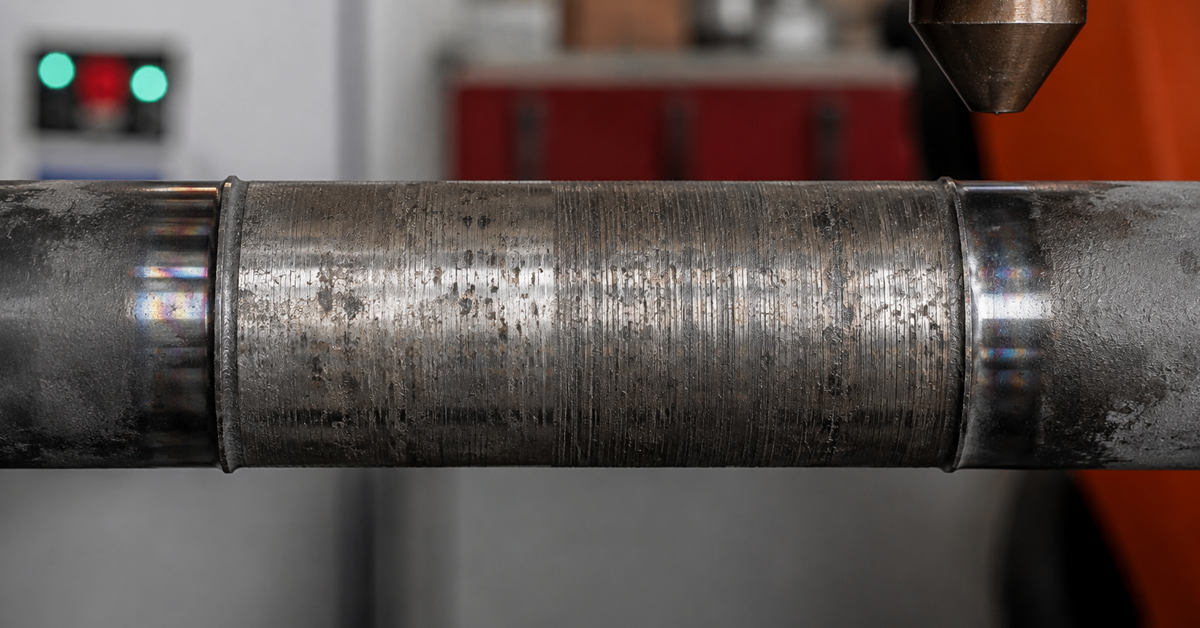

Step 1 — Inspection

Establish original dimensions, current condition, damage distribution, substrate condition, and the likely failure mechanism.

Step 2 — Surface preparation

Machine or grind the worn zone to clean, sound metal. Remove pits, scoring, and surface cracks to their roots. Clean with solvent/degreaser, protect adjacent finished areas, and preheat according to the base material and qualified repair procedure.

Step 3 — Material selection

Choose the deposited alloy by wear mechanism, corrosion environment, temperature, loading, hardness and toughness requirements, substrate compatibility, and machinability — not by brand. The hardest alloy is not automatically the best: an extremely hard carbide-rich deposit may excel under severe abrasion but crack under repeated impact. See How to Select the Right Hardfacing Alloy for Wear Protection Applications.

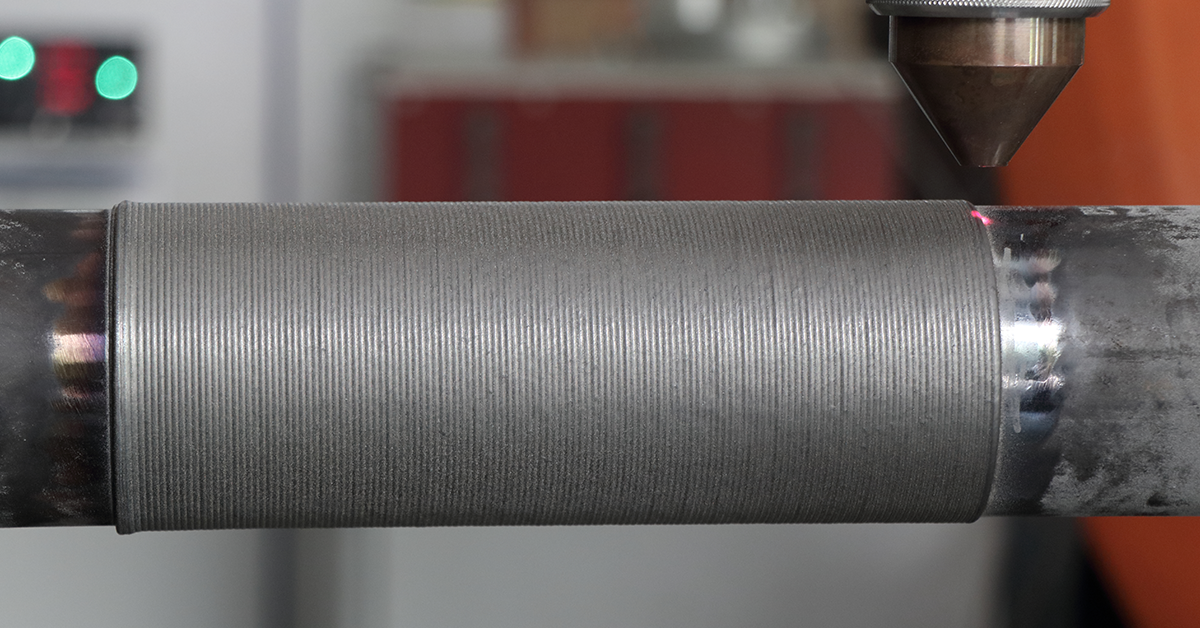

Step 4 — Deposition

Select the process by the actual repair requirement:

•  Shallow localized wear: direct deposition may be practical — one or two laser or PTA passes of a suitable overlay

•  Larger dimensional loss: a build-up layer or multiple deposition passes may be needed before the final wear-resistant surface is applied

•  Substantial section loss: a build-up strategy (GMAW or multiple PTA passes) may be required before the finish overlay

The practical build-up depth depends on substrate condition, geometry, process capability, alloy, and the required final dimensions — not on a fixed thickness boundary.

Step 5 — Machining back to tolerance

Rough turn to +0.2–0.5 mm, then finish turn or grind to drawing dimensions. Seal surfaces to Ra 0.2–0.8 µm; bearing journals to tolerance with TIR typically within 0.02–0.05 mm. Final inspection checks diameter, roundness, runout, surface finish, and overlay hardness. (Ra and TIR values are typical machining targets for seal and bearing surfaces — confirm against the component's own tolerance class.)



Laser Cladding vs. PTA for Shaft Repair — Which Should You Choose?

Both processes rebuild shafts, but they solve different problems:

Factor	Laser cladding	PTA hardfacing
Localized repair	Strong option	Suitable in many cases
Dimensional restoration	Strong option	Suitable depending on geometry
Heat input control	Strong advantage	More thermal input in many applications
Dilution control	Strong advantage	Can be controlled
Large-area buildup	Application-dependent	Often attractive
Production productivity	Application-dependent	Often attractive

 Dilution is process-dependent and controllable, and parameter optimization directly affects overlay wear resistance (Zhang et al., 2023). The practical build-up depth and heat input vary with parameters, alloy, and geometry — there is no universal boundary that decides the process.

Laser cladding is often the better choice for localized repair, tight dimensional requirements, distortion-sensitive or hardened shafts, and thin dense overlays — including stainless or Ni-based hard-chrome replacement. PTA hardfacing is attractive when the shaft needs substantial wear-resistant buildup or a larger deposition area, and deposition productivity matters.

There is no universal thickness boundary that automatically decides the process. The right question is: which process restores this shaft with the required geometry, metallurgical quality, surface properties, productivity, and lifecycle cost?

For the full engineering comparison, see PTA Hardfacing vs. Laser Cladding: How Engineers Select the Right Surface Engineering Process.



How Much Material Should Be Added to a Worn Shaft?

The build-up should not simply equal the measured wear depth. A practical calculation is:

wear-related dimensional loss + preparation removal + machining allowance + process-specific allowance

Worked principle (no fabricated project data): if a journal has lost depth D to wear, and inspection shows an additional amount P must be removed during preparation, and the finishing process needs a machining allowance M, then the preliminary build-up is D + P + M in the radial direction. Every value (D, P, M) must come from measuring the specific shaft and its process plan — there is no universal number.



Which Alloy Should You Use for Shaft Repair?

Layer	Typical alloys	Purpose
Build-up	Low-alloy steel, 17-4PH, 410	Restore dimension cost-effectively
Wear surface — Fe-based	Martensitic stainless (410, 431), tool steels	General wear; hydraulic rods; cost-effective
Wear surface — Ni-based	NiCrBSi family	Corrosion + abrasive wear; seal surfaces
Wear surface — Co-based	Stellite 6 / 21	High temperature, galling, corrosive service
Alternative to hard chrome	431 / 17-4PH by laser cladding	Considered for hydraulic rods and seal surfaces in suitable applications

 The repair alloy does not always have to match the original shaft material. The build-up layer restores geometry; the functional surface layer can then be selected specifically for wear, corrosion, galling, temperature, or other service requirements — which is the difference between surface engineering and simple weld repair.

If the original failure was abrasive wear at a journal, a correctly selected overlay can improve resistance to that wear mechanism — but actual service life depends on the complete repair and the operating conditions. The alloy is chosen by wear mechanism — abrasive, adhesive, erosive, or corrosive — not by preference.



Why Can a Repaired Shaft Fail Again?

A repaired shaft can fail prematurely even when the overlay looks acceptable. Common causes:

•  Incorrect material selection — alloy does not match the actual combination of abrasion, impact, corrosion, temperature, or sliding contact

•  Inadequate surface preparation — unsound or contaminated material beneath the deposit

•  Excessive dilution — substrate mixing into the deposit alters overlay chemistry and properties

•  Poor thermal control — uncontrolled thermal cycles cause distortion, residual stress, or cracking (numerical studies of multi-layer laser cladding show residual stress accumulates with each deposited layer — Vundru et al., 2018)

•  Incorrect final geometry — wrong diameter, runout, concentricity, or surface finish defeats a sound overlay

•  Original failure cause not corrected — misalignment, poor lubrication, contamination, overload, or incorrect assembly wears the new surface the same way

Shaft repair should be evaluated as a complete system: substrate + alloy + deposition process + machining + inspection + operating condition. For overlay failure mechanisms, see Why Hardfacing Cracks: Weld Overlay Causes, PTA Defects & Proven Solutions.



Common Shaft Repair Mistakes to Avoid

1. Welding before assessment — skipping material ID and NDT, then welding over a shaft that should have been scrapped.

2. Repairing a symptom, not the cause — rebuilding a journal worn by misalignment or poor lubrication without fixing the root cause; the new surface wears the same way.

3. Building up only to the wear depth — forgetting preparation removal and machining allowance, then running out of stock at final grinding.

4. Picking the hardest alloy — hard carbide-rich deposits crack under impact; the alloy must match the full service condition, not just hardness.

5. Skipping preheat on medium-carbon alloy steels — leading to hydrogen cracking or a failed overlay.

6. Finishing only the diameter — ignoring runout, concentricity, and surface finish on seal surfaces; geometry failures defeat a sound overlay.

7. No verification — failing to check final dimensions, hardness, and NDT, so the repair is only as good as the assumption it was made from.



How Much Does Shaft Repair Cost vs. Replacing It?

The purchase price of a new shaft is only part of the replacement cost. Forging/procurement, machining, heat treatment, balancing, transport, installation, alignment, commissioning, and downtime all add up — and for large or hard-to-source components, these can dominate.

Cost factor	Why it matters
Inspection	Establishes feasibility and repair scope
Preparation	Removes damaged material
Deposition	Process time and equipment use
Alloy	Can be a major material cost
Machining	Restores final geometry
NDT / testing	Required for critical components
Downtime	Often dominates total economics
Replacement lead time	Sets the value of a rapid repair
Expected service life	Determines if repair is justified

 Repair is most attractive when the original shaft is expensive, custom-machined, or difficult to source — exactly the cases where replacement cost and lead time are highest. A planning-level comparison is best built from an actual assessment: inspection scope, build-up depth, alloy, machining, and the cost of downtime and replacement lead time. The correct comparison is total repair cost + service life versus total replacement cost + lead time + downtime, judged on lifecycle cost and technical risk.

For a broader cost model, see Hardfacing Cost vs Component Replacement Cost.



What Information Should You Send for a Shaft Repair Assessment?

A useful technical evaluation starts with:

•  Component: shaft drawing or original dimensions, base material, hardness/heat-treatment, critical tolerances, required surface finish

•  Damage: current dimensions, wear depth and distribution, damaged area, photos, cracks/pitting/corrosion/scoring, previous repair history

•  Operating: speed, load, temperature, lubrication, working environment, abrasive or corrosive exposure

•  Requirements: final dimensions, machining method, preferred alloy, inspection requirements, expected quantity, replacement cost or lead time

The better the engineering input, the less the recommendation depends on assumptions.

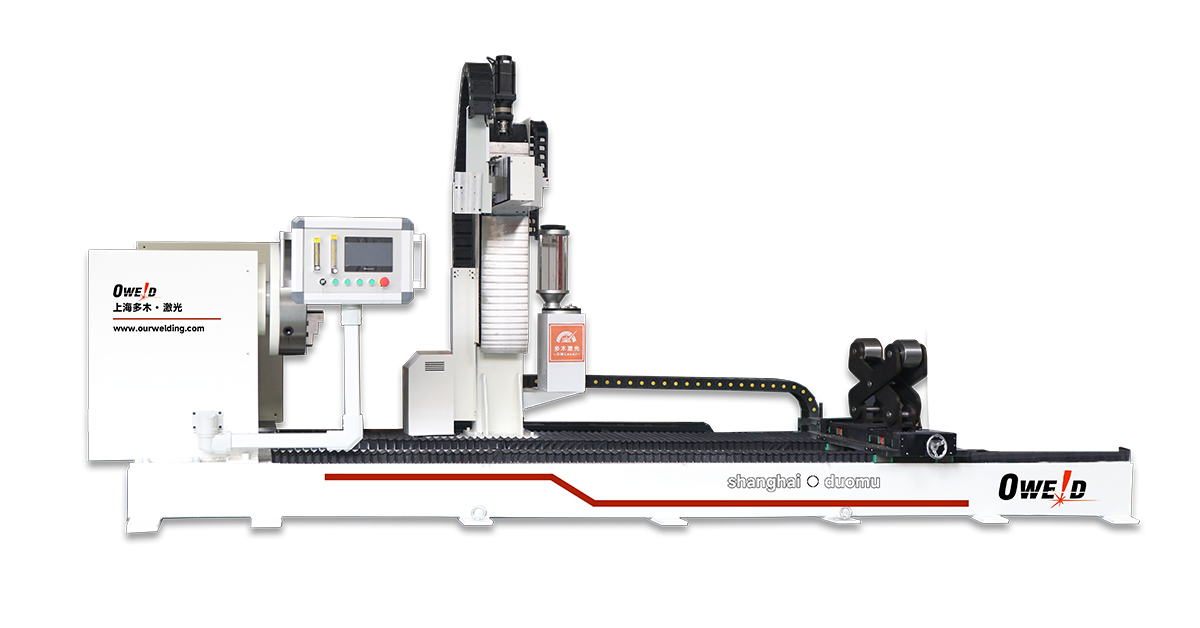

Can Shaft Repair Be Automated?
