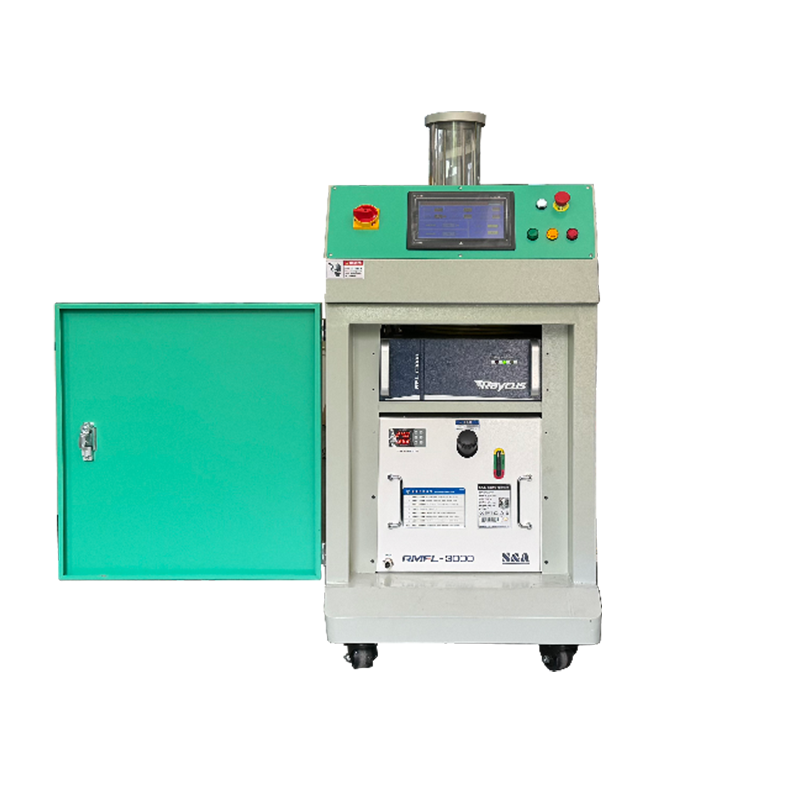

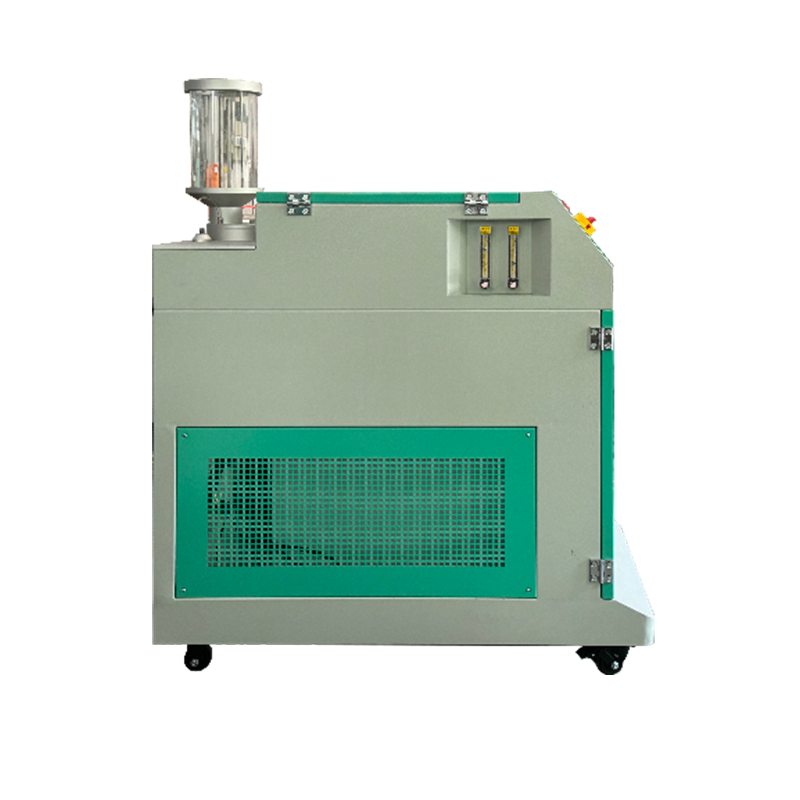

3kw handheld/portable laser cladding machine

3 kW handheld laser cladding equipment is a highly flexible and portable solution. It eliminates the need to disassemble large or fixed workpieces and transport them to a dedicated machining workshop. Instead, repairs or processing can be carried out directly on-site—such as in factory workshops, mines, oilfields, or ships—significantly reducing downtime and logistics costs.

The system features a modular design that makes it easy to transport and install quickly, allowing it to adapt to complex or remote environments (such as offshore platforms or field operations). It is suitable for workpieces of various sizes and shapes, and is particularly ideal for heavy equipment that cannot be moved or would be costly to move—such as rolling mill rolls, turbine blades, and large molds.

Send email to us

Product Detail

Product Tags

Product Advantages

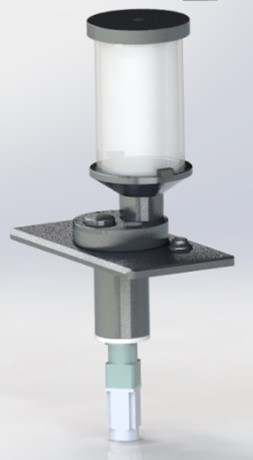

• Integrated design: The laser source, cooling system, powder feeding system, motion control, and HMI are fully integrated, reducing reliance on external equipment and lowering overall system complexity.

• Fast response: Ready to use immediately after powering on, with no long preheating required—ideal for emergency repair tasks.

• Lower overall cost: Reduces expenses related to workpiece transportation, disassembly, and downtime, while extending equipment service life and offering excellent overall cost-effectiveness.

• Green manufacturing: Compared with traditional electroplating or thermal spraying, laser cladding produces no harmful gas emissions and offers high material efficiency (powder utilization can exceed 90%), meeting environmental protection requirements.

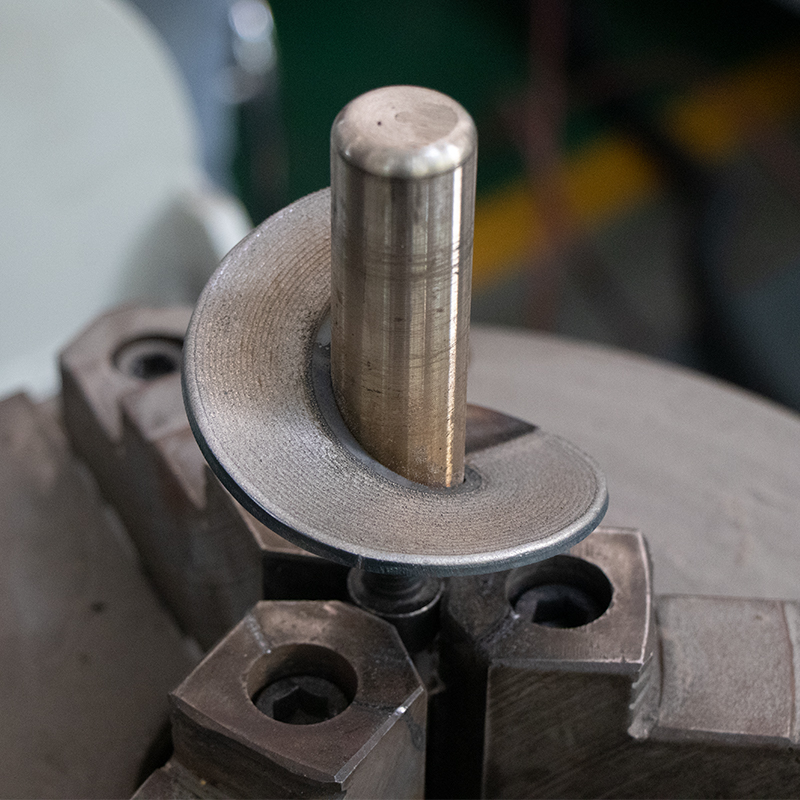

• Repair instead of replacement: Enables cost-effective restoration of worn or damaged high-value components (such as aerospace parts or molds), at only 20%–50% of the cost of purchasing new parts.

Product structure, parameters

1. Laser

Table 1 Laser Source Specifications

Item	RFL-C3000S	Test Conditions
Rated Output Power (W)	3000	—
Operating Mode	Continuous / Modulated	—
Power Adjustment Range (%)	10–100	—
Center Wavelength (nm)	1080 ± 5	Rated output power
Modulation Frequency (Hz)	1–5,000	Rated output power
Beam Quality BPP (mm·mrad)	1.4–2	Rated output power
Operating Voltage	380 ± 10% VAC, 50/60 Hz	Customizable core diameter
Maximum Power Consumption (W)	10,000	Customizable cable length
Control Interface		RS-232 / AD / Ethernet
Dimensions (W × H × D) (mm)	485 × 172 × 727 (with handle)	—
Weight (kg)	—	—
Cooling Method	Water cooling	—

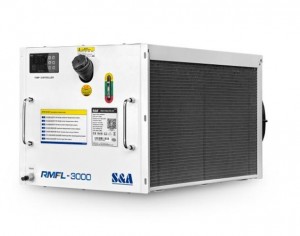

2.Chiller

Table 2 Chiller Specifications

No.	Item	Unit	Specification
1	Power supply type	—	1PH + P + PE AC 220–240 V / 50 Hz
2	Rated power	kW	2.84
3	Operating current	A	13.5
4	Compressor power	kW	2.07
5	Low-temperature side water temperature setting range	℃	18–30
6	High-temperature side water temperature setting range	℃	20–35
7	Water tank capacity	L	16
8	Ambient temperature	℃	5–40
9	Noise	dB(A)	≈65
10	Net weight	kg	59
11	Machine dimensions	mm	880 × 480 × 430
12	Suitable cooling medium	—
