Cladding location is dictated by where the valve actually contacts the process fluid and where mechanical loading concentrates.

Valve Area	Why It May Be Cladded	Key Specification Point

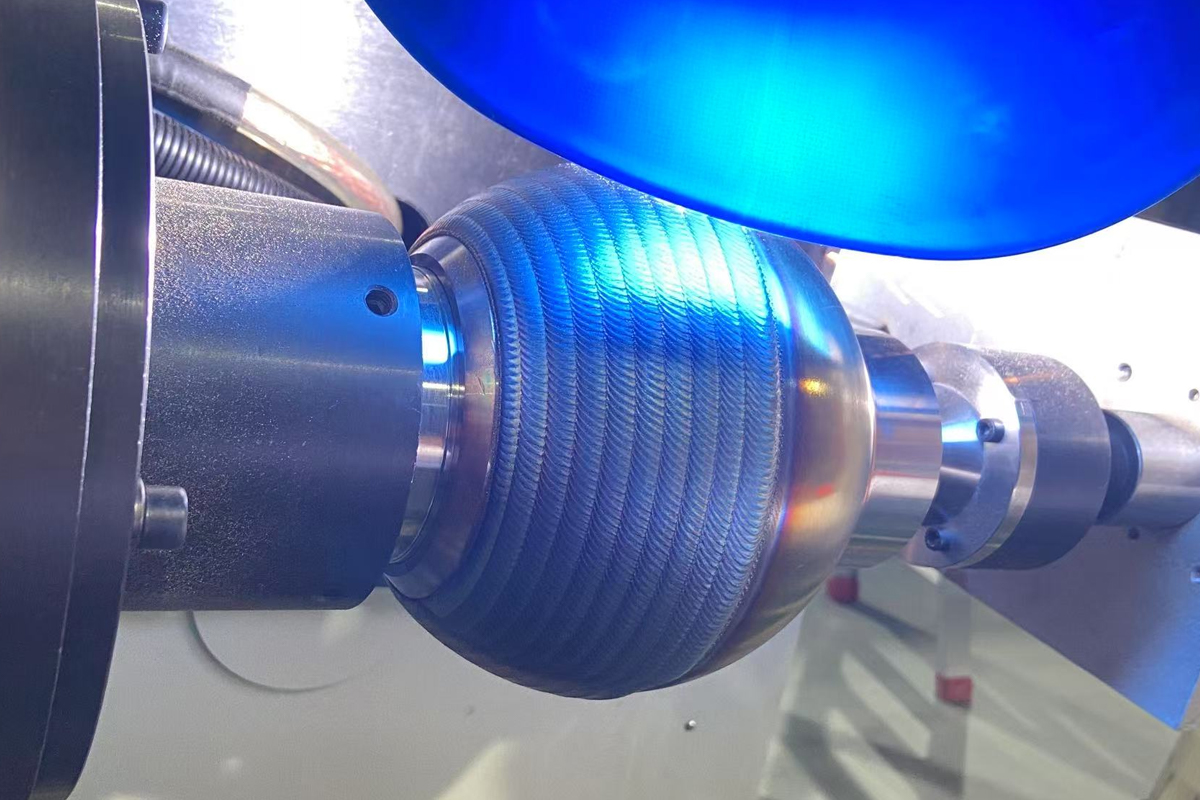

Ball surface	Primary sealing contact, exposed to full flow and pressure differential	Sphericity after cladding, finished hardness, layer continuity
Seat rings	Mating sealing surface, subject to the same wear and corrosion mechanisms	Seat flatness, contact width, chemistry after dilution
Stem	Torque transmission and packing contact, exposed to friction and media	Cladding continuity at the packing area, dimensional tolerance
Body bore / flow passage	Erosion in high-velocity or particle-laden flow	Localized overlay at inlet/outlet, not always full-bore cladding
Trunnion bearing area	Load-bearing contact in trunnion-mounted valves	Bond quality, hardness consistency under cyclic load

The buyer conclusion: a valve cladding specification should state which surfaces are cladded and to what finished thickness — "hardfaced ball and seat" is not enough detail to guarantee performance in severe service.

Common Materials for Ball Valve Cladding

Alloy selection should match the actual failure mechanism, not just the general service category.

Cladding Material Family	Main Benefit	Typical Valve Service
Cobalt-based alloys (Stellite-type)	High hardness, excellent galling and wear resistance, good hot hardness	High-pressure, high-temperature, frequent-cycling valves
Nickel-based alloys (Inconel-type)	Strong corrosion resistance in sour and chloride service	Sour oil and gas, offshore, chemical process valves
Tungsten carbide composite overlay	Extreme abrasion resistance	Choke valves, sand-laden slurry, erosive service
Stainless steel overlay	Moderate corrosion resistance at lower cost	General-purpose corrosive service, less severe wear
Nickel-chromium-boron alloys	Balance of hardness and corrosion resistance	Mixed wear-and-corrosion valve service

The conclusion: material selection should be tied to the dominant failure mechanism — galling and hot hardness point toward cobalt alloys, sour/chloride corrosion points toward nickel alloys, and pure abrasion points toward tungsten carbide.

How Is Ball Valve Cladding Applied?

Different deposition methods suit different valve sizes, geometries, and production volumes.

Method	Best Fit	Strength	Limitation
PTA (Plasma Transferred Arc) welding	Standard production hardfacing of ball and seat	Low dilution, dense deposit, good process control, high deposition rate	Requires fixturing and rotation for spherical geometry
Laser cladding	Precision overlay, thin/controlled layers, complex or small-bore valves	Very low dilution and heat input, minimal distortion, fine metallurgical control	Higher equipment cost, slower for large-area coverage
Manual TIG/MIG overlay	Repair work, low-volume or field service	Flexible, no special fixturing needed	Higher dilution, less consistent thickness, operator-dependent
Thermal spray coating	Non-fused corrosion barrier on select low-load surfaces	Very low heat input, minimal distortion	Mechanically bonded only, not suited to high-load sealing surfaces

The buyer conclusion: for ball and seat sealing surfaces where dilution control and metallurgical bonding matter most, PTA welding and laser cladding are the industry-standard methods — manual overlay and thermal spray are generally reserved for repair or lower-demand applications. Duomu's PTA welding systems and laser cladding equipment are both built specifically around this kind of spherical and cylindrical valve-trim geometry.

Why Dilution Matters in Ball Valve Cladding

Dilution is the mixing of base metal into the deposited overlay during welding. In valve cladding, excess dilution can reduce the hardness, corrosion resistance, or galling resistance of the finished sealing surface — even when the correct alloy powder was used.

Variable	Why It Matters	Buyer Should Specify
Minimum finished thickness	Protective alloy must remain after grinding and lapping to final seal finish	Final thickness after all finishing, not deposited thickness
Dilution rate	Base metal pickup can lower hardness and corrosion resistance	Maximum acceptable dilution or a minimum layer count
Layer count	Multiple passes may be needed to reach full alloy chemistry at the surface	Number of layers where high purity is required
Porosity and cracks	Defects at the seal surface create leak paths	PT, UT, or dye penetrant acceptance criteria
Hardness consistency	Uneven hardness causes uneven wear and early leakage	Hardness testing across the ball and seat surface
Sphericity / roundness	Distortion during welding can affect sealing geometry	Post-cladding machining and roundness tolerance
Surface finish	Affects sealing performance and torque	Final Ra roughness after grinding/lapping

The conclusion: for ball valve cladding, the real question is not "what alloy was deposited?" but "what hardness and chemistry remain at the finished sealing surface after welding, machining, and lapping?" This is why PTA and laser cladding are generally preferred over manual overlay for critical trim — both allow tighter, more repeatable dilution control.

Cladded Ball Valve vs Solid Alloy Trim

Cladding is usually chosen because a fully solid-alloy ball and seat would be expensive, slow to machine, and often unnecessary once only the sealing surface needs protection.

Factor	Cladded Trim	Solid Alloy Trim
Material cost	Lower — premium alloy used only at the sealing surface	Higher — entire ball and seat machined from alloy bar stock
Lead time	Shorter for large-bore valves	Longer, especially for large-diameter solid alloy balls
Mechanical strength	Base steel carries structural and pressure load	Alloy must provide both strength and wear resistance
Wear/corrosion resistance	High at the clad surface if thickness and chemistry are controlled	High throughout the entire ball
Repairability	Can often be re-cladded and re-machined	Repair may require expensive full-alloy welding or replacement
Best fit	Most industrial valves, especially large-bore and standard severe service	Very small valves or extreme service where cladding is impractical

The buyer conclusion: cladded trim is the standard choice for the large majority of industrial ball valves — solid alloy is generally reserved for small bore sizes or the most extreme corrosion/erosion cases where even a thick overlay is not considered sufficient margin.

When Laser Cladding May Be Preferred Over PTA

For most standard ball and seat hardfacing, PTA welding remains the industry workhorse due to its deposition rate and cost efficiency. Laser cladding becomes the better choice when:

•  The valve trim is small-bore or has tight geometric tolerances where heat distortion must be minimized
•  Very thin, precisely controlled overlay layers are required to limit machining stock removal
•  The application involves high-value or exotic alloy trim where minimizing dilution is critical to performance
•  Localized repair of an existing worn seat is needed without re-welding the entire surface

Duomu supplies both PTA cladding machines and laser cladding systems, and can advise which process fits a specific valve size and service condition — see our comparison guide on PTA vs Laser Cladding for valve repair.

Common Buying Mistakes

•  Specifying only "hardfaced" without alloy family, thickness, or process. A valve listed as "Stellite hardfaced" can still underperform if dilution, layer count, or finished thickness are not controlled.
•  Ignoring finished thickness after lapping. The deposited layer may look adequate before finishing, but grinding and lapping to achieve seal-grade surface finish can remove more material than expected.
•  Assuming all cobalt or nickel overlays perform the same. Alloy grade, deposition method, and dilution control all affect real-world galling and corrosion performance, not just the alloy family name.
•  Skipping hardness mapping across the ball and seat. Uneven hardness leads to uneven wear and premature leakage even when the average hardness meets spec.
•  Choosing manual overlay for critical high-pressure trim to save cost. Higher and less consistent dilution increases the risk of early failure at the seal.
•  Not verifying NDT on the sealing surface. Porosity or lack of fusion at the ball/seat interface directly creates a leak path.
•  Over-specifying solid alloy trim when cladding is sufficient. This increases cost and lead time without meaningfully improving sealing-surface performance.



Buyer Checklist

•  What is the process fluid, pressure, and temperature? This determines whether wear, galling, corrosion, or a combination is the dominant failure mechanism.
•  What is the dominant failure mode — abrasion, galling, or corrosion? This decides between cobalt, nickel, or tungsten carbide overlay families.
•  What valve surfaces require cladding? Ball, seat, stem, and body bore may not all need the same treatment.
•  Is this a new valve build or a repair/rebuild of worn trim? New production often uses PTA cladding; repair may favor laser cladding or localized overlay.
•  What minimum finished thickness and hardness are required? Finished thickness after lapping is what actually protects the seal in service.
•  How will dilution and chemistry be controlled? Ask for dilution rate data or layer-count evidence from the supplier's process qualification.
•  What NDT and inspection will be performed on the sealing surface? PT, hardness mapping, and dimensional/roundness checks are typical for critical trim.
•  What is the economic comparison against solid alloy trim or full valve replacement? Include fabrication, inspection, lead time, and expected service life in the comparison, not material cost alone.



What to Send for a Ball Valve Cladding Quote

A useful cladding quotation needs service and geometry details, not just valve size.

Information to Send	Why It Matters
Valve drawing, ball/seat dimensions, and bore size	Determines fixturing, deposition method, and machining allowance
Base material of ball, seat, and body	Controls weldability, preheat, and process qualification
Process fluid, pressure, and operating temperature	Determines the dominant failure mechanism and alloy selection
Required or preferred cladding alloy	Defines cobalt, nickel, tungsten carbide, or another overlay family
Minimum finished thickness and hardness	Ensures enough protective alloy remains after grinding and lapping
New build or repair/rebuild of existing trim	Affects whether PTA cladding, laser cladding, or local repair is most practical
Inspection and acceptance requirements	Defines NDT, hardness testing, and dimensional acceptance criteria
Order quantity and delivery schedule	Helps compare production methods and lead time across cladding processes

This information lets a supplier recommend whether PTA welding, laser cladding, or a combination approach best fits the valve's size, alloy requirement, and service severity.

Final Recommendation

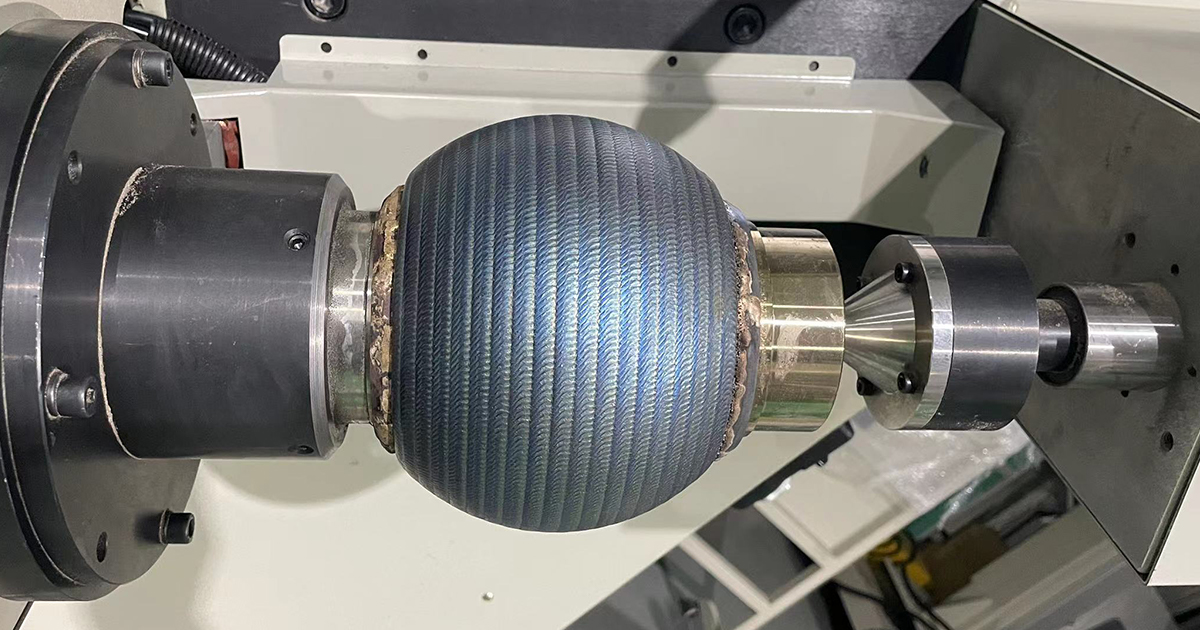

Cladding in a ball valve is a metallurgically bonded protective alloy layer applied to the ball, seat, and related sealing surfaces so the valve can resist wear, galling, erosion, and corrosion while using an economical carbon steel or low-alloy structural body. It is standard practice across oil and gas, petrochemical, power, and mining valve applications.

For buyers, the critical details go beyond the word "hardfaced" or "cladded." Specify the alloy family, deposition method, finished thickness, dilution control, hardness consistency, and inspection plan. A well-specified cladded ball valve delivers long, reliable sealing life at a fraction of the cost of solid alloy trim. A vaguely specified one risks premature galling, leakage, or corrosion failure at exactly the surface that matters most.

Duomu has supplied PTA and laser cladding equipment for valve manufacturers and maintenance operations for over a decade. See our ball valve application page and related guides on valve hardfacing wear and corrosion resistance and PTA vs laser cladding for valve repair for more detail, or contact us with your valve specification for a process recommendation.
