In industries such as oil & gas, petrochemical, power generation, mining, and marine engineering, industrial valves are constantly exposed to severe operating conditions including:
- High pressure
- Extreme temperatures
- Corrosive media
- Abrasive wear
- Sand erosion
Over time, valve seats, sealing surfaces, gates, stems, and discs inevitably suffer from wear, corrosion, cracking, and erosion damage. Replacing these critical components can be extremely expensive and may result in costly downtime.
That is why more manufacturers and maintenance contractors are turning to advanced surface engineering technologies like PTA welding and Laser Cladding for valve repair and hardfacing.
But which process is better?
- Is PTA better than laser cladding for valve repair?
- Which process offers longer service life?
- Which technology is more cost-effective?
- Which one is better for Stellite hardfacing?
- How should you choose between PTA and laser cladding?
In this article, we will provide a detailed technical comparison between PTA and Laser Cladding for industrial valve repair, helping you select the right solution for your application.

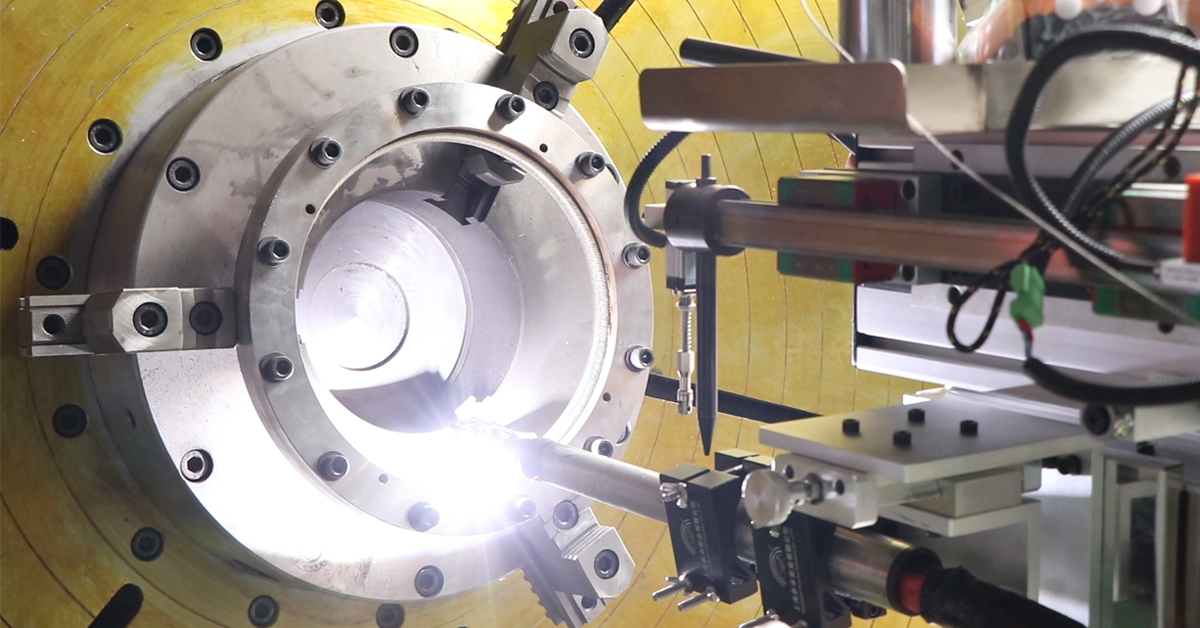

What Is PTA Welding?
PTA (Plasma Transferred Arc) welding is a high-energy-density thermal coating and hardfacing process.
It uses a transferred plasma arc to melt metal powder and deposit it onto the surface of a workpiece, creating a metallurgically bonded wear-resistant or corrosion-resistant overlay.
PTA hardfacing is widely used for:
• Valve seat repair
• Gate valve hardfacing
• Ball valve coating
• Oil & gas valve refurbishment
• Mining equipment rebuilding
• High-temperature alloy surfacing
Key Advantages of PTA Welding
High Deposition Efficiency
PTA offers excellent deposition rates, making it suitable for large-area valve repair.
Strong Metallurgical Bond
The coating forms a true metallurgical bond with the substrate, ensuring excellent adhesion.
Low Dilution Rate
Typical dilution rates range from 5% to 10%, preserving the alloy’s original properties.
Thick Overlay Capability
PTA can easily produce overlays from 1 mm to over 6 mm thick.
This makes PTA ideal for severe wear applications.

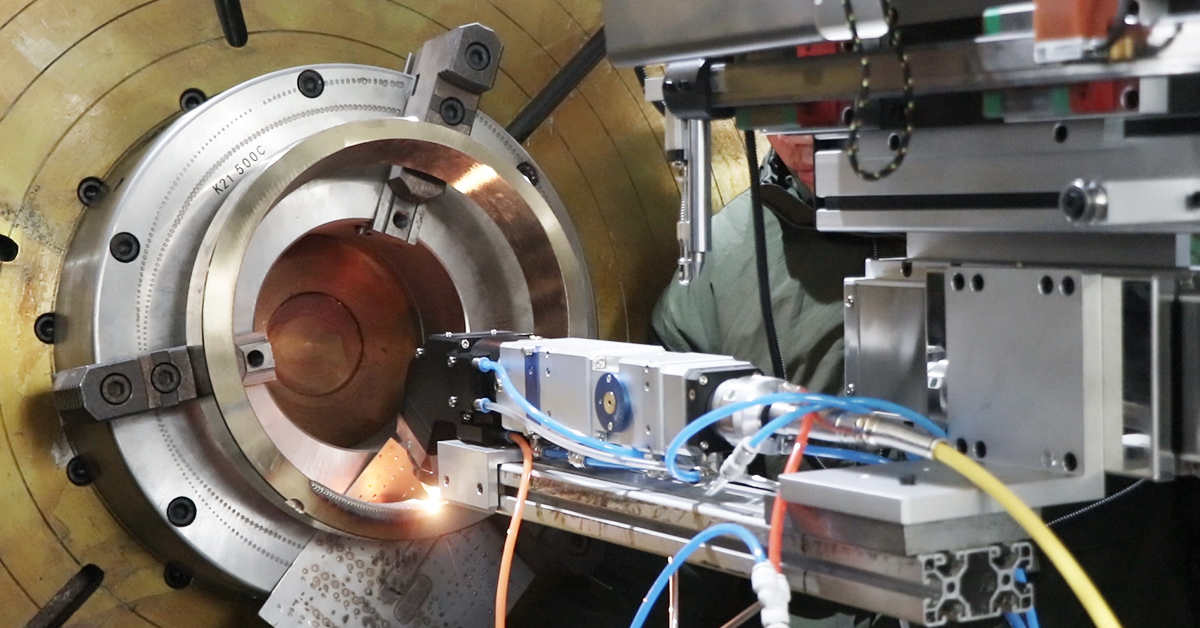

What Is Laser Cladding?
Laser Cladding is an advanced surface engineering process that uses a high-power laser beam to melt metallic powder onto a substrate surface.
Compared with conventional welding technologies, laser cladding offers:
- Extremely low heat input
- Minimal distortion
- Precise control
- Small heat affected zone (HAZ)
- High dimensional accuracy
Laser cladding is commonly used in:
- Precision valve repair
- Aerospace components
- Nuclear industry valves
- Medical equipment
- High-end manufacturing

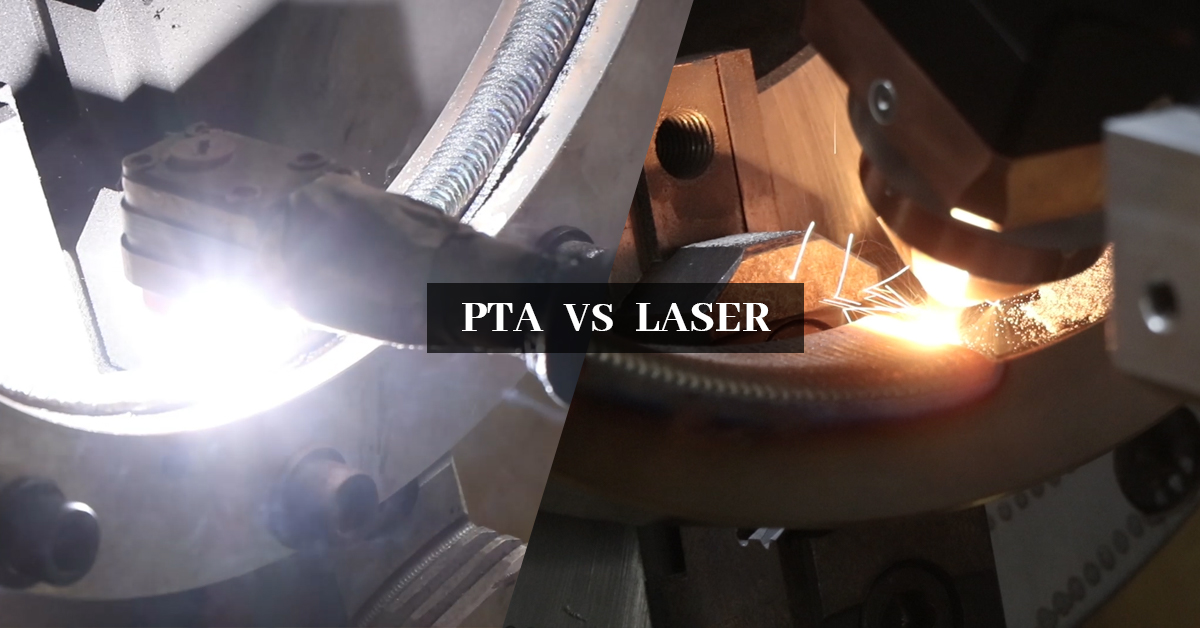

PTA vs Laser Cladding: Key Differences
1. Heat Input Comparison
PTA Welding
PTA uses a plasma arc heat source, which generates relatively higher heat input.
Advantages:
• Deeper penetration
• Stronger fusion
• Better thick-layer capability
Disadvantages:
• Higher risk of thermal distortion
• Larger heat affected zone
• More post-machining required
Laser Cladding
Laser cladding delivers highly concentrated energy with extremely low overall heat input.
Advantages:
• Minimal distortion
• Smaller HAZ
• Better for precision components
For small precision valves and control valves, laser cladding often performs better.
2. Cladding Thickness Capability
PTA Is Better for Thick Coatings
PTA can easily produce:
• 2 mm overlays
• 4 mm overlays
• Even 6 mm+ thick hardfacing layers
This makes PTA ideal for:
• Severely worn valves
• Large gate valves
• Heavy erosion environments
Laser cladding is generally better suited for:
• Thin coatings
• Precision surface restoration
• 0.2–2 mm overlay thickness
If your valve requires heavy material rebuilding, PTA is usually the more economical option.
3. Dilution Rate Comparison
Laser Cladding Has Lower Dilution
Laser cladding typically achieves dilution rates below 5%.
Benefits include:
• Better alloy integrity
• Improved corrosion resistance
• Higher carbide retention
• More stable chemical composition
Laser cladding performs exceptionally well with premium materials such as:
• Stellite
• Inconel 625
• Hastelloy
• Tungsten Carbide (WC)
PTA dilution rates are slightly higher but still excellent for most industrial valve applications.
4. Surface Finish & Machining
Laser Cladding Produces Better Surface Quality
Laser cladding offers:
• Smaller molten pools
• More refined microstructure
• Lower surface roughness
• Reduced machining allowance
This makes laser cladding ideal for:
• Precision sealing surfaces
• Flow control valves
• High-accuracy components
PTA overlays generally require additional machining after welding.
5. Cost Comparison
PTA Is More Cost-Effective
For most industrial valve repair projects, PTA remains the more economical choice.
Advantages include:
• Lower equipment investment
• Lower maintenance cost
• High powder utilization
• Faster repair speed
PTA is particularly suitable for:
• Batch valve repair
• Heavy industry maintenance
• Oil & gas field applications
Laser Cladding Is More Expensive
Laser systems require:
• High-cost laser sources
• Advanced automation
• Precision control systems
• Higher maintenance expenses
Therefore, laser cladding is usually reserved for:
• High-value components
• Precision industries
• Aerospace and nuclear sectors
PTA vs Laser Cladding for Valve Repair
|
Comparison Item |
PTA Welding |
Laser Cladding |
|
Repair Thickness |
Excellent for thick layers |
Better for thin layers |
|
Precision |
Medium to High |
Extremely High |
|
Heat Input |
Higher |
Very Low |
|
Distortion |
Moderate |
Minimal |
|
Repair Speed |
Faster |
Moderate |
|
Cost |
Lower |
Higher |
|
Surface Finish |
Good |
Excellent |
|
Large Valve Repair |
Excellent |
Less economical |
|
Small Precision Valves |
Acceptable |
Excellent |
|
Wear Resistance |
Excellent |
Excellent |
|
Corrosion Resistance |
Excellent |
Superior |
Why PTA Is Still the Mainstream Choice for Oil & Gas Valve Repair
In the oil & gas industry, valves often operate under conditions involving:
• Sand erosion
• Sour gas corrosion (H₂S)
• High pressure
• High temperatures
• Abrasive slurry
For these harsh environments, PTA hardfacing remains one of the most widely used repair technologies.
Reasons Why PTA Dominates Valve Repair
Better for Large Valves
PTA performs exceptionally well on large gate valves and pipeline valves.

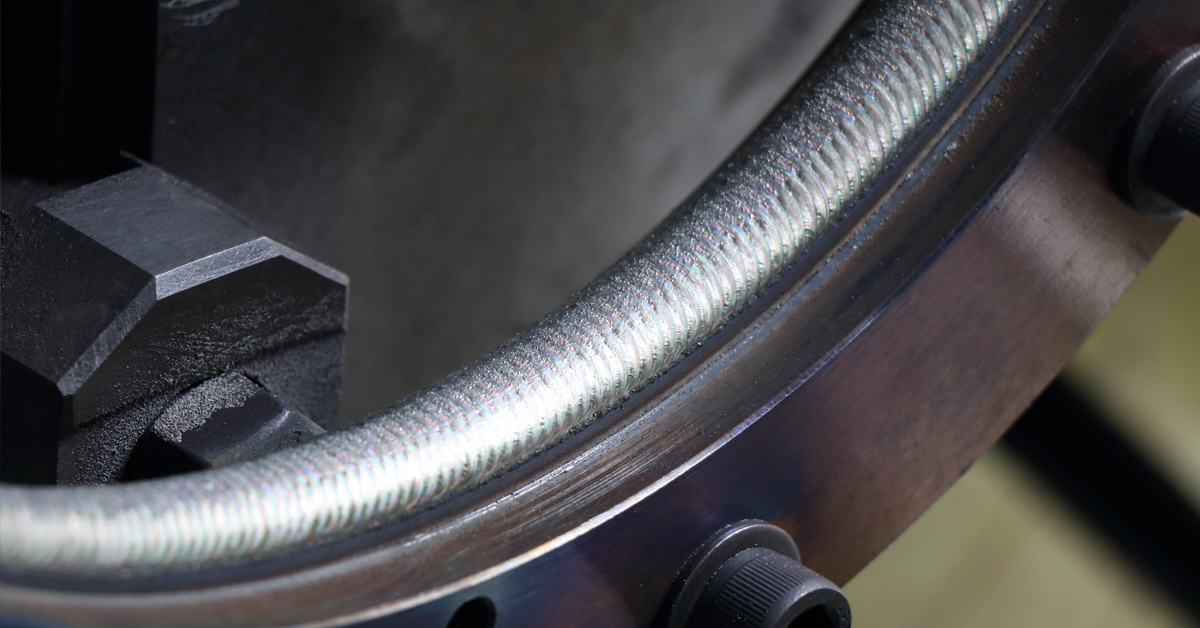

Ideal for Stellite Hardfacing
PTA is widely used for:
• Stellite 6
• Stellite 12
• Inconel 625
• Nickel-based alloys
Lower Repair Cost
PTA significantly reduces maintenance expenses compared to valve replacement.
Mature Industry Technology
PTA has been successfully used in industrial valve manufacturing and repair for decades.
When Is Laser Cladding Better?
Laser cladding becomes the preferred choice when:
High Precision Is Required
Especially for:
• Control valves
• Precision flow valves
• Small ball valves
Distortion Must Be Minimized
Critical in:
• Nuclear valve repair
• Aerospace components
• Thin-wall structures
Ultra-Low Dilution Is Needed
Laser cladding preserves the original alloy chemistry more effectively.
How to Choose Between PTA and Laser Cladding
Choose PTA If You Need:
• Thick overlays
• Cost-effective repair
• Large valve refurbishment
• Heavy wear resistance
• High deposition efficiency
• Batch production repair
Choose Laser Cladding If You Need:
• Ultra-high precision
• Minimal thermal distortion
• Thin coatings
• Complex geometries
• Premium corrosion resistance
• High-end industrial applications
Why More Valve Manufacturers Choose PTA Welding Systems
Despite the rise of laser technology, PTA remains one of the most trusted valve hardfacing methods worldwide.
Its advantages include:
• Stable welding quality
• Lower operational cost
• High productivity
• Excellent wear resistance
• Strong metallurgical bonding
• Automation compatibility
PTA is especially popular in:
• API valve manufacturing
• Power plant valves
• Petrochemical valves
• Mining slurry valves
• Offshore valves
Professional PTA Valve Hardfacing Solutions
We specialize in advanced PTA welding systems and valve hardfacing solutions for industrial applications.
Our solutions include:
• PTA valve welding machines
• Automatic valve hardfacing systems
• Stellite overlay welding
• Inconel cladding solutions
• Valve seat repair equipment
• Customized automation systems
Why Choose Our PTA Welding Equipment?
Stable Plasma Arc Technology
Ensures consistent welding quality.
Precise Powder Feeding System
Improves powder utilization and reduces operating costs.
Automated Control System
Suitable for batch valve repair and manufacturing.
Extensive Industry Experience
Serving customers in:
• Oil & Gas
• Power Generation
• Petrochemical
• Mining
• Marine Engineering
worldwide.
If you are looking for:
• PTA welding machines
• Valve repair equipment
• Stellite hardfacing systems
• Automatic valve cladding solutions
contact us today for professional technical support and customized solutions.
FAQ: PTA vs Laser Cladding
1.Is PTA More Wear Resistant Than Laser Cladding?
Both technologies can provide excellent wear resistance. However, PTA is generally better for thick wear-resistant overlays used in severe service conditions.
2.Can Laser Cladding Replace PTA?
Not completely.
Laser cladding is superior for precision applications, while PTA remains more economical and efficient for heavy industrial valve repair.
3.Which Process Is Better for Valve Seat Repair?
For most industrial valves:
- PTA is the more mature and cost-effective solution.
For high-precision control valves:
- Laser cladding is often the better choice.
4.What Materials Can Be Used in PTA Hardfacing?
Common materials include:
• Stellite 6
• Stellite 12
• Inconel 625
• Inconel 718
• Nickel-based alloys
• Tungsten carbide composites
5.Which Process Offers Longer Service Life?
Service life depends on:
• Coating material
• Operating conditions
• Welding quality
• Post-processing
Both PTA and laser cladding can dramatically extend valve lifespan when properly applied.
Conclusion
When comparing PTA vs Laser Cladding for valve repair, there is no single “best” solution for every application.
The right choice depends on:
• Valve type
• Operating conditions
• Required coating thickness
• Precision requirements
• Budget considerations
For most industrial valve repair applications:
PTA welding remains the most cost-effective and widely adopted solution.
For high-precision, low-distortion, premium applications:
Laser cladding offers superior technical performance.
Need expert advice for your valve repair project?
Contact us today to discuss your application and receive a customized PTA or Laser Cladding solution tailored to your industry needs.
