Hydraulic Rod Cladding Machine: How to Specify One for Cylinder Rods
A hydraulic rod cladding machine should be specified from the rod and the finished condition it has to reach, not from a machine video or a nominal power rating. For cylinder rods the inputs that matter are diameter, length, weight, cladding band, substrate material, required finish and production volume. Those inputs decide the spindle, the support arrangement, the axial stroke, the deposition process, the preheating method and the grinding allowance that follows.
For many rod applications, PTA welding suits a substantial rebuild with productive deposition, while laser cladding suits lower heat input, lower dilution or a thinner layer. The right choice comes from the rod geometry, the service condition and production economics, not from the process name.
This article starts with the rod envelope, then works through the deposition process, the specifications that set throughput, the thermal and finishing work around the cladding cell, and the acceptance test that proves the machine before sign-off.
Rod Range Comes First: Diameter, Length, Weight and Slenderness
Before comparing processes, define the rod envelope. Four factors decide whether a machine can handle the part reliably, and each one maps to a different part of the machine.
Rod diameter determines the chucking method and the practical rotational-speed range. The published three-jaw chuck clamping range on the DYY-LC501 hydraulic rod cladding machine is 25 to 400 mm. Smaller rods may need a different clamping or support arrangement, so check the low end of your production range separately from the maximum diameter.
Rod length determines the usable axial travel. The DYY-LC501 carries a 2,100 mm effective axial stroke, plus a 600 mm lift stroke and a 450 mm telescopic beam stroke for positioning. Check a long clad band against the controlled travel rather than the overall bed length. A deposit that cannot be completed in one setup brings alignment and transition problems with it.
Rod weight is not governed by the spindle alone. The support system, steady rest and tailstock all carry the part through rotation and deposition, so the weakest component in the load path sets the limit. Published capacities on the DYY-LC501 are 1,000 kg at the spindle, 600 kg at the roller carrier and 1,000 kg at the thimble tailstock.
Slenderness counts too. A long, relatively small-diameter rod can deflect between supports even when the nominal spindle capacity looks sufficient, so support spacing, rod stiffness and rotational speed have to be judged together. As a working rule, above roughly a 20:1 length-to-diameter ratio the rod will sag between chuck and tailstock. For a quotation, give the smallest and largest diameters, maximum overall length, maximum weight and the length of the area to be clad.
How a Hydraulic Rod Cladding Machine Deposits the Layer
Rod cladding is a coordinated rotary and axial process. The rod rotates while the torch moves along its axis, creating a helical deposition path with controlled overlap. Oscillation sets the bead width and the overlap between adjacent tracks.
The DYY-LC501 spindle runs from 0.01 to 2.5 r/min. A low-speed spindle is what keeps deposition controlled on a rotating cylindrical surface, and the correct speed still depends on the process parameters, the rod diameter and the target layer thickness.
The GCH6A-100 oscillator on the same machine covers 1 to 90 mm/s of swing speed and 3 to 50 mm of swing distance. Those ranges set bead width, overlap, and how efficiently a wider band can be covered.
No single motion range is the specification. Rotation, axial travel, oscillation and powder feed have to work as one system, so ask the supplier to demonstrate on your rod geometry rather than evaluating the axes one at a time.
PTA or Laser for Hydraulic Rods?
Both processes produce a metallurgically bonded layer, but they suit different process windows. The decision rests on required build-up, heat input, dilution, finishing allowance, rod geometry and annual volume.
The table below compares typical process windows, not the specification of any particular machine. Confirm it against a deposition trial on your own rod.
| Criterion | PTA | Laser | What it means for a rod |
| Build-up requirement | Usually one or two passes to rebuild a worn rod | Thinner layers, smaller finishing allowance | PTA needs less pre-machining. Laser starts from a straighter rod. |
| Heat input | Higher | Lower | Decides whether long, slender or hardened rods distort. |
| Dilution | Higher | Lower, so the first layer stays close to the powder chemistry | Matters when the deposit chemistry carries the wear resistance. |
| Deposition productivity | Higher mass per hour | Lower mass per hour | Compare finished rods per shift, not deposition rate alone. |
| Finishing allowance | More material left for final grinding | Less, when process control permits | The finished tolerance and your grinding capacity decide this. |
| Capital and integration | Lower machine cost, more finishing | Higher machine cost, less finishing | Annual volume and the application decide the investment. |
For rods the deciding factor is usually what happens after cladding. A thicker PTA layer leaves more to grind off a part that has to finish to a tight diameter tolerance. A thinner laser layer leaves less, but needs a straighter rod and tighter process control. On a mid-size rod at moderate volume the choice is commercial. On a long, slender or hardened rod, heat input makes it for you.
For the wider comparison against the coating being replaced, see the companion piece on laser cladding versus hard chrome plating on hydraulic cylinders.
Five Machine Specifications That Directly Affect Throughput
Once the process is settled, focus on the numbers that control the real cycle. A machine can carry a high power rating and still produce poor output if handling, positioning or support changes dominate the cycle.
1.Effective axial stroke. Use the controlled travel over the actual clad band, not the nominal bed length. If the band is longer than the usable stroke, the extra setup costs you productivity and alignment.
2.Minimum stable rotational speed. The lowest usable speed matters on cylindrical surfaces where the process needs a controlled low surface speed. Ask the supplier to demonstrate stable operation at the speed your rod diameter and process require.
3.Oscillator swing range and repeatability. These set bead width and overlap, and the machine has to hold the programmed motion across repeated runs, not only during a single demonstration.
4.Powder feed accuracy and repeatability. Deposition consistency depends on the feeder as much as on the power source, so ask for repeatability data under a defined test condition rather than a statement such as “stable feeding”. This is where a PTA welding system separates from a welding power source with a hopper bolted to it.
5.Duty cycle and thermal management. Rated output is not shift output. Specify the intended current range and expected duty cycle, then confirm the power source, torch and cooling system can sustain the production cycle.
Preheating and Interpass Temperature Control
Preheating belongs in the process specification, not on the accessory list. The required temperature window depends on the rod material, the deposit alloy, the geometry and the qualified procedure.
For common hydraulic-cylinder steels such as 42CrMo, cracking risk and hardness change have to be evaluated through the actual welding procedure rather than copied from a generic sheet. Specify the machine requirement instead: it has to support the preheating method, the temperature monitoring and, where the procedure calls for it, controlled interpass temperature and cool-down.
Induction heating or resistance heating can both be built into a rod cladding cell. What matters operationally is that temperature can be measured and held consistently across the working zone. Preheat and controlled cool-down also belong in the cycle-time calculation, because on a heavy rod preheat can rival deposition time.
Plan the Finishing Process Before Buying the Cladding Machine
A rod cladding machine is a deposition cell, not a finished-dimension machine. The as-deposited surface normally needs machining or grinding before the rod returns to service.
There are two common layouts. A standalone cladding cell feeds a separate turning or grinding operation, which is cheaper and easier to commission. A more integrated line coordinates handling and finishing across stations, which removes an alignment step and shortens the cycle, but only if handling between stations is reliable enough that you are not putting back the setup error you removed.
Define at specification stage how the rod is loaded and unloaded, how concentricity is controlled, how much finishing allowance the process leaves, and which finished diameter and surface condition you have to hold. Those answers stop a downstream grinding bottleneck from becoming the hidden capacity limit of the new cell.
Calculate Throughput From the Full Cycle, Not Deposition Rate Alone
Deposition time is only one part of the cycle. A practical estimate is:
Rods per shift = available production time ÷ (deposition time + preheat + loading and alignment + positioning + cool-down)
An 800 mm band deposited at an illustrative 80 mm/min axial travel speed takes about 10 minutes of deposition. Add preheat, loading, alignment and cool-down, and the same rod occupies around 40 minutes, or nine rods in an 8-hour shift. Replace every value with your own measured cycle before using the result.
| Cycle element | Illustrative value | How to treat it |
| Cladding time | 10 min | From the actual clad-band length and the qualified process speed |
| Preheat | 15 min | Time to bring the rod into the specified temperature window |
| Loading, alignment, positioning | 8 min | Chucking, support adjustment, datum and setup travel |
| Cool-down | 7 min | Controlled cool-down where the procedure requires it |
| Total cycle | 40 min | Sum of the elements above |
| Rods per 8-hour shift | 9 rods | Roughly 390 min of productive time ÷ 40 min, one machine |
Read the table for the ratio, not the number. Deposition is only a quarter of the cycle, so a higher deposition rate does not automatically mean more finished rods per shift if preheat, setup or handling is the bottleneck. Doubling the deposition rate would take output from nine rods to about twelve, and shaving five minutes off handling would do nearly as much.
Three Rod Cases and How the Decision Changes
The specification logic is easier to see on real rods. Three cases come up most often.
A standard cylinder rod, around 100 mm diameter and 1,200 mm long, with a 600 mm band to rebuild. It fits the clamping range and the controlled stroke comfortably, so PTA in one or two passes is the straightforward answer. The real decision is finishing allowance, so ask what grinding capacity sits downstream before choosing the layer thickness.
A long slender rod, around 60 mm diameter and 3,000 mm long. Support spacing and heat input now drive everything. The rod sags between centres, the steady rest that controls it also limits speed, and higher heat input is more likely to distort the part. This is where laser earns its cost, and where you ask for a demonstration on a rod of your proportions rather than a short coupon.
A repair shop running 50 mm to 300 mm at volume. All of the above apply in the same week, so the envelope is set by the widest rod and the throughput by the most common one. Two things decide the payback: changeover time between diameters, and whether preheat or grinding becomes the real bottleneck once deposition is fast enough.
Factory Acceptance Test: What to Verify Before Sign-Off
Accept the machine against a written FAT procedure using representative witness parts. A short coupon is not enough for a long rotating rod, because the support conditions and the thermal behaviour are different.
• Geometry. Clad position and length, as-deposited concentricity and straightness, measured on a representative rod.
• Metallurgy. The deposited layer, fusion line and dilution on a representative cross-section, using the inspection method agreed in the acceptance procedure.
• Hardness. The deposited layer and the heat-affected zone, measured against the qualified process requirements.
• Surface quality. An agreed level of visible defects, and the applicable NDT method for the application.
• Powder feeding. Feeder repeatability measured under a defined test condition, not accepted on a qualitative statement.
• Repeatability. Several witness parts run in sequence. A repeatable process is worth more than one successful demonstration run.
What Information Should You Send a Machine Manufacturer for a Quotation?
The fastest way to a meaningful configuration is to send engineering data rather than the machine name you are searching for.
Provide the rod diameter range, maximum rod length, maximum weight, clad-band length and position, substrate material, required cladding alloy or process requirement, finished diameter, expected annual or monthly volume, and the finishing method you have available.
If you are comparing PTA welding with laser cladding, also state which priority leads: low heat input, low dilution, high deposition rate or minimum grinding allowance. A supplier can then recommend the machine architecture around your production requirement instead of quoting a generic machine.
Frequently Asked Questions
Can a hydraulic rod cladding machine repair scored or worn cylinder rods?
Yes. A worn or scored rod can be machined to remove the damaged area, rebuilt above the target dimension and then finished by machining or grinding. The allowable preparation depth and the number of future repair cycles both matter, because repeated rebuilds reduce the remaining substrate diameter.
What specifications should I provide for a quotation?
At minimum, the rod diameter range, maximum length, maximum weight, clad-band length and position, substrate material, target finished diameter, required cladding material or process, and expected production volume. These inputs determine the spindle, supports, travel, deposition system and finishing requirements.
Is laser cladding better than PTA for hydraulic rods?
There is no universal winner. PTA is often considered when thicker build-up and productive deposition matter, while laser cladding is attractive when lower heat input, lower dilution or a thinner layer is required. Rod geometry, material, service conditions, finishing allowance and production volume decide it, and a laser cladding system and a PTA cell can serve different rods in the same shop.
Do hydraulic rods need preheating before cladding?
That depends on the rod material and the qualified welding procedure. For steels commonly used in hydraulic cylinders, the machine should support the required heating and temperature-monitoring method rather than rely on a fixed temperature copied from a generic specification sheet.
Request an Engineering Evaluation
A hydraulic rod cladding machine should be specified around the complete production process: the rod envelope, the deposition method, the support arrangement, the thermal control, the finishing operation and the acceptance criteria. The numbers that matter for a purchase decision are the ones that describe what the machine will do on your actual rods, not its maximum power or headline deposition rate.

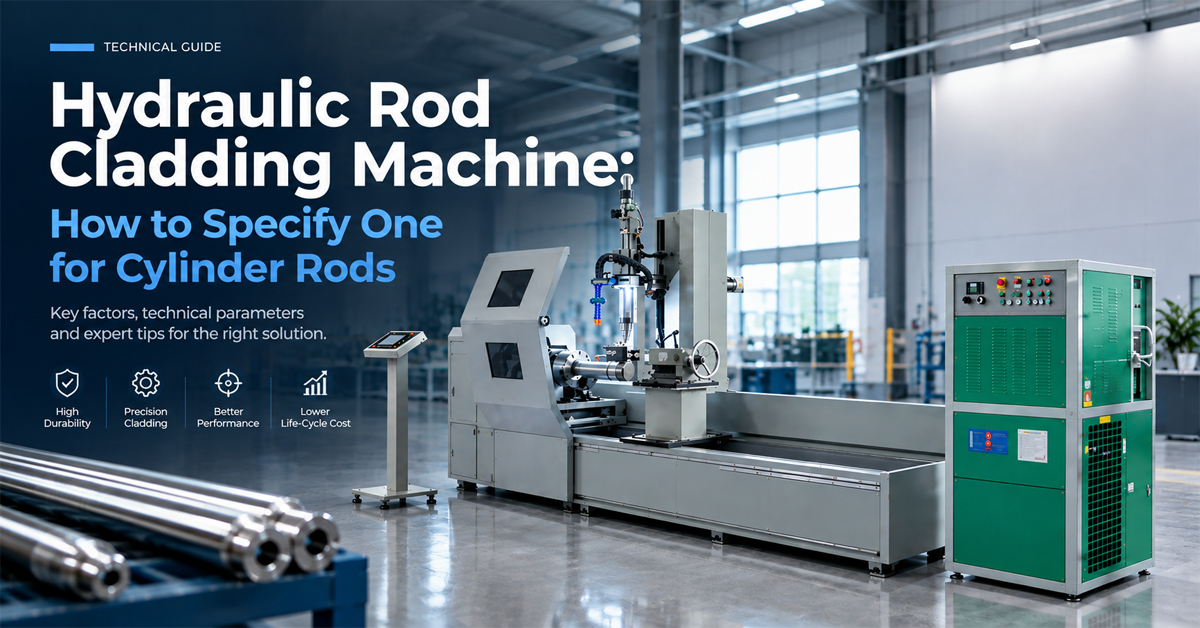

The DYY-LC501 hydraulic rod cladding machine is the published reference configuration for hydraulic rod PTA cladding, including a 2,100 mm effective axial stroke, a 0.01 to 2.5 r/min spindle range and defined chuck, spindle and support capacities. Final configuration still has to be checked against your rod dimensions, material, cladding band and production requirements.
For an engineering evaluation, contact us with your rod diameter range, maximum length and weight, clad-band length and substrate material, and we will assess a suitable configuration against your actual rods.
