Hammer Mill Hammers: Wear, Repair and PTA Hardfacing

Hammer mill hammers work in a moving stream of material, so their wear pattern depends on the feedstock, impact conditions, rotor design and hammer geometry. When the working edge rounds off or material loss changes the hammer profile, the next step is not automatically to replace the part—or to add a harder layer. The condition of the base metal, mounting features and final geometry must be checked first.

PTA hardfacing may be worth evaluating when the wear is concentrated on a service surface and the underlying hammer remains suitable for reuse. It is not a universal repair for cracked, deformed or structurally damaged parts. For flat workpieces, Duomu lists the DNC2000 Planar Plasma Surfacing System for PTA surfacing of hammer mill blades. Whether a particular hammer can be processed depends on its dimensions, material, fixture arrangement and required finished profile.



Why Do Hammer Mill Hammers Wear Out?

The term “hammer wear” can describe several different conditions. A hammer processing abrasive feed may lose material gradually from its working face. A unit exposed to repeated impact may chip at an edge or develop local damage. Changes in feed material, moisture, contaminants, rotor speed or operating clearances can also change where wear occurs. The right repair decision begins with identifying the actual failure mode, rather than selecting a hardfacing alloy from hardness alone.

Inspect the working profile and the parts that locate the hammer on the rotor. A rounded edge, uneven material loss, a local notch and a crack are not equivalent problems. Mounting holes, slots, pins and contact faces may determine whether a hammer can be safely returned to service even when the main wear surface appears repairable.

Observed condition	What to check	Why it matters
Gradual wear or a rounded working edge	Compare the remaining profile with the drawing or a serviceable reference hammer.	The required build-up and final profile can be estimated only after the functional geometry is understood.
Uneven wear across a batch	Compare feed conditions, hammer orientation, mounting positions and wear on neighbouring parts.	Uneven wear may reflect operating conditions or part position, not simply an unsuitable alloy.
Chipping, cracks or deformation	Inspect the base material and highly loaded areas; use appropriate examination where needed.	A deposited layer does not restore a compromised substrate or correct a distorted part by itself.
Wear around a mounting hole, slot or contact face	Check attachment dimensions and the rotor or pin interface.	If the locating features are outside allowable limits, replacement may be more appropriate than surface restoration.



When Is PTA Hardfacing a Suitable Repair Option?

PTA (Plasma Transferred Arc) hardfacing uses a plasma arc to melt alloy powder and a controlled portion of the substrate, creating a deposited layer that is metallurgically bonded to the base material. On suitable workpieces, the process can add a wear-resistant alloy to a defined surface without replacing the entire part. The practical question is whether the hammer design and its remaining condition allow the added layer to perform its intended function.

PTA hardfacing is worth assessing when:

•  The main body of the hammer and its attachment features remain structurally sound.
•  Wear is concentrated in an area that can be reached and covered by the surfacing process.
•  The substrate material is known or can be identified, and its compatibility with the proposed thermal cycle and filler alloy can be evaluated.
•  The restored profile can be achieved with a realistic deposition and finishing allowance.
•  The part value, replacement lead time, batch quantity or maintenance plan makes a repair route worth comparing with replacement.

Replacement or a more detailed engineering review may be necessary when the hammer is cracked through a critical section, badly bent, damaged around a mounting feature, or too worn to retain the required geometry. A repair plan should also consider the complete rotor set: differences in hammer mass, profile or installation position may affect the balance and operating behaviour of the assembly. The machine or rotor manufacturer’s requirements take precedence over a generic repair recommendation.



How PTA Hardfacing Is Applied to Hammer Mill Blades

For hammer mill hammers, a repeatable process starts with the part—not with a standard parameter sheet. The hammer’s drawing, base material, wear map and target profile determine how the work should be prepared and fixtured.

Stage	Engineering questions to resolve
Inspection and measurement	Which surfaces are worn? Are there cracks, distortion or damage at attachment features? What dimensions define a serviceable profile?
Surface preparation	Can coatings, oxides, embedded material and damaged surface metal be removed without leaving an unsound substrate? Is pre-machining required?
Alloy and process planning	Does the wear involve mainly abrasion, impact or a combination? What balance of wear resistance and toughness is needed? Is the alloy compatible with the substrate?
Fixture and motion setup	Can the hammer be held securely and repeatably? Can the torch reach the intended area without interference? Can the planned path maintain the required coverage?
PTA deposition	Have current, travel, powder feed, overlap and heat management been qualified for this part and alloy? These values should be established through testing, not copied from a generic article.
Finishing and verification	Does the deposit need machining or grinding to recover the required profile? Which dimensional, surface and material checks are required before release?

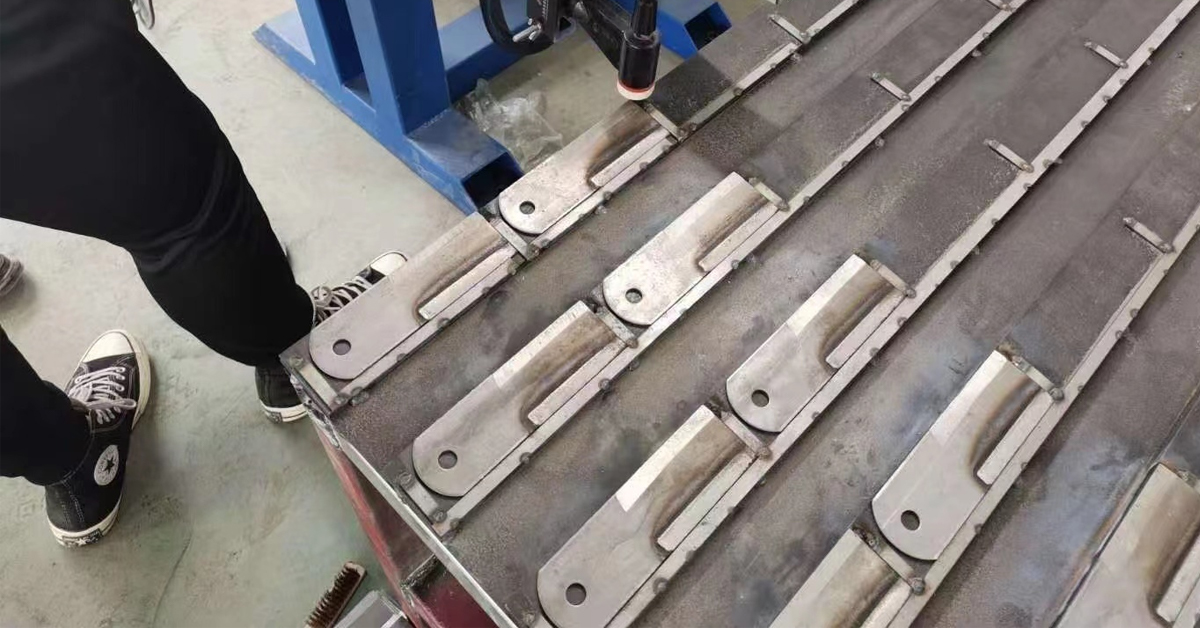

One practical point is easy to overlook: the fixture is part of the process. If the hammer sits at a different height or angle from one cycle to the next, torch access and bead overlap may change. For repeat production, workholding, location references and the program path should be designed around the actual hammer geometry and the required coating area.



Selecting an Automated Surfacing System for Hammer Mill Blades

Duomu’s DNC2000 Planar Plasma Surfacing System is described on the product page as an automatic PTA system made up of a plasma power supply, control console and tooling. Hammer mill blades are specifically listed among the flat workpieces it is intended to surface. The page also describes a customisable working platform and a control arrangement based on two-axis CNC programming, with CNC/PLC configuration options described in the product information.

The published DNC2000 configuration lists an effective stroke of 1,900 mm for the transverse fixed-arm suspension beam, 150 mm for the welding-torch lifting mechanism and 2,300 mm for the walking base. It gives a reference footprint of approximately 3,600 × 3,400 × 1,900 mm and notes that the working platform can be customised. These figures describe the published machine configuration; they should not be read as direct guarantees of maximum hammer dimensions. Fixture height, clamp clearance, torch angle, travel envelope and the deposit location all affect the usable workpiece envelope.
