Extruder Barrel Bore Repair: How to Assess Wear and Choose a Cladding Process
A worn bore does not automatically mean a barrel must be replaced. The right decision depends on the damage, barrel construction, remaining wall thickness, screw-to-barrel clearance and the acceptance criteria the restored component must meet.
When an extruder shows inconsistent output or processing instability, the bore is only one part of the investigation. The screw and barrel work as a matched pair, so restoring the nominal diameter alone may not solve the original problem. Repair planning should begin with inspection evidence, not an assumption that laser cladding or plasma transferred arc (PTA) overlay is always the best option.
Depending on the component condition and design limits, the options may include precision machining to an approved oversize, liner replacement, a cladding process followed by finish machining, or complete replacement.
| Key principle: establish the wear pattern, substrate condition and required finished geometry before choosing a repair route. |
Can a Worn Extruder Barrel Bore Be Repaired?
Sometimes. Repair may be worth evaluating when the damage is confined to a recoverable surface region and the component can be restored within its engineering limits. Cracking, significant distortion, a failed liner or insufficient remaining wall thickness may make cladding unsuitable or make replacement the safer route. A bimetallic barrel, a nitrided bore and a uniform steel bore should not be treated as interchangeable cases.
Use the first inspection to decide whether a repair study is justified, whether additional examination is needed, or whether the component should be replaced. Do not begin deposition until the repair boundary and acceptance criteria are understood.
| Inspection finding | What it may indicate | Recommended next step |
| Measurable wear with no confirmed structural damage | A repair route may be feasible, depending on material and geometry. | Map the bore and inspect the screw; compare options against the drawing and clearance requirements. |
| Deep scoring, pitting, local cracking or uncertain liner condition | The damage mechanism or structural condition is not yet understood. | Carry out appropriate inspection before deciding whether material removal, cladding or replacement is viable. |
| Insufficient wall thickness or geometry that cannot be restored within limits | A safe finished geometry may not be achievable by surface restoration. | Evaluate an engineered liner solution or complete replacement. |
Start with the Wear Pattern, Not the Deposition Process
Extruder barrel wear can have several causes. Mineral or glass fillers may increase abrasive wear; certain formulations and additives may contribute to corrosion; and abnormal contact, contamination, overheating or screw misalignment may cause local damage. The dominant mechanism depends on the processed material, machine design, operating history and the location of the wear.
The shape and distribution of the damage provide useful clues. A gradual increase in bore diameter along the barrel differs from a local groove, pitted area or isolated region of scoring. Record where the wear occurs and whether it appeared after a process upset or alongside changes to the screw. A surface repair that does not address the underlying cause may leave the original operating problem unresolved.
Inspect the screw as part of the same assessment. Flight diameter, profile and alignment influence operating clearance. A bore can measure within a target range on its own and still be an unsuitable match for a worn or damaged screw.

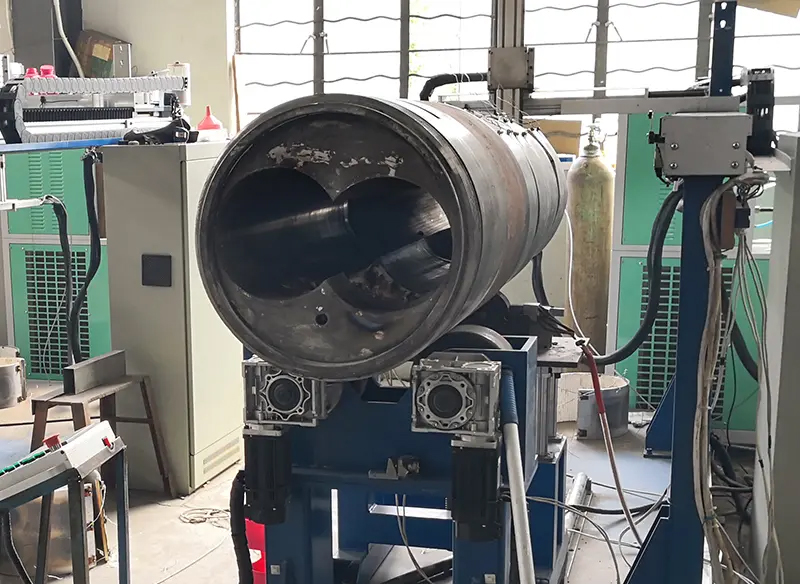

Measurements That Determine Whether Repair Is Practical
A single bore-diameter reading is not enough to define a repair boundary. After cleaning the component, measure at multiple axial positions and, where the inspection method allows, at more than one angular orientation. The measurement plan should reveal taper, ovality and localised wear that one reading could miss.
• Bore geometry: Record internal diameter, wear distribution, roundness or ovality, cylindricity and any taper relevant to the drawing or operating clearance.
• Surface condition: Document grooves, pitting, corrosion, embedded material and suspected cracks. Select non-destructive examination based on the material, geometry and suspected defect.
• Barrel construction: Confirm the base material and whether the bore is nitrided, coated, sleeved or bimetallic. Existing layers or liners can determine where a repair can begin and end.
• Remaining wall and geometry changes: Check wall thickness where accessible, including areas near ports, transitions and features that may constrain the repair boundary.
• Screw condition and operating clearance: Record relevant screw dimensions and obtain the required clearance from the equipment or component design.
The result should be a concise inspection record: where the wear occurs, how much material is missing, which materials or surface layers are present, which dimensions must be recovered and which limits cannot be exceeded. If those facts remain unknown, choosing a cladding process is premature.
Repair, Re-Line or Replace?
Cladding is one option among several. The comparison should reflect the barrel construction and the function that must be recovered, rather than deposition cost alone.
| Repair route | When it may be considered | Key limits to check |
| Precision boring or honing to an approved oversize | The design permits a larger finished bore and the matched screw or assembly can accommodate it. | Remaining wall thickness, final geometry, screw clearance and whether the required surface properties can still be achieved. |
| Sleeve or liner replacement | The barrel is designed for a replaceable liner, or an engineered liner solution is feasible. | Fit and alignment, joining method, thermal behaviour, pressure requirements and the original design. |
| Laser cladding or PTA overlay followed by machining | The substrate is suitable, the damaged region is recoverable and the process head can access the required bore surface. | Material compatibility, heat input, dilution, cracking risk, deposit thickness, machining allowance and inspection access. |
| Complete replacement | Structural damage is serious, the liner is unserviceable or the required geometry cannot be restored safely. | Lead time, installation constraints, total downtime and the risk that a repair cannot be qualified. |
For a fair comparison, include the full restoration scope: removal of damaged material, preparation, fixturing, deposition, heat control, finish machining, inspection, screw matching and reinstallation. A repair is worthwhile only if it can recover the required function with acceptable technical risk and total cost.
Laser Cladding vs. PTA Overlay for Internal-Bore Repair
Laser cladding and plasma transferred arc (PTA) overlay may both be considered for suitable metal components. Neither process is the default answer for every internal bore. Selection depends on the base material, required deposit, allowable heat exposure, needed layer thickness and the equipment’s ability to reach and process the bore consistently.
| Selection point | What to assess for laser cladding | What to assess for PTA overlay |
| Material and deposit | Confirm substrate compatibility, powder choice, bond quality and the properties needed after machining. | Confirm substrate compatibility, filler choice, dilution and the deposit properties required by the application. |
| Heat input and dilution | Results depend on power, travel speed, powder delivery, overlap and geometry; validate the actual process window. | Results depend on current, travel speed, powder feed, torch setup and procedure; use representative trials where needed. |
| Access inside the bore | Check optical-head dimensions and position, focal conditions, powder delivery and access along the repair length. | Check torch dimensions, nozzle and shielding arrangement, powder delivery and torch-to-work distance. |
| Finishing and inspection | Allow enough machining stock and confirm the deposited layer can be finished to the specified geometry. | Plan layer thickness and bead profile around the machining allowance and the required inspection method. |
Process suitability must be established for the actual component. A process name or equipment brochure does not prove a repair can meet the required geometry and material properties. Where the material combination or repair boundary is uncertain, a representative procedure trial and an agreed inspection plan can provide better evidence than headline specifications alone.
What a Controlled Repair Process Should Include
Before production repair begins, agree the work sequence and acceptance criteria for the specific barrel construction and selected process. A controlled plan typically addresses the following points:
1.Define the repair boundary from the inspection record and identify material that must be removed before deposition.
2.Prepare the surface as required, without introducing an uncontrolled change in bore geometry. Preparation depth should follow inspection findings rather than a universal allowance.
3.Specify the deposit and procedure, including alloy, layer strategy, machine setup, travel or rotation method, monitoring requirements and machining stock.
4.Confirm consistent access and deposition conditions. For a deep bore, alignment, process-head access, powder delivery, shielding and travel stability require planning.
5.Inspect the deposit before finishing. Check for defects relevant to the process and acceptance plan, and define what correction is permitted if a local issue is found.
6.Finish-machine and verify the part. Check final dimensions and any specified material or surface properties before release.
A nitrided barrel, a bimetallic construction and a uniform steel bore may require different repair procedures. The approved method should reflect the actual component and the responsible engineering team’s requirements.
What a Published Barrel Cladding Case Demonstrates

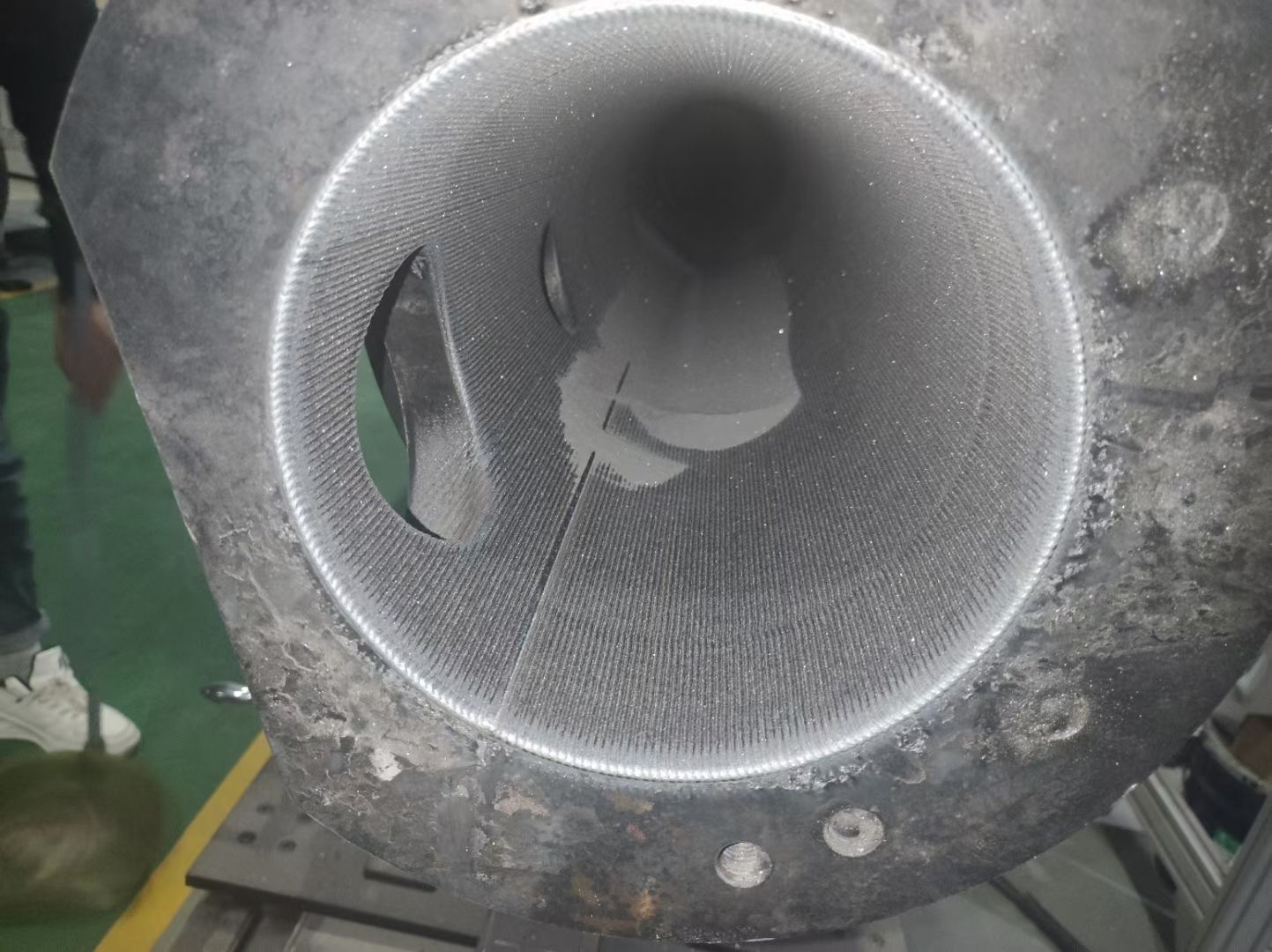

• Duomu’s Laser Cladding Barrel application provides a practical example of internal-bore cladding for a large industrial workpiece. The published case describes a barrel with a 190 mm internal diameter and a length of 1,380 mm. It reports a three-layer deposition strategy, using stainless-steel powder for the first two layers and a high-hardness alloy powder for the final layer. The reported project results include hardness of HRC 65–70, with no cracks or pores reported.
• This case illustrates how a layered deposition approach can be applied to an extruder barrel. The appropriate process and achievable results depend on the actual base material, wear condition, selected deposit, machining requirements and inspection criteria. The reported hardness and defect observations apply to this specific project and should not be treated as guaranteed results for other workpieces.
• When evaluating a similar application, engineers should review the barrel material, original wear condition, required repair dimensions, screw-to-barrel clearance and final inspection requirements. These details help determine whether internal-bore cladding is suitable and what machine configuration and process evaluation may be required.
What Should Be Verified Before the Barrel Returns to Service?
A deposited layer is not, by itself, proof that a repair is complete. Acceptance criteria should be agreed before work begins and should follow the drawing, service requirement, material specification and inspection procedure. Depending on the component, the final record may include:
• Finished geometry: final internal diameter at specified positions, plus roundness, cylindricity, straightness or concentricity where required.
• Surface finish: confirmation that the machined surface meets the drawing or process requirement and has no unacceptable scoring or machining marks.
• Deposit integrity: visual examination and suitable non-destructive examination where required by the risk assessment or acceptance plan.
• Material properties: hardness or other properties only when specified, including the test method, test location and acceptance range.
• Screw compatibility: confirmation that the restored bore and inspected screw meet the required operating clearance as a matched assembly.
The checks must match the intended service. A hardness value alone cannot establish dimensional accuracy or deposit integrity, and a good surface appearance cannot confirm the required screw clearance.

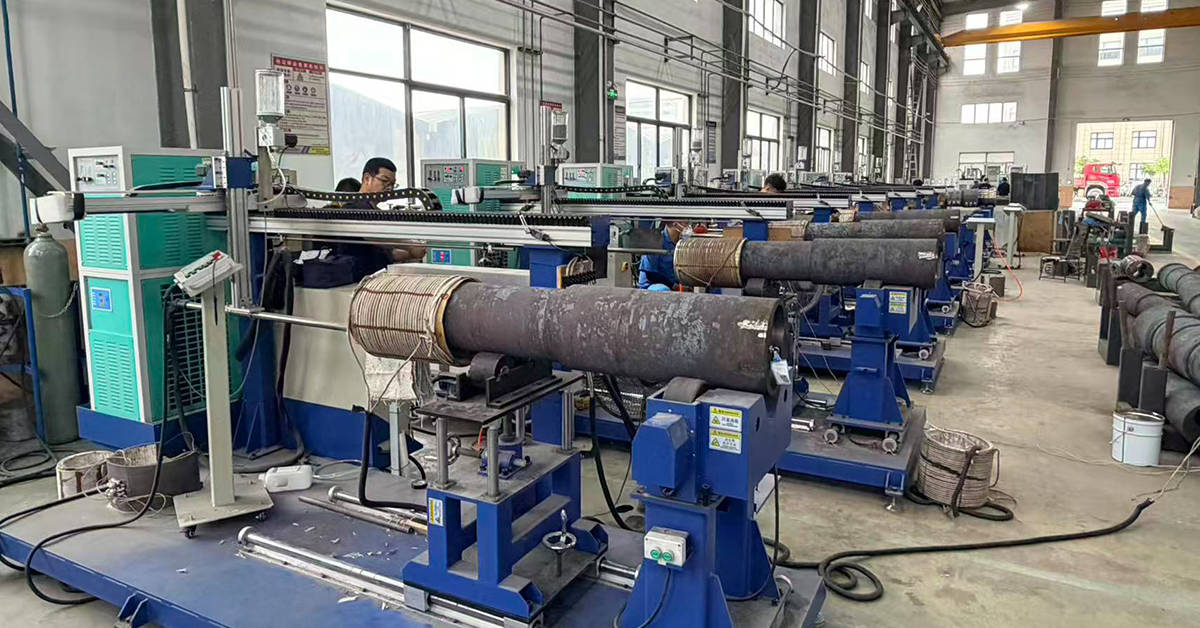

How to Evaluate an Internal-Bore Cladding Machine
A useful equipment discussion starts with the workpiece drawing and intended repair, not just the nominal bore diameter. Before selecting a machine, prepare the following information:
• Workpiece envelope: minimum and maximum bore diameter, effective repair length, overall barrel length, weight, handling method and required working orientation.
• Material and damage: base material, existing liner or treatment, wear location, estimated material loss, visible defects and whether the full bore or a local region needs attention.
• Process and finish requirements: candidate process and deposit material, target finished dimensions, machining allowance and inspection requirements.
• Production needs: repair frequency, batch size, changeover requirements, automation level, operator access and available downstream machining.

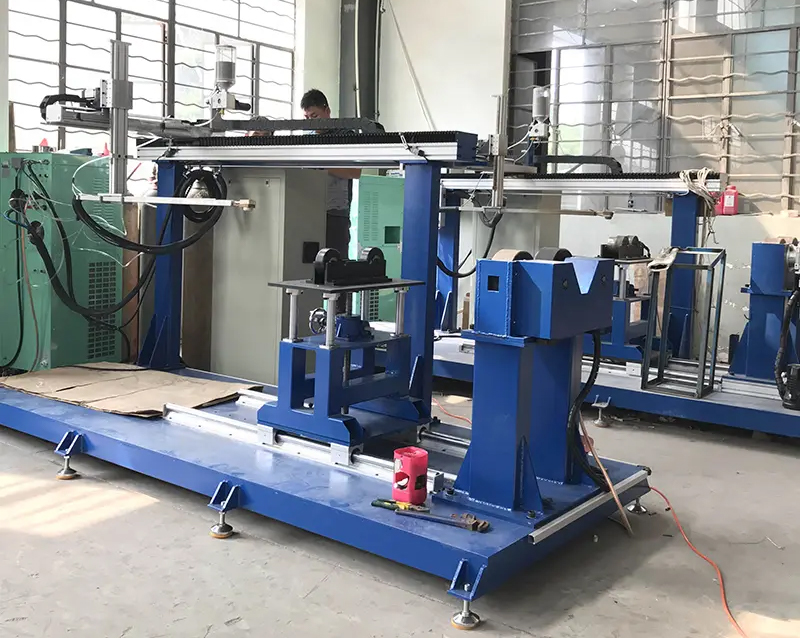

Duomu’s DSL-LC401 barrel inner-hole cladding machine lists an effective axial stroke of 1,500 mm and a rated load of 1,000 kg. These published figures are a starting point, not a complete fit decision. Bore geometry, process-head access, fixture arrangement, part length and actual load distribution must also be checked against the proposed setup.
Do not assume that the published laser-cladding case described above was completed on the DSL-LC401. The equipment and project should only be linked in that way if the original project record confirms it.
Frequently Asked Questions
Does every worn extruder barrel need to be replaced?
No. Some barrels may be candidates for machining, liner replacement or cladding, depending on their construction and remaining condition. Cracking, serious distortion, insufficient wall thickness or an unserviceable liner may make replacement more appropriate.
Is laser cladding always better than PTA overlay for an internal bore?
No. The selection depends on the substrate, deposit requirements, access, heat input, target geometry and equipment configuration. A representative trial may be needed before committing to production repair.
What information is needed for an initial assessment?
Provide bore dimensions and effective length, barrel material and construction, wear location and depth if known, screw condition, required finished size and clear photographs of the damaged area. A drawing and inspection report make the assessment more reliable.
Can a barrel return to production immediately after cladding?
Not simply because deposition is complete. Finish machining and the specified dimensional and material checks must be completed before the repaired barrel is accepted for service.
What determines whether a cladding machine is suitable?
The required working envelope, bore geometry, component length and weight, process-head access, fixture arrangement, process requirements and finishing plan all matter. A nominal stroke or load value alone is not enough to confirm compatibility.
Discuss Your Internal-Bore Cladding Application
If you are evaluating equipment for extruder barrel bore cladding, share the component drawing, bore diameter, effective repair length, barrel material, damage photographs and target finished dimensions with Duomu’s engineering team. These details help establish whether the proposed setup is worth evaluating and what additional inspection or process trials may be needed.
