Air Compressor Rotor Repair: When Laser Cladding Is a Practical Option

Air compressor rotor repair using laser cladding

When an air compressor rotor is worn, the first question is not which welding process to use. It is whether the damaged rotor can be restored without compromising the remaining substrate, the finished geometry, or the operating requirements of the compressor. For localized surface damage, laser cladding is one repair route because it can rebuild lost material with a metallurgically bonded layer that is then machined back to the required dimension.

That distinction matters in compressor rotor repair because the deposited layer is only one part of the job. The finished rotor still has to meet its dimensional and surface requirements, and rotating components may also have runout, concentricity, or balance requirements. A practical repair plan therefore connects the damage, remaining base material, overlay material, deposition process, and final machining into one sequence.

OurCladding already lists laser cladding of air compressor rotors as an application for wear and dent repair, wear-resistance enhancement, and corrosion protection. The purpose of this article is to answer the next question a maintenance or engineering team has: when does repair make sense, and what information is needed to execute it correctly?

The practical test: A rotor is a good candidate for surface repair when the remaining substrate is sound, the damage can be defined and removed, and the repaired part can be brought back to its required geometry and inspection condition.



What Should Be Checked Before Air Compressor Rotor Repair?

Rotor repair should begin with a condition assessment, not with a machine quotation. Two components can both be described as “worn” while requiring different repair routes. Localized material loss can be a surface-restoration job; cracking, severe deformation, or extensive structural damage can change the decision completely.

•  Damage location: identify the journal, seal area, profile, edge, or other affected surface and map the damaged zone.
•  Damage depth: measure the current condition. Do not estimate the build-up from appearance alone.
•  Base material: confirm the rotor material and any known heat treatment or hardness condition.
•  Remaining substrate: establish whether the material beneath the damaged area is sound and suitable for continued service.
•  Finished geometry: confirm the original drawing or required final diameter, tolerances, surface finish, runout, concentricity, and balance requirements where applicable.



What Types of Rotor Damage Can Be Suitable for Surface Restoration?

Observed condition First engineering question Possible repair direction
Localized wear / diameter loss How much sound material remains, and what is the required finished size? Controlled build-up followed by machining, when the substrate is acceptable.
Scoring or isolated surface damage How deep is the score, and can the damaged material be completely removed? Prepare to sound metal, rebuild the zone, then restore the surface.
Corrosion-related material loss Is the damage only surface-level, or has section strength been affected? Surface rebuilding may be possible if the remaining material is adequate.
Cracking or severe deformation Is the damage structural or outside the qualified repair zone? Detailed engineering assessment; another repair route or replacement may be more appropriate.





Repair or Replacement? The Decision Comes Before the Coating

Repair becomes attractive when the component has a high replacement cost, difficult lead time, or a valuable precision-machined geometry, while the damage itself remains localized. But “expensive to replace” is not a technical justification by itself. The remaining substrate must still meet the mechanical and dimensional requirements of the rotor.

Before choosing laser cladding, determine how much material can be removed during preparation and what finished dimension must be recovered afterward. Do not specify a nominal coating thickness first and try to make the machining fit later. The finished dimension should drive the build-up calculation.



Why Laser Cladding Can Fit Compressor Rotor Repair

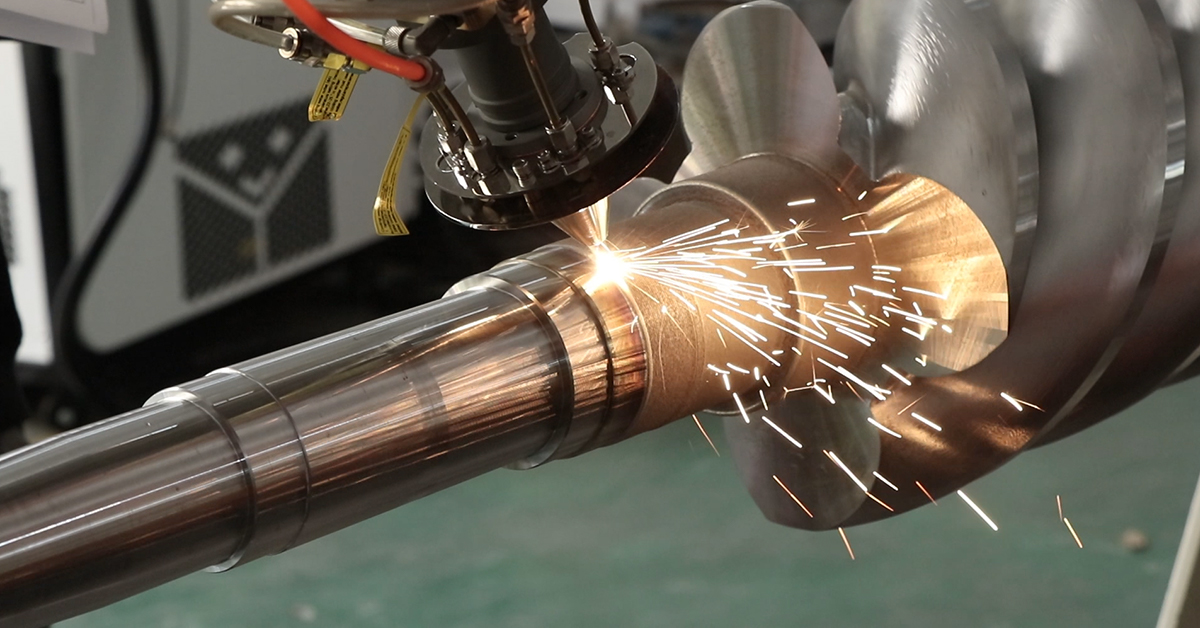

Laser cladding on an air compressor rotor during surface repair

Laser cladding is particularly useful when material needs to be added to a defined region while controlling heat input, dilution, and deposit placement. The laser creates a localized melt pool while alloy powder is fed into the processing zone. The deposited material forms a metallurgical bond with the substrate and can then be machined or ground to the required surface condition.

For a rotating part, the advantage is practical rather than theoretical. The repair team can plan the deposit around the damaged geometry and leave a controlled allowance for finishing. That helps when the repaired area has to return to a precise cylindrical or profiled form.

OurCladding application reference: Laser Cladding of Air Compressor Rotors



Air Compressor Rotor Repair Workflow

1. Inspect and document the rotor Record the damaged area, dimensions, surface condition, and any runout or profile information required by the repair procedure. Keep photographs and measurements together so the process plan can be traced back to the actual component.

2. Remove damaged or unsound material Prepare the surface to a stable condition for deposition. Loose material, contamination, heavy oxidation, or unsound metal should not simply be covered by a new layer.

3. Calculate the build-up from the finished dimension Work backward from the required final size. Account for preparation removal, the achievable deposited profile, and machining allowance. Wear depth alone is not a complete build-up specification.

4. Select the overlay material Match the material to the failure mechanism and operating environment. Wear, corrosion, temperature, and contact conditions can lead to different choices.

5. Set up the laser cladding system The laser source, cladding head, powder feeder, motion system, workholding, and shielding need to function as one process. For a cylindrical rotor, rotation and alignment are part of process control.

6. Qualify and control deposition parameters Laser power, travel speed, powder feed, spot size, overlap, and path planning interact. Use parameters qualified for the actual base material, alloy, geometry, and process rather than treating a generic setting as universal.

7. Machine or grind the repaired surface The deposit should leave enough controlled allowance for finishing. The machining step restores the final profile, dimension, surface finish, and clearances required by the component.

8. Complete inspection Use the inspection methods defined by the repair specification. Depending on the component, this can include dimensional checks, surface examination, hardness, runout/concentricity, non-destructive examination, and balancing or dynamic checks where required.



How Much Cladding Should Be Applied to a Worn Rotor?

There is no universal cladding thickness for every compressor rotor. The correct build-up depends on the required finished dimension, material removed during preparation, the cladding process, and the machining allowance needed to achieve the final condition.

A better specification is: finished dimension → preparation depth → required deposited material → machining allowance. This approach is more useful than simply stating “add 1 mm” or another fixed thickness without reference to the actual component.

If the damage varies around the circumference, the process may also need a different deposition path or machining strategy from a uniform layer. For that reason, current measurements and the rotor drawing should be part of the inquiry.



Choosing a Cladding Material for Compressor Rotor Repair

The right overlay is determined by the surface problem and the service environment. Hardness alone is not enough. An abrasive-wear application, a corrosion-exposed surface, and a surface that also sees sliding contact may require different material properties.

OurCladding's air-compressor-rotor application describes tungsten-based, nickel-based, and stainless-steel powder systems as examples used for different performance requirements. Those examples should not be treated as a universal material prescription; the final selection needs to match the base material, service conditions, and qualified repair process.



What Matters When Selecting a Laser Cladding Machine for Rotor Repair?

Laser cladding machine repairing a cylindrical compressor rotor

For repeated in-house repairs, the equipment should be specified around the rotor and the complete process, not only around laser power. A machine can have an adequate laser source and still be a poor fit if the workholding, powder delivery, motion accuracy, or access does not match the component.

•  Workpiece diameter, length, weight, and support requirements
•  Rotational accuracy, alignment, and workholding for cylindrical components
•  Laser source and usable process range
•  Powder feeder stability and controllable feed rate
•  Cladding head access, stand-off, shielding, and powder delivery
•  Motion-system or robot reach and repeatability
•  Process parameter control and repeatability between components
•  Integration with cooling, shielding, extraction, and safety systems
•  Machining and inspection capability after deposition

For equipment planning, see DYY-LC501 Laser Cladding & PTA Cladding Machine for Shaft Repair and Cylindrical Components and Automated Laser Cladding Machine.



When Laser Cladding May Not Be the Right Repair Route

Laser cladding is not a universal substitute for rotor replacement or every other repair process. A different route may be required when the damage is structural, cracks extend beyond a qualified repair zone, too little sound material remains, or the finished geometry cannot be restored reliably.

The same principle applies to the root cause. If repeated wear is driven by an unresolved operating or alignment condition, restoring the surface alone may not prevent recurrence. A good repair plan therefore considers both the component and the service condition.



Planning a Compressor Rotor Repair?

Send the part data, not just the machine requirement.

A practical inquiry can include the rotor drawing, base material, damaged-area measurements, photographs, required final dimensions, and any inspection, runout, concentricity, or balancing requirements. With those inputs, the repair route and equipment configuration can be discussed around the actual component instead of a generic coating specification.

Start with the relevant OurCladding application: Air Compressor Rotor Laser Cladding Application. For machine selection, see Laser Cladding System.



Air Compressor Rotor Repair FAQ

Can an air compressor rotor be repaired instead of replaced?

Sometimes. Repair is worth evaluating when the damage is localized, the remaining substrate is suitable, and the finished component can be restored to the required dimensional and inspection condition.

Can laser cladding repair a worn compressor rotor?

For suitable surface damage, laser cladding can rebuild lost material with a metallurgically bonded overlay that can then be machined or ground to the required dimensions. The exact repair route depends on the rotor material, damage, geometry, and service requirements.

How do I know whether a compressor rotor is suitable for laser cladding?

Check the damage depth and location, remaining substrate, base material, finished dimensions, and required inspection condition. Structural cracking or severe deformation can change the repair decision.

How much cladding should be added to a worn rotor?

Calculate from the required finished dimension, preparation depth, deposition capability, and machining allowance. Wear depth by itself is not a complete build-up specification.

What material is used for compressor rotor laser cladding?

The material depends on the failure mechanism and service environment. OurCladding lists tungsten-based, nickel-based, and stainless-steel systems as examples for the air-compressor-rotor application; the actual alloy should be qualified for the specific job.

Does laser cladding affect rotor dimensions or balance?

The repair intentionally adds material and then restores the finished dimensions through machining or grinding. Runout, concentricity, and balance requirements should be defined in the repair procedure for the specific rotor.

How much does air compressor rotor repair cost?

There is no reliable flat price. Cost depends on the damaged area, preparation, overlay material, deposition time, machining, inspection, and any additional balancing or finishing. A drawing, damage measurements, material information, and photographs are needed for a meaningful quotation.

What information should I send for a compressor rotor repair quote?

Provide the rotor drawing or dimensions, base material, damaged area and depth, photos, required final dimensions, operating conditions where relevant, and inspection requirements. Repair quantity is also useful when equipment is being considered for repeated work.
