DYY-LC501 Laser Cladding & PTA Cladding Machine for Shaft Repair and Cylindrical Components

This equipment is a high-end hybrid processing system that integrates Laser Cladding and Plasma Transferred Arc (PTA) Cladding into a single platform. It enables rapid switching between two advanced surface enhancement technologies, ensuring stable operation and maximum process flexibility.

Featuring a modular design and intelligent control system, the machine delivers high efficiency, high coating density, low dilution rate, and excellent metallurgical bonding. It significantly improves wear resistance, corrosion resistance, high-temperature performance, and fatigue strength of critical components, making it an ideal solution for high-value remanufacturing and surface engineering applications.

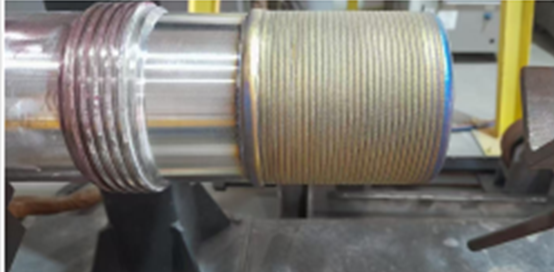

The system is particularly suitable for cylindrical and shaft-type workpieces, including stabilizers, plungers, drill pipes, motor shafts, and similar industrial components.

Send email to us

Product Detail

Product Tags

Product Advantages

● Dual-Process Integration — One Machine, Multiple Applications

- Supports both Laser Cladding and PTA Cladding processes
- Flexible switching based on material type, performance requirements, and cost considerations
- Covers both precision repair and thick-layer deposition applications

● Superior Cladding Quality

-  Strong metallurgical bonding with high adhesion strength
-  Low dilution rate and minimal heat-affected zone (HAZ)
-  Dense coating with low porosity and low crack sensitivity
-  Capable of multi-layer and multi-pass high-quality deposition

● High Efficiency and Cost Performance

-  Replaces two separate dedicated systems with one machine
-  Reduces equipment investment and floor space requirements
-  Enhances production flexibility and throughput

● Intelligent Control and Stable Operation

-  Integrated CNC/PLC control system
-  Digital management and storage of process parameters
-  Supports automatic powder feeding, path planning, and process monitoring
-  User-friendly operation with high reliability

High-precision machining with a small heat-affected zone and strong metallurgical bonding. Suitable for cylindrical components, it significantly enhances wear resistance and corrosion resistance, extending service life.

Product Parameters

Technical Specifications
No.	Item	Unit	Parameter
1	Manipulator Travel (X, Y, Z)	mm	6000 × 1000 × 4000
2	Auxiliary Mechanism Vertical Stroke	mm	4000
3	Chuck Diameter	mm	500
4	Headstock Load Capacity	kg	2000
5	Max. Welding Speed (Single Torch)	mm/min	1000
6	Max. Rotation Speed	r/min	1
7	Oscillator Amplitude	mm	0-50
