Laser cladding technology has become a critical tool in modern manufacturing, repair engineering, and surface treatment industries. As precision requirements continue to rise, selecting the right laser cladding machine involves far more than just evaluating the price. You must consider laser performance, system stability, process capability, supplier qualifications, and long-term maintenance costs.
This comprehensive guide covers application analysis, core equipment specifications, system configuration, intelligent features, supplier selection, and budget planning—helping you make the right investment.
What Is a Laser Cladding Machine and Why Choose It?

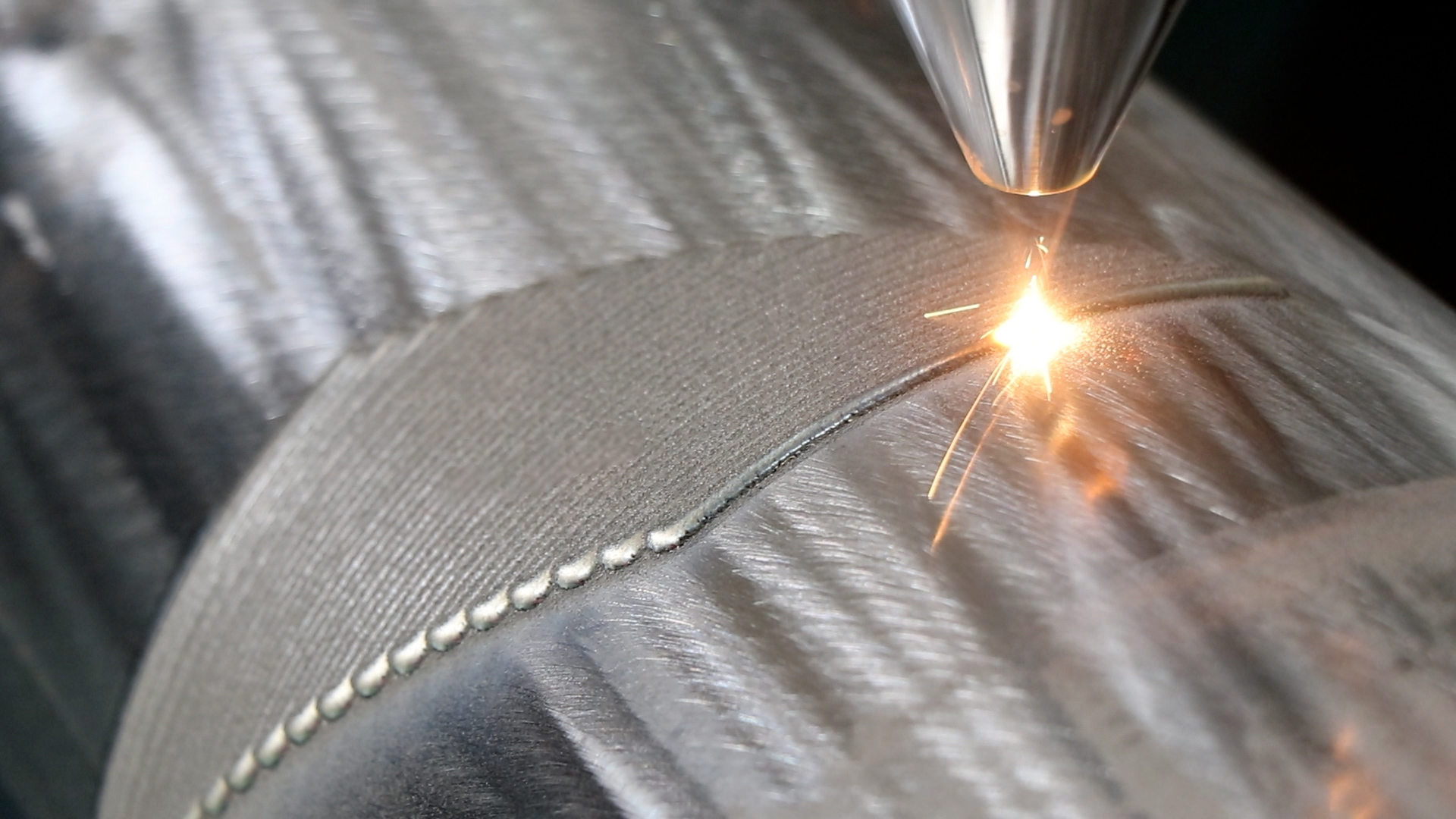

A laser cladding machine uses a high-energy laser beam to melt metallic powder or wire and deposit it onto the surface of a substrate. This creates a metallurgically bonded coating with exceptional strength and performance.
Key advantages include:
- Very low dilution rate (typically <5%)
- Metallurgical bonding between coating and substrate
- Small heat-affected zone and minimal deformation
- High material utilization (over 90%)
- Suitable for both repair and surface enhancement
Common applications:Mold and die repair、Shaft and roller refurbishment、Aviation component strengthening、Metallurgical equipment repair、High-temperature/wear-resistant coating deposition.
Key Requirements to Clarify Before Purchasing a Laser Cladding Machine
A correct needs assessment determines more than half of your purchasing decisions.Before selecting equipment, answer the following:
1. What is the substrate material?
- Different materials require varying laser stability and energy density:
- Carbon steel / cast iron → Standard fiber laser
- Nickel alloys / titanium alloys → Higher stability and power
- Aluminum alloys → Sensitive to wavelength and energy distribution
2. Are you using metal powder or wire?
- Powder cladding → High precision, flexible, most common
- Wire cladding → Lower cost, suitable for large-area coating
3. What are the size and type of your workpieces?
- Small parts → Desktop or robotic systems
- Medium/large parts → Gantry-type or multi-axis CNC systems
- Ultra-large parts → Customized or mobile cladding solutions
4. Is the main purpose repair or mass production?
- Repair → High precision and stable motion control
- Production → High power + efficient feeding system
Laser Specifications: The Core of Every Laser Cladding Machine
The laser is the heart of the entire system. These factors matter most:
1. Laser Types
- Fiber laser (mainstream & highly stable) → Suitable for 90% of applications
- Diode laser (lower heat input) → For temperature-sensitive materials
- CO₂ laser (less common today) → Limited specialized uses
2. Recommended Laser Power
| Application | Recommended Power |
| Thin layers, small components | 1.5–3 kW |
| General repair jobs | 3–6 kW |
| Large penetration / large components | 8–12 kW |
| Heavy-duty wear-resistant coatings | 12–20 kW |
Power is not “the higher the better”.
It must match your powder type, required depth, and working conditions.
3. Beam Quality and Spot Stability
These directly determine cladding uniformity.
Choose lasers with:
- Low M² value (high beam quality)
- Adjustable or adaptive spot size
- Long-term stability without beam drift

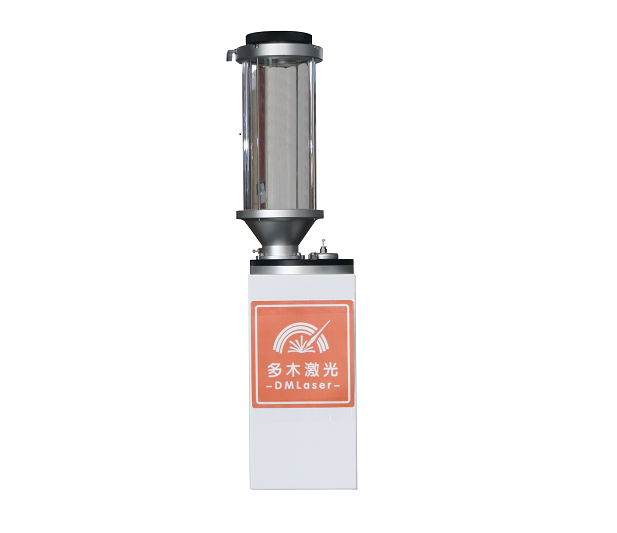

Powder Feeding System and Nozzle Design: Key to Coating Quality
The powder feeding subsystem strongly affects material utilization and coating consistency.
1. Nozzle Types
- Coaxial nozzle (recommended) → High efficiency, even coating geometry
- Side-feed nozzle → Good for special angles or local repair
2. Critical Powder Feeder Specifications
Look for:
- Stable powder flow rate
- Adjustable powder delivery speed
- Powder utilization ≥ 90%
- Compatibility with 30–150 μm powder sizes
3. If using wire feeding Ensure:
- High-precision wire feeder motors
- Smooth wire guidance
- Compensation for wire straightness deviation
Motion System and Control Precision Determine Stability and Productivity
Laser cladding demands extremely high positional accuracy.
1. Types of Motion Systems
• Industrial robot systems → Flexible, ideal for complex surfaces
• 3-axis / 5-axis CNC tables → High precision, good for mass production
• Gantry systems → For large or long components
• Robot + linear track hybrid → Large workspace & flexible
2. Key Performance Indicators
Repeatability: ≤ ±0.03 mm
Speed control: 0.1–1500 mm/min
Closed-loop molten pool control support
Automatic path planning and edge detection
FAQ — Frequently Asked Questions
1.Does laser cladding produce strong coatings?
Yes—laser cladding produces metallurgically bonded coatings with superior strength.
2.What materials can be clad?
Steel, cast iron, stainless steel, Inconel, cobalt alloys, nickel alloys, titanium, and more.
3.Is laser cladding expensive?
Upfront cost is higher, but long-term savings are significant due to reduced downtime and material efficiency.
4.What is the typical coating thickness?
0.5 mm to 3 mm per layer, depending on application.
Conclusion: What Is the Best Way to Choose a Laser Cladding Machine?
Selecting a laser cladding machine is essentially choosing a complete manufacturing solution, not just a piece of equipment.
By clearly defining your application, materials, desired coating performance, and budget, you can quickly identify the correct laser, feeding system, motion platform, and automation features. A trusted supplier will ensure consistent process quality, long-term stability, and lower operating costs.
Fortunately, Shanghai Duomu Industrial Co., Ltd., as a leader in the cladding and surface enhancement industry, offers complete process solutions and cladding equipment. Simply share your requirements with us, and we will provide you with a professional surface treatment solution.
