PTA hardfacing (Plasma Transferred Arc hardfacing) is a surface welding/cladding process widely used to create wear-resistant and corrosion-resistant protective layers on metal components. By using a plasma arc to melt alloy powders and deposit them onto the substrate surface, the process forms a metallurgical bond, resulting in high bonding strength between the coating and the base material.
PTA hardfacing is commonly applied in industries such as oil & gas, automotive, mining, power generation, and heavy equipment manufacturing for component strengthening and repair.
What Is PTA Hardfacing?
PTA hardfacing, also known as Plasma Transferred Arc hardfacing, is not intended to join two components together like conventional welding. Instead, it is designed to create a functional alloy layer on the surface of a component, improving its wear resistance, corrosion resistance, and service life.
This makes PTA hardfacing an ideal solution for components exposed to abrasion, erosion, impact, and corrosive environments.
How Does PTA Hardfacing Work?

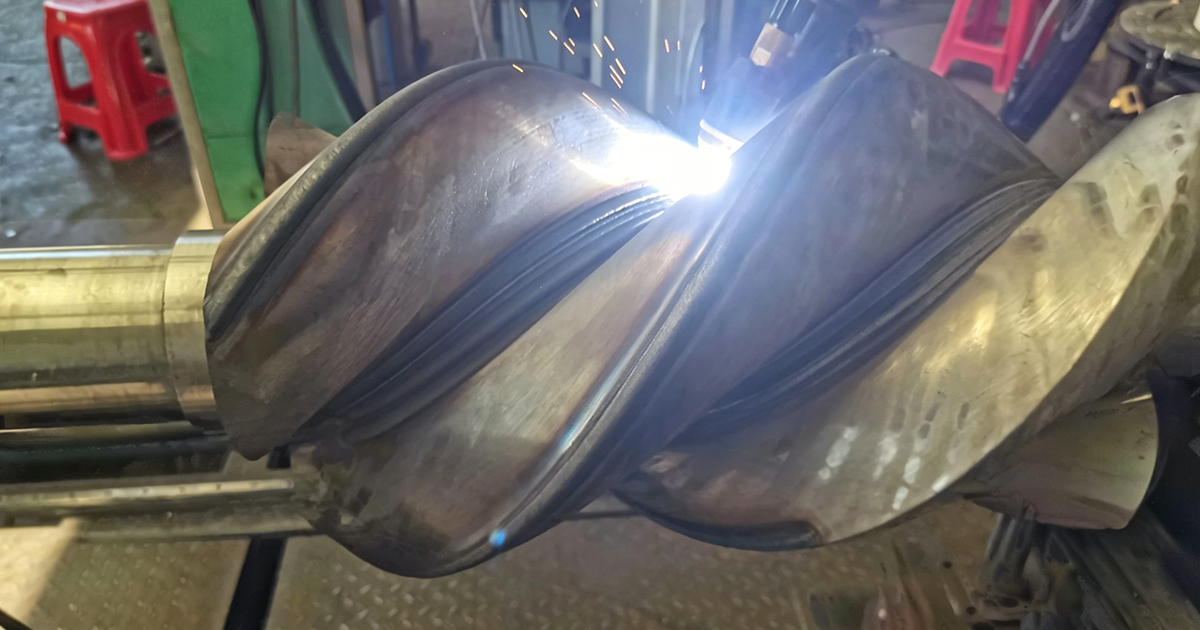

The core of PTA hardfacing is the plasma arc heat source. The system first establishes an arc between a tungsten electrode and the nozzle, generating a high-temperature plasma arc. Alloy powder is then fed into the arc zone, where it is instantly melted and deposited onto the workpiece surface.
As the molten material solidifies on the substrate, it forms a dense and uniform overlay layer with strong metallurgical bonding.
Because PTA hardfacing offers high deposition efficiency and low dilution rates, it can achieve excellent coating performance with relatively low heat input. A single PTA layer typically has a thickness of around 3–4 mm, depending on the equipment, materials, and process parameters.
What Materials Are Used in PTA Hardfacing?
PTA hardfacing can process a wide range of metal and alloy powders, including:
- - Cobalt-based alloy powders
- - Nickel-based alloy powders
- - Iron-based wear-resistant alloy powders
- - Carbide composite powders
- - Tungsten carbide and chromium carbide powders
Each material is suited to different working environments:
- - Cobalt-based alloys perform well under high temperatures and severe corrosion
- - Iron-based alloys provide a cost-effective wear solution
- - Carbide-based materials are ideal for high-abrasion applications
Material selection is usually based on wear conditions, operating temperature, corrosive media, and budget requirements.
Advantages of PTA Hardfacing
PTA hardfacing offers several significant advantages:
1. Concentrated Heat Input
The plasma arc provides concentrated heat, allowing for stable penetration depth and consistent coating quality.
2. Low Dilution Rate
Low dilution helps maintain the designed alloy composition, ensuring stable surface performance.
3. Strong Metallurgical Bond
Unlike mechanical bonding methods, PTA hardfacing creates a metallurgical bond, resulting in stronger adhesion between the coating and the substrate.
4. High Automation Potential
The process is highly suitable for automated and batch production, improving efficiency and repeatability.
These benefits make PTA hardfacing particularly suitable for components requiring high hardness, superior wear resistance, and strong bonding strength.
Typical Applications of PTA Hardfacing
PTA hardfacing is widely used in industries such as:
• Oil & gas
• Mining
• Power generation
• Automotive
• Valve manufacturing
• Construction machinery
Typical components include:
• Valve seats
• Valve sealing surfaces
• Drilling tools
• Pump shafts
• Impellers

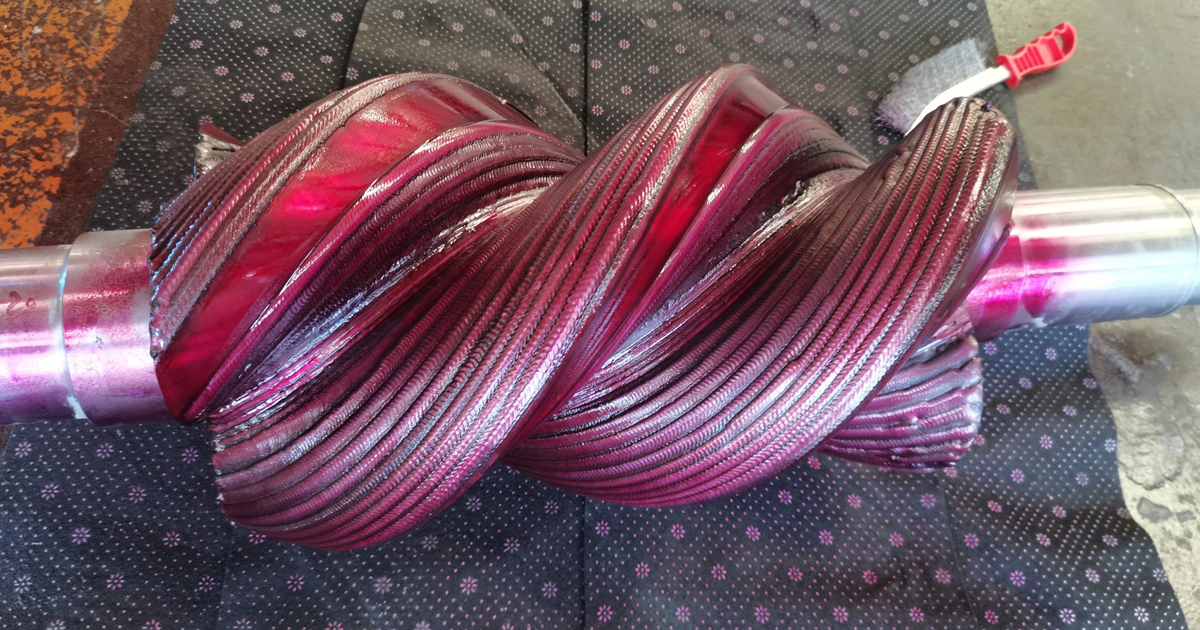

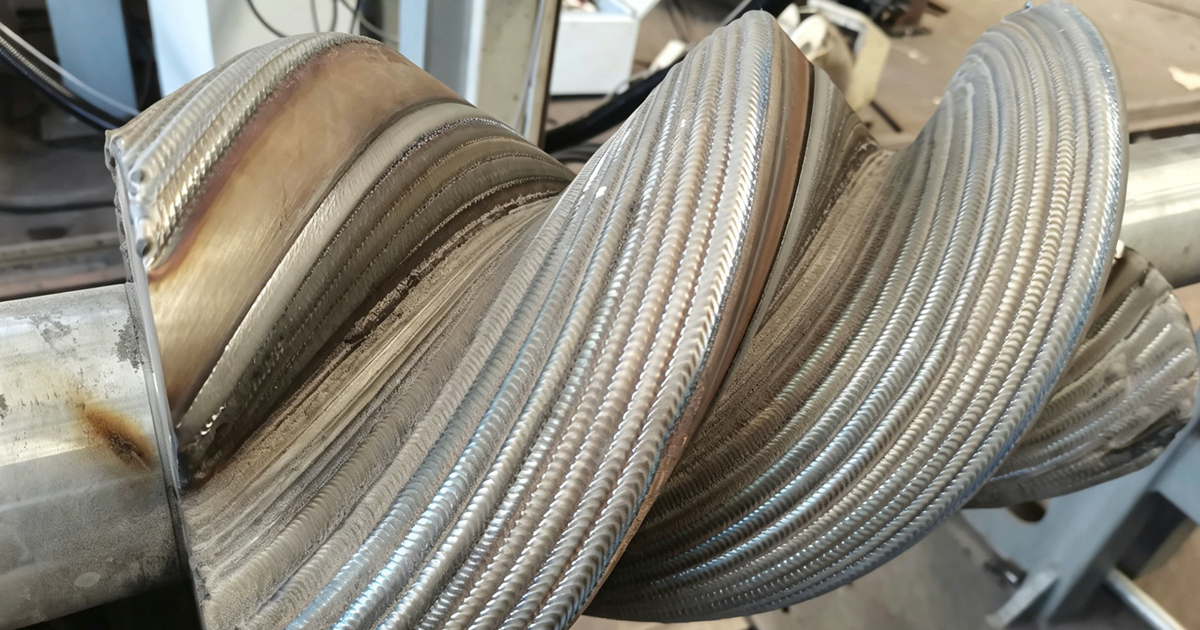

• Screw components
• Wear-prone surfaces
In these applications, PTA hardfacing helps:
• Reduce wear
• Delay corrosion
• Repair worn parts
• Extend maintenance intervals
PTA Hardfacing vs. Other Surface Engineering Processes
1.PTA Hardfacing vs. Laser Cladding
Compared with laser cladding, PTA hardfacing generally has higher heat input, but also higher single-layer deposition efficiency, making it more suitable for thicker overlays and batch production.
Laser cladding is better suited for high precision, minimal heat-affected zones, and thin-layer applications.
2.PTA Hardfacing vs. MIG/TIG Welding
Compared with MIG/TIG welding, PTA hardfacing can use powder materials, offering greater flexibility in alloy selection and improved coating performance.
MIG/TIG processes are more limited in terms of material options and surface enhancement capability.
3.PTA Hardfacing vs. Thermal Spraying
The key difference between PTA hardfacing and thermal spraying is that PTA creates a metallurgical bond, while thermal spraying mainly relies on mechanical adhesion.
As a result, PTA coatings generally provide:
- - Higher density
- - Better bonding strength
- - Improved durability
Key Quality Control Factors in PTA Hardfacing
Successful PTA hardfacing depends heavily on stable process parameters, including:
- Powder feed rate
- Welding current
- Travel speed
- Gas flow rate
- Torch angle
- Overlap ratio
Parameter instability may cause:
- Uneven coating thickness
- Abnormal dilution
- Surface defects
After welding, quality inspection typically includes:
- Thickness measurement
- Hardness testing
- Non-destructive testing (NDT)
These inspections ensure the coating is free from:
- Cracks
- Porosity
- Delamination
For critical components, quality control is just as important as the deposition process itself.
Which Industries Benefit Most from PTA Hardfacing?
PTA hardfacing is particularly valuable for companies dealing with:
• Severe wear
• Corrosive environments
• High-temperature impact
• High-value component repair
It is especially suitable for industries such as:
• Valve manufacturing
• Mining
• Oil & gas
• Power generation
• Heavy machinery
For businesses requiring large-scale, consistent surface enhancement, PTA hardfacing also offers strong automation advantages.
Frequently Asked Questions (FAQ)
1. Is PTA hardfacing the same as plasma welding?
Not exactly. Plasma welding is mainly used for joining materials, while PTA hardfacing is used to create a functional surface layer. Both use plasma arcs, but their purposes differ.
2. How thick is a PTA hardfacing layer?
A single layer is typically 1–6 mm thick, and multiple layers can be deposited for thicker overlays depending on process requirements.
3. How hard is a PTA coating?
PTA coatings can achieve high hardness, often exceeding HRC 50, with some carbide systems reaching HRC 60–68, depending on the alloy powder.
4. What parts can be repaired with PTA hardfacing?
Common repair applications include:
Valve seats 、Pump shafts 、Impellers 、Drilling tools 、Screws 、Wear liners
5. Is PTA hardfacing expensive?
Although equipment and consumable costs are relatively high, PTA hardfacing often provides better long-term value for high-value parts, especially where downtime costs are significant.
6. What is the difference between PTA and conventional TIG/MIG welding?
PTA uses powder feeding and creates a metallurgical bond with lower dilution and less distortion, while TIG/MIG generally uses wire feeding and produces higher dilution and deformation.
7. Can PTA hardfacing be done manually?
PTA hardfacing is generally performed using automatic or semi-automatic systems. Manual operation is not recommended due to process complexity and safety requirements.
Conclusion
PTA hardfacing is a highly effective surface enhancement technology that combines performance, durability, and industrial practicality.
Its core value lies not simply in adding material to the surface, but in creating a durable metallurgically bonded working layer that significantly improves:
• Wear resistance
• Corrosion resistance
• Service life
For industrial companies seeking to extend component life and reduce maintenance costs, PTA hardfacing is a highly valuable solution worth serious consideration.
