Against the backdrop of accelerated development in deep, ultra-deep, and highly abrasive formations, PDC (Polycrystalline Diamond Compact) drill bits demand enhanced wear resistance and erosion resistance for their cutting wings, tooth seats, and flow channels.
Plasma Transfer Arc Welding (PTAW), characterized by low dilution rates, metallurgical bonding, and minimal heat-affected zones, has emerged as the mainstream surface strengthening solution for PDC drill bit manufacturing and repair. This technology enables oil and gas companies to achieve greater penetration rates, reduce bit replacement frequency, and optimize overall costs.
What is a PDC drill bit? Why is surface strengthening necessary?
PDC drill bits are fixed-cutter bits that rely on continuous scraping by PDC blades to break rock. Their structure includes key components such as cutting wings, PDC blades, nozzles, and cuttings evacuation channels. They perform exceptionally well in formations like shale. However, under drilling fluids with high solids content and intense abrasive erosion, the flute/tooth seat is prone to wear and erosion failure, which in turn affects the Rate of Penetration (ROP) and service life.
Advantages of PTAW
- Low dilution rate (typically 2%–5%): High retention of alloy composition ensures greater stability in hardness and wear resistance.
- Metallurgical bonding with minimal heat-affected zone: Strong bonding strength and superior resistance to spalling, with minimal impact on substrate microstructure, making it ideal for precision load-bearing areas.
- Automation and CNC compatibility: Easily integrated with robotic/CNC systems to achieve consistent forming and enable mass production.
Typical Applications on PDC Drill Bits

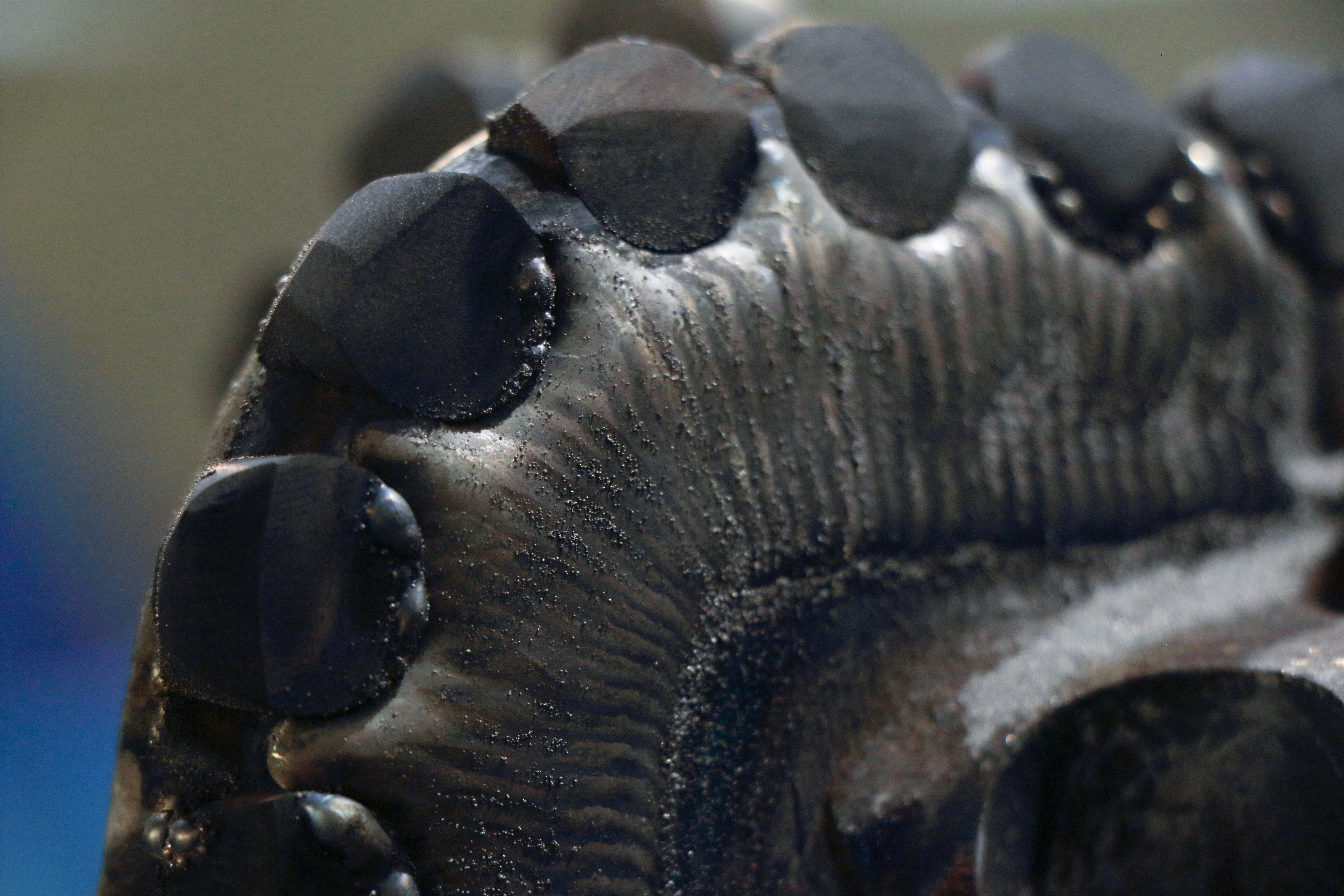

1. Wear-Resistant Layer Cladding on Cutting Wings

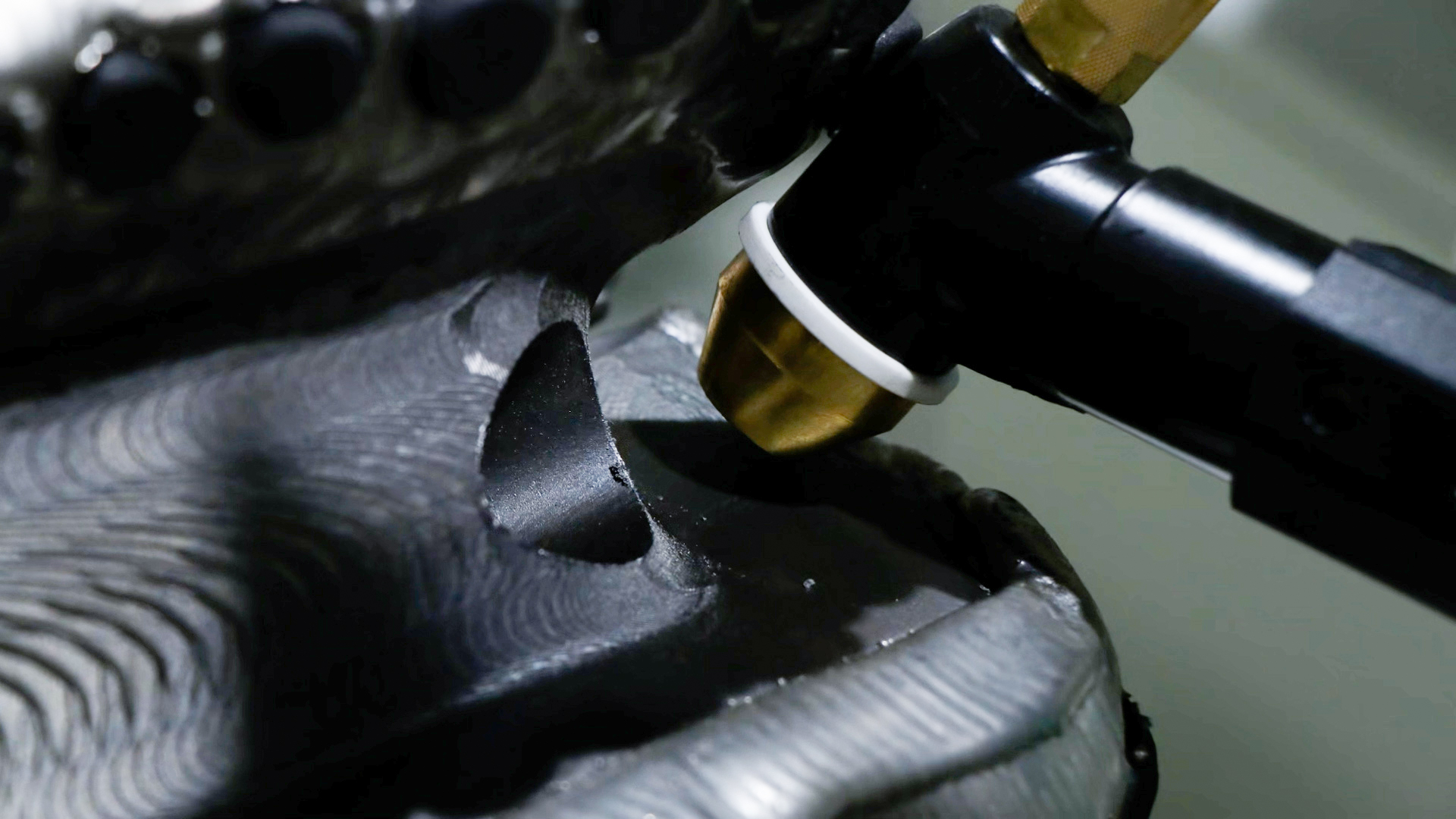

Perform PTAW cladding on the cutting wings and the upstream surface of the flow channels to enhance resistance against abrasive erosion and sand-carrying flow erosion, thereby delaying degradation of the wing surfaces and edges.

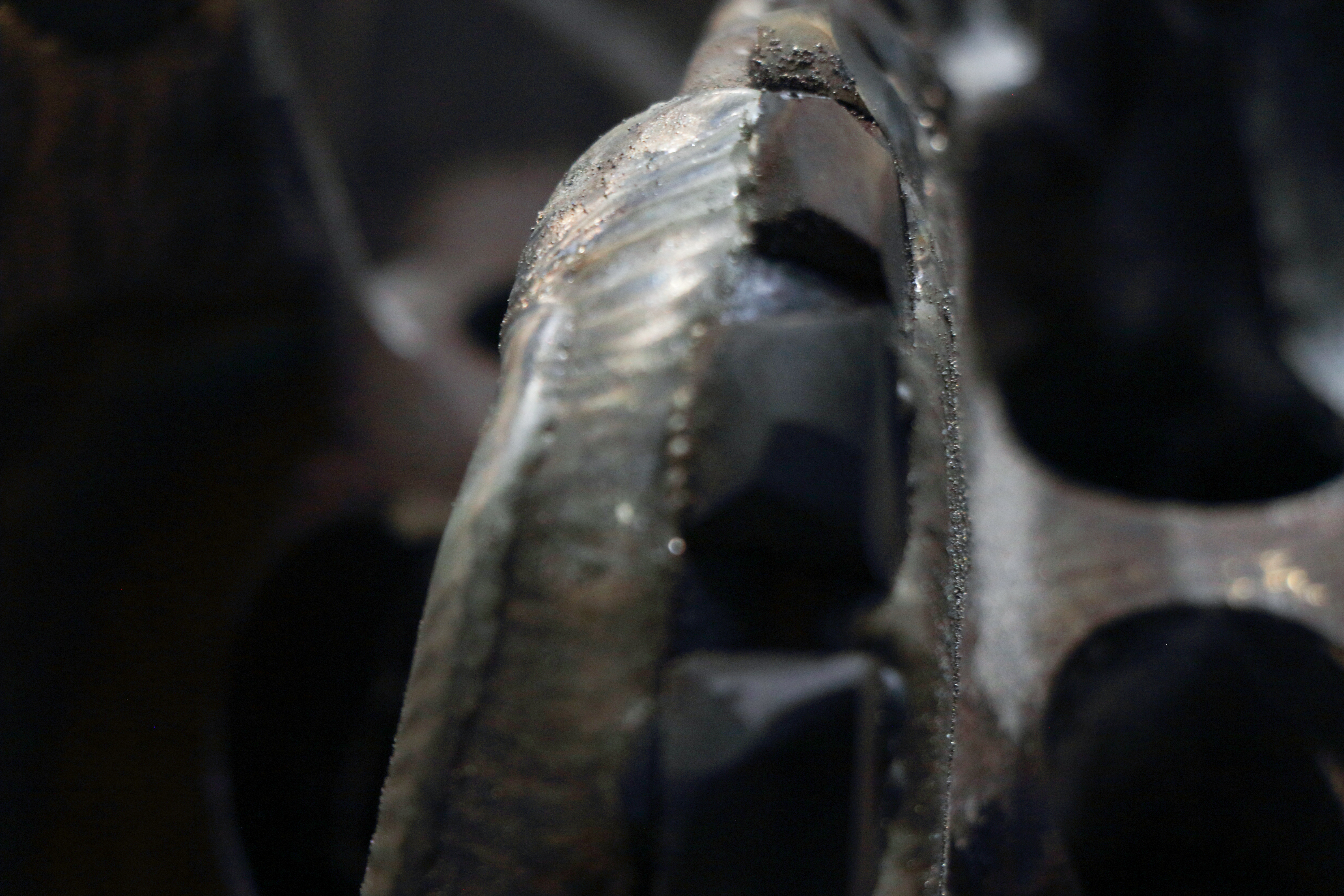

2. PDC Tooth Holder/Blade Peripheral Reinforcement
Hardmetal cladding around the tooth holder periphery reduces the risk of blade loosening or detachment caused by substrate deformation, enhancing blade edge retention stability.
3. Repair and Remanufacturing
Weld repair and cladding reconstruction are applied to worn or locally chipped blade wings and flow channels, restoring geometry and wear resistance to achieve cost-effective remanufacturing turnaround.
PTAW is also widely adopted in the industry for stabilizers and drill tool hardfacing, demonstrating its maturity and reproducibility.
Frequently Asked Questions (FAQ)
Q1 What is PTAW technology?
A: PTAW (Plasma Transferred Arc Welding) is a surface cladding and strengthening technology. It utilizes a plasma arc as a heat source to deposit alloy powder onto the substrate surface, forming a dense, high-hardness metallurgical bonded layer. Its advantages include low dilution rate (2–5%), high bond strength, and controllable cladding layer thickness (1.5–5 mm).
Q2. Why is PTAW suitable for PDC drill bits?
A: The flanks and seats of PDC drill bits are subjected to high abrasive environments for a long period of time, and are prone to peeling or failure due to conventional welding or spraying; PTAW's metallurgical bonding layer is abrasion- and impact-resistant, which significantly extends the life of the drill bit and reduces the frequency of bit changes.
Q3. How much longer can a PTAW-reinforced PDC drill bits last?
A: According to industry practice, the life of a strengthened bit can be increased by 2-5 times; the cost of repair is usually 20-40% of that of a new bit, which significantly reduces the overall drilling cost while maintaining performance.
Q4 Will PTAW affect the brazing or matrix properties of PDC drill bits?
A: Reasonable control of process parameters and heat input, together with cooling and thermal insulation measures, can avoid adverse effects on the substrate organization and blade brazing quality. It is generally recommended to complete a large area of fusion cladding before blade assembly, and do only the necessary reinforcement after loading the blade.
